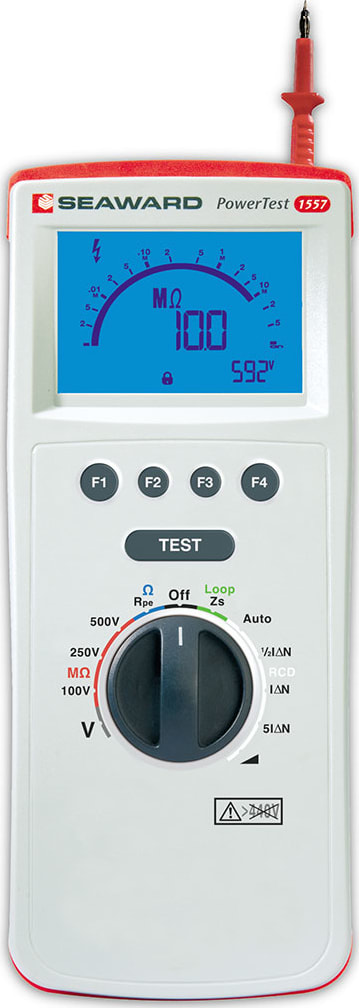

Seaward 1557 Multi Function Installation Tester

Name: Seaward 1557 Multi Function Installation Tester
Brand: Seaward
SKU: Seaward1557
Price: 954.00 USD
Availability: InStock

0 reviews | Catalog: 1557 | Model: Seaward 1557

Compare

Power Plus 1557

Comprehensive testing features
- Comprehensive 17th edition and Part-P testing features allow for a multitude of tests including: Earth Continuity, Insulation (100v, 250v, 500v), Non-trip Loop Impedance, Line Impedance, RCD Trip current, and Voltage/Frequency measurement.
Unique cordless probe
- Makes testing a breeze as it allows you a free hand to hold your tester - therefore you can view your results, as you’re testing.
Non-tripping loop
- Measure loop impedance without tripping RCD’s.
Smallest and lightest in its class
- It fits in the palm of your hand and won’t weigh you down.

View Product Details

List Price: $954.00

In Stock:

View Payment Options

Recommended for you

Seaward 1557 Multi Function Installation Tester

Comprehensive testing features
Unique cordless probe
Non-tripping loop
Smallest and lightest in its class

The PowerTest 1557 is a multi function installation tester with integral probe, allowing the instrument to be held and the results to be read at the same time.

The PowerTest 1557 is also very fast, performing earth loop, line loop, PFC and PSC tests with one press of a button in under 5 seconds. It's lightweight, handheld and battery powered.

(6x) 1.5V cells LR6 type AA alkaline batteries
2 year warranty
Test lead, 1.5M 13A UK plug to Red, Black, Green 4mm shrouded safety plugs
Test lead, set 1.5M Red, Black, Green 4mm shrouded safety plugs to Red, Black, Green 4mm shrouded safety test probes
Red, cordless, 4mm shrouded safety test probe
Alligator Clips: Red, black, green

General Specifications
Earth Continuity
Test Current	200mA
Display Range	0.00ohms - 199ohms
Resolution	0.01ohms maximum
Test Lead Compensation	Null lead resistance 0.00ohms - 10.00ohms
Live Circuit Detection	Test inhibit if >30V detected
Insulation Resistance
Test Voltage	100V, 250V, 500V
Display Range	0.05Mohms – 199Mohms
Resolution	0.01Mohms maximum
Live Circuit Detection	Test inhibit if >30V detected
Loop/Line Impedance
Supply Voltage	195 – 253V/440V, 45Hz – 65Hz
Test Current	15mA (non tripping for RCD protected circuits)
Display Range	0.01ohms - 2000ohms
Resolution	0.01ohms maximum
Loop Impedance	Phase to Earth
Line Impedance	Phase to Neutral/Phase to Phase
PFC/PSC Range	0 – 26kA
RCD Trip Time
Supply Voltage	195 – 253V, 45 – 65Hz
Test Currents	10, 30, 100, 300, 500mA
Trip Time Ranges	0ms – 2000ms at 1/2 Irn 0ms – 300ms at Irn general 0ms – 500ms at Irn selective 0ms – 40ms at 5x Irn
Auto Test	Auto sequence for 1/2 Irn, Irn and 5x Irn at 0° and 180°
RCD Trip Current (Ramp Test)
Supply Voltage	195 – 253V, 45 – 65Hz
Test Currents	10, 30, 100, 300, 500mA
Ramp Current Range	1/2 Irn to 1.1 Irn
Voltage/Frequency Measurement
Display Range	0 – 440V
Resolution	1V
Frequency Measuring Range	45 – 65Hz
Compliance	IEC 61010-1 300V CAT III, EN 61557
Dimensions	260 x 100 x 55
Weight	950g
Power Supply	6 x AA Alkaline (supplied), 6 xx AA NiMH Rechargeable (Optional)

Tech Specs

General Attributes
Warranty	2 YEARS
Product Weight	2 LBS
Country of Origin	United Kingdom
