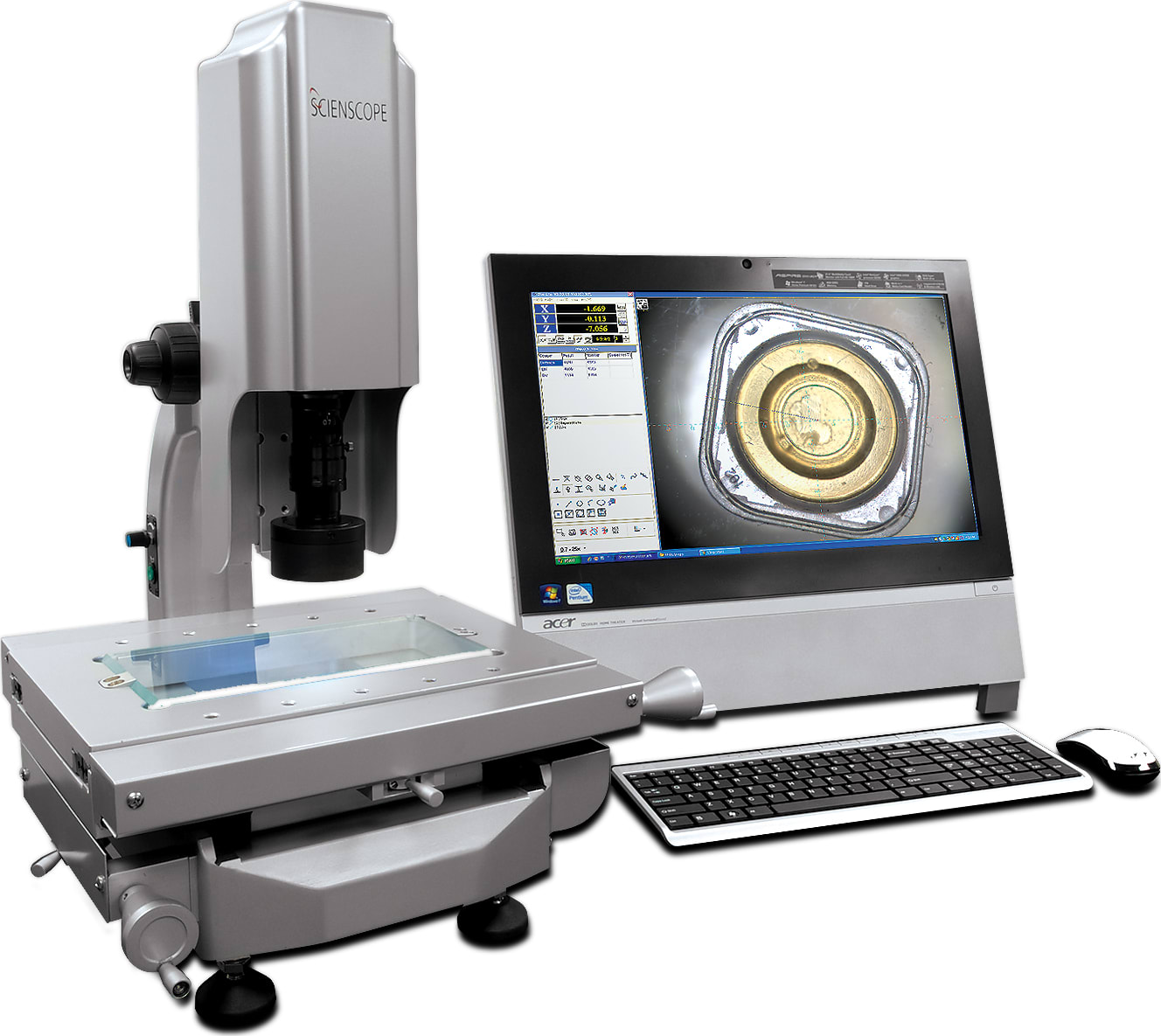

The XT-1000 VMU is a 2-axis, compact, easy to use, cost effective desktop system for small part inspection. It is perfect for engineers, researchers, designers and anyone inspecting small parts. It’s a 2D aluminum based system that quickly and easily measures your parts at an affordable price. For less than 10k you can own a highly accurate 4” by 8” tool makers microscope with the benefit of edge tools. You will also see your parts on a 23” HD monitor.
First time ever! An affordable compact video measurement system sold online at Scienscope-Products.com. The XT-1000 VMU is a 2-axis, compact, easy to use, cost effective desktop system for small part inspection. It is perfect for engineers, researchers, designers, and anyone inspecting small parts. This measurement system is ready to go out of the box for easy setup and use. System includes measurement machine, measurement software, and PC.
Product Highlights:
- Compact Desktop Video CMM
- Economical & Cost Effective
- Easy to use play and play system
- High resolution digital color
- Complete system
OVM-Lite Measurement Software
- Single point edge detection
- Multiple datums
- Image capture
- Edge transition crosshair indicator
- Import & export CAD DXF File, Text, and Excel
- Measures point, line, circle, arc, angle, ellipse, B-splinecurve, center point, distance & more
Applied Fields
- Precision machined parts
- Injection molded parts
- Micro-stampings
- Swiss screw machine parts
- Medical implants
- Dental implants
- Connectors
- Microwave
- Fiber optics
- PCB inspection
- Failure analysis
- Forensics analysis
The VMU Lite is easy to use geometric measurement software with single point edge detection. Measure circle, arc, angle, ellipse, B-spline curve, center point, distance, etc. As well, the system features multiple datums and image capture.
Software Features:
- Program inspection sequence
- Single or multi point edge detection
- Large high resolution image
- Image capture with annotation
- Cross hair indicates edge transition
- Measures point, line, circle, arc, angle, ellipse, B-splinecurv
- Multiple datums
- Quick & easy measurement
- Import & export DXF files
- Large live image screen
- Computer system & software included
Measurement Software Options
OVM provides many powerful vision measuring tools such as intelligent edge detection, box area measuring, elimination of abnormal data and quick edge-finding. Other useful functions include depth measuring with focusing indicator, measurements program, crosshair measuring, DXF-import, and size marking.
|
OVM Lite
The OVM Lite is easy to use geometric measurement software with single point edge detection. Measure circle, arc, angle, ellipse, B-spline curve, center point, distance, etc. As well, the system features multiple datums and image capture.
|
- Single point edge detection
|
- Multiple datums & image capture
|
- Cross hair indicates edge transition
|
|
|
|
|
- Quick and easy measurement
|
- Measures circle, arc, angle, ellipse, B-splinescurv, center point, distance, and more
|
- Auto-point-detecting measurement
The points on the edge can be automatically detected while just clicking the edge areas. Many geometric measurements, for example point, line, circle, arc, angle and complicated graphics etc., can be obtained by this function.
|
- Elimination of abnormal data
The function eliminates any point data that is not consistent with the majority of measured data, and is especially suitable for blind-hole, chamfer and work pieces with burrs, nicks and other flaws.
|
|
This function allows CAD files such as DXF format to be imported into system,
thereby ensuring the dramatic time reduction in part programming and stage navigation.
The XY table can be quickly moved to a desired position via the drawing on the graphic window. And tolerance judgment is immediately obtained by comparison with CAD data.
|
|
The size of measured features can be marked in the image screen directly, thereby avoiding the size marking in CAD data by file export. Thus, the reporting efficiency greatly improves.
|
|
OVM PRO
The OVM PRO is easy to use full feature geometric measurement software with advanced edge detection tools. Advanced tools permit instant click and drag multiple feature measurement. OVM PRO is programmable with sequence and direction prompts that trigger auto edge detection thus eliminating time consuming fine adjustment. As well, the system features multiple datums, image capture, and CAD overlay.
|
- Program inspection sequence
|
|
|
- Multi point edge detection
|
- Multiple datums & image capture
|
- Cross hair indicates edge transition
|
|
|
|
|
- Quick and easy measurement
|
- Measures circle, arc, angle, ellipse, B-splinescurv, center point, distance, and more
|
- Auto-point-detecting measurement The points on the edge can be automatically detected while just clicking the edge areas. Many geometric measurements, for example point, line, circle, arc, angle and complicated graphics etc., can be obtained by this function.
|
- Box area measurement All the measurements of a hole pattern can be accomplished by click and drag box framing. Thus, it can greatly improve the efficiency of multi-data measurement.
|
- Elimination of abnormal data The function eliminates any point data that is not consistent with the majority of measured data, and is especially suitable for blind-hole, chamfer and work pieces with burrs, nicks and other flaws.
|
- Auto- line-detecting With a single mouse click while measuring, the software can detect features automatically.
|
- Statistical Process Control ( SPC) Statistical Process Control is about identifying process changes quickly, but not overreacting to normal part Variation.
|
- Depth measurement Manual Machine version: a powerful focusing indicator can be used to measure depth.
|
- Programmable function OVM software makes part programming easy. All the measuring steps, location, measuring tools and settings are listed and remembered by the system. Then the measuring steps can be saved and recalled for like part measurements as required.
|
- CAD import This function allows CAD files such as DXF format to be imported into system, thereby ensuring the dramatic time reduction in part programming and stage navigation. The XY table can be quickly moved to a desired position via the drawing on the graphic window. And tolerance judgment is immediately obtained by comparison with CAD data.
|
- Size marking The size of measured features can be marked in the image screen directly, thereby avoiding the size marking in CAD data by file export. Thus, the reporting efficiency greatly improves.
|
