Scienscope NZ-PK5-R2E

Name: Scienscope NZ-PK5-R2E
Brand: Scienscope
SKU: ScienscopeNZ-PK5-R2E
Price: 1680.32 USD
Availability: InStock

0 reviews | Model: Scienscope NZ-PK5-R2E

Compare

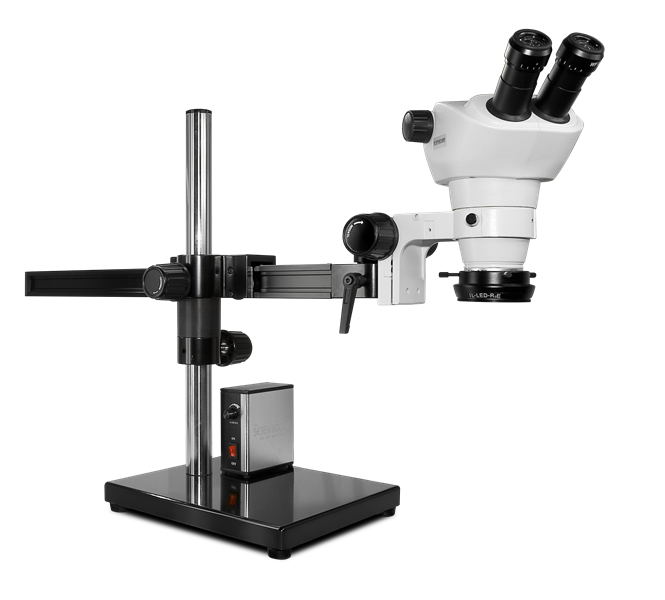

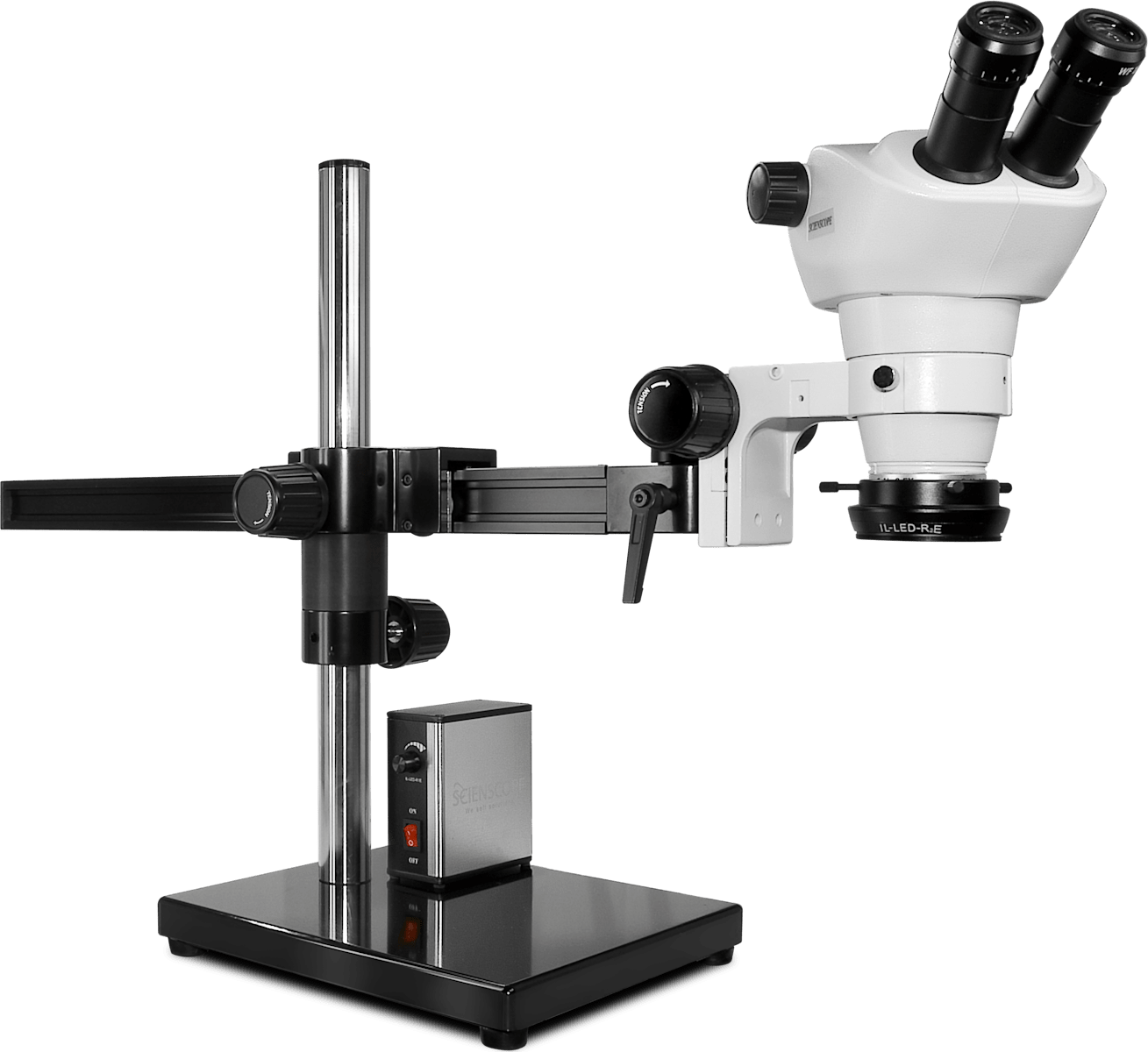

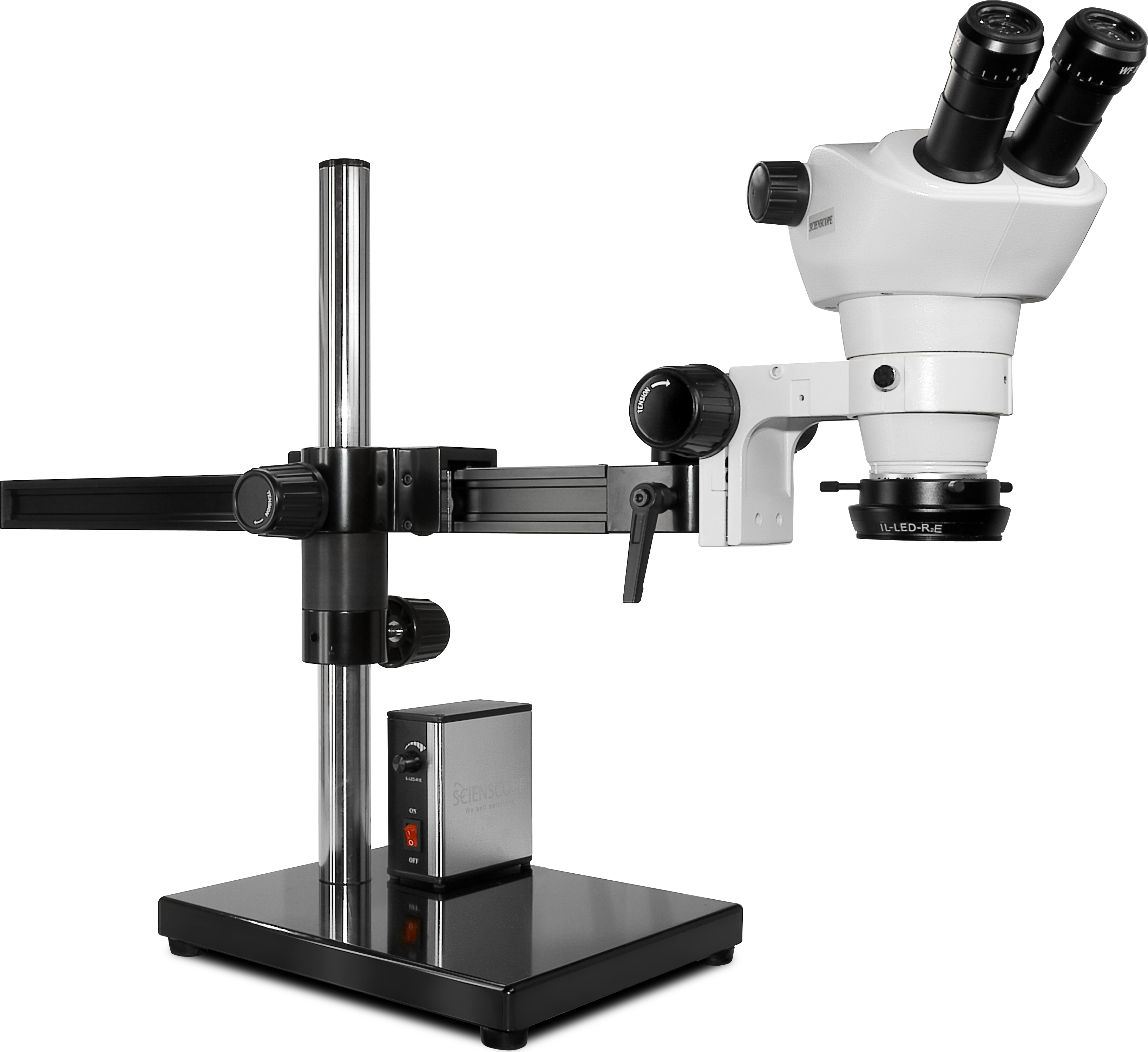

NZ Stereo Zoom Binocular, 10x eyepieces, gliding arm boom stand with 76mm e-arm, 0.5x auxiliary lens, 8 point LED ring light. (IL-LED-R2E)

Complete stereo microscope system
Airtight / anti-mold construction
Binocular head
10x eyepieces
Gliding arm boom stand
0.5x auxiliary lens
8 point LED ring light

View Product Details

List Price: $2,027.04

In Stock:

View Payment Options

Recommended for you

Accessories

Choose a Category

for the Scienscope NZ-PK5-R2E

Scienscope NZ-BD-B2 NZ series binocular body w/ 10x eyepieces; 45 degree inclined...

Catalog: NZ-BD-B2

(0)

In Stock!

Add to Cart

Scienscope NZ-BD-T3 NZ Trinocular body with 10X eyepieces

Catalog: NZ-BD-T3

(0)

In Stock!

Add to Cart

Scienscope NZ/ELZ-88-EC Flat Eyecups (Pair) for NZ and ELZ series

Catalog: NZ/ELZ-88-EC

(0)

In Stock!

Add to Cart

Scienscope NZ/ELZ-LE-W10 10X Eyepieces for NZ and ELZ series microscope (pair)

Catalog: NZ/ELZ-LE-W10

(0)

In Stock!

Add to Cart

Scienscope NZ/ELZ-LE-W15 15X Focusable Eyepieces for NZ and ELZ series microscope (pair)

Catalog: NZ/ELZ-LE-W15

(0)

In Stock!

Add to Cart

Scienscope NZ/ELZ-LE-W20 20X Focusable Eyepieces for NZ and ELZ series microscope (pair)

Catalog: NZ/ELZ-LE-W20

(0)

In Stock!

Add to Cart

Scienscope NZ-CP-04 0.4x Video Adapter for NZ Series Scope

Catalog: NZ-CP-04

(0)

In Stock!

Add to Cart

Scienscope FC-A2-36 Annular ring light guide, 2.3 inch ID, 36 inch fiber optic cable

Catalog: FC-A2-36

(1)

In Stock!

Add to Cart

Scienscope IL-LED-E1 Compact LED Ring light and internal intensity control 110V-220V

Catalog: IL-LED-E1

(1)

In Stock!

Add to Cart

Scienscope IL-LED-R3 high intensity LED ring light with polarizer.

Catalog: IL-LED-R3

(0)

In Stock!

Add to Cart

Scienscope NZ-LA-05 0.5X auxiliary lens for NZ series

Catalog: NZ-LA-05

(0)

In Stock!

Add to Cart

Scienscope NZ-LA-20 2X auxiliary lens for NZ series

Catalog: NZ-LA-20

(0)

In Stock!

Add to Cart

The Scienscope NZ series is a maintenance free product, designed for use in the most harsh and demanding environments. Its airtight and anti-mold construction allows it to be used in both high heat and high humidity, making it safe for use in a lab, factory or even in the field. The NZ microscope body has a zoom range of 0.8x-5x, providing overall magnification of 8x-50x when paired with 10x eyepieces. It also has a working distance of 115mm, giving users a great deal of flexibility.

The NZ series is available with both binocular and trinocular bodies, and is presented in a modular format. This enables users to select only the components that would be best for their application. Users can pick from a wide variety of stands, illumination sources, objectives, and much more. If you do not see the exact configuration you are looking for, please call us at 877-571-7901 for assistance.

The NZ-PK5-R2E package contains the following items:

NZ-BD-B2
- NZ series binocular body
- 10x eyepieces
- 45 degree inclined eyepieces
NZ-LA-05
- 0.5X auxiliary lens for NZ series
SB-AB-SZ
- 76mm Focus Mount / E-Arm
SM-BM2-R0
- Gliding arm boom stand
IL-LED-R2E
- 8 diode LED ring light with power supply; 2.4" ID; 8 Watt

Microscope Body Specifications
Microscope Body Zoom Range:	0.8X - 5X
Zoom Ratio:	1:6.3
Magnification w/ 10X eyepieces:	8X to 50X
Field of View:	27.5mm - 4.4mm
Working Distance	115mm
Eyepieces Inclination:	45 degrees
Dioptric Adjustment::	+/-5 Dual Independent
Interpupillary Adjustment:	52mm - 75mm
Microscope Ring Mount Diameter:	76mm
Available Eyepieces:	10X, 15X and 20X
Available Objective Lens:	0.5X and 2X

NZ Stereo Zoom Binocular Optical Specifications

Objective Lens		Eyepieces
Objective Lens		10X	15X	20X
0.5X	Mag.:	4X - 25X	6X - 37.5X	5X - 50X
	FOV: (mm)	55 - 8.8	40 - 6.4	31.2 - 5.0
	WD: (mm)	211	211	211
1X	Mag.:	8X - 50X	12X - 75X	16X - 100X
	FOV: (mm)	27.5 - 4.4	20- 3.2	15.6 - 2.5
	WD: (mm)	115	287	287
2X	Mag.:	16X - 100X	24X - 150X	32X - 200X
	FOV: (mm)	13.8 - 2.2	10 - 1.6	7.8 - 1.3
	WD: (mm)	43.5	43.5	43.5

Tech Specs

Microscopes/Benchtop and Portable Microscopes Template
Type (Microscopes)	Stereo
Body Style	Binocular
Illumination Type	LED
Magnification max	25 x
Magnification min	4 x
Working Distance	211 MM
