The Scienscope MZ7A series is a micro zoom inspection system, capable of high levels of magnification without distortion or chromatic aberration. The MZ7A features a detented zoom, enabling repeatable magnification settings, as well as a built in internal focus module for FOV measurement, as well as general inspection.
As with all other Scienscope products, the MZ7A is presented in a modular format, allowing users to customize systems for their specific applications. Users can select from a wide variety of stands, illumination sources, cameras and much more. Magnification, working distance and field of view can also be greatly increased through optional couplers and objective lenses. Please see the Specifications tab for more information. Overall magnification ranges from 4.7x to 1295.4x.
To make selection easier, Scienscope has created several packages containing its most popular MZ7A configurations. If you would like to design your own custom system, or if you have any questions, or, please call us at 877-571-7901.

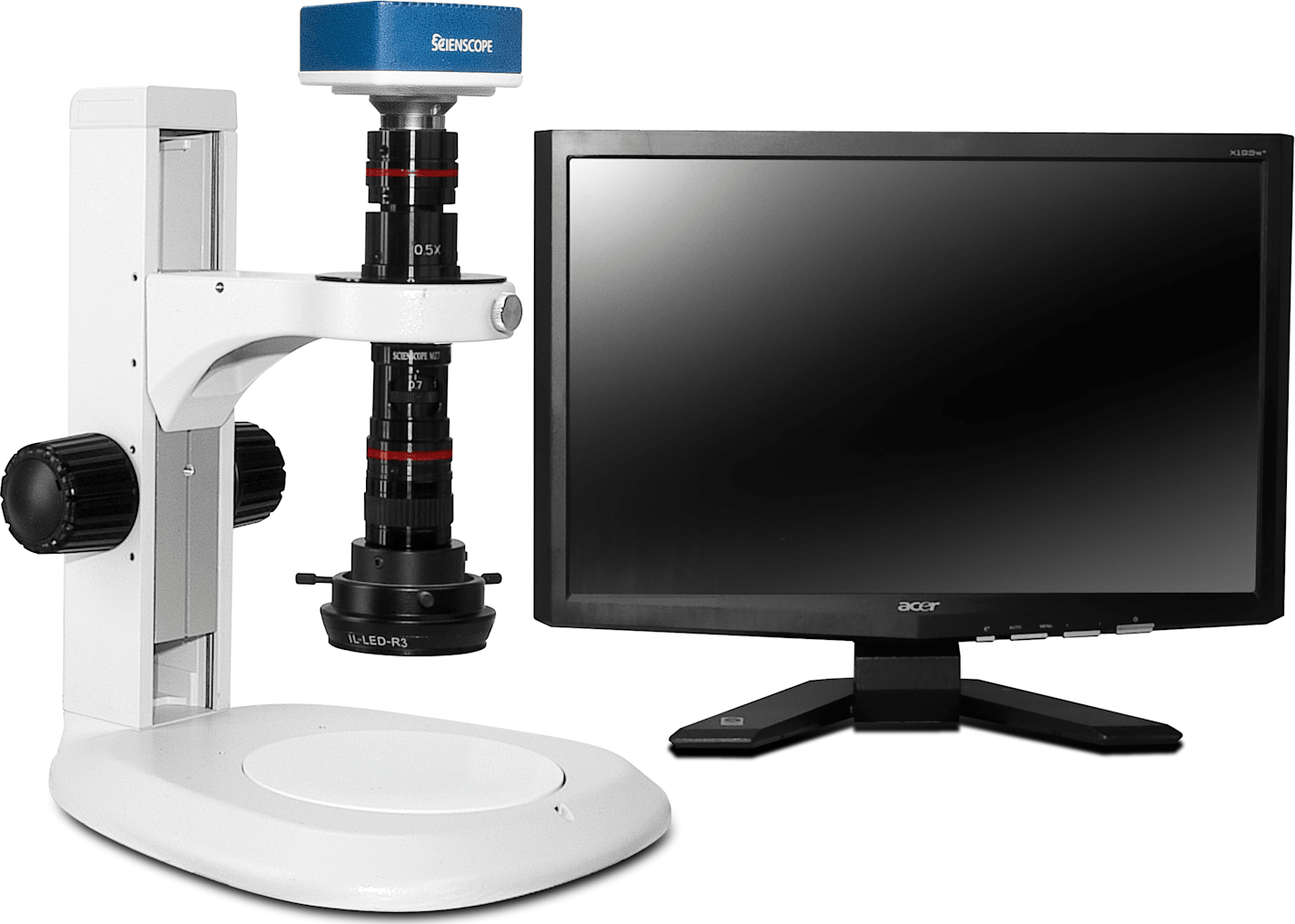

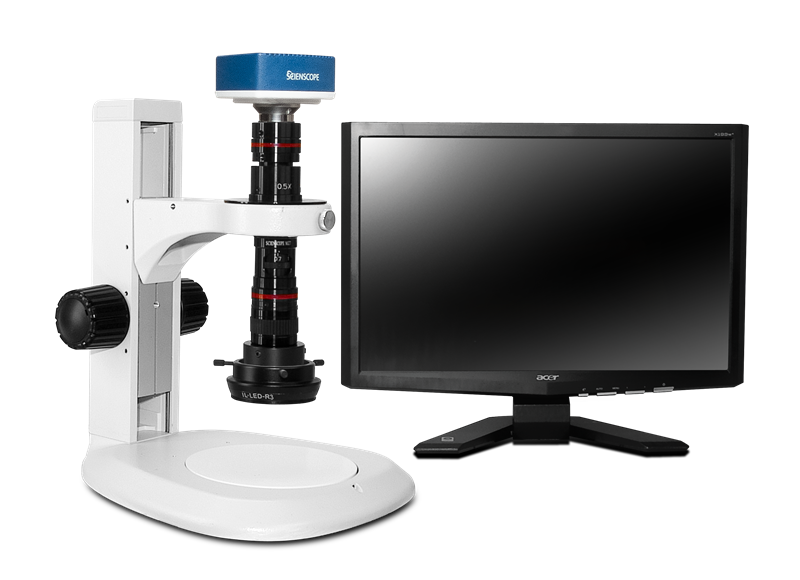

The MZ7A-PK2-R3 package contains the following items:
- MZ7A-ZOOM
- MZ7A High Resolution Micro Zoom Lens. 0.7x to 4.5x zoom range
- MZ7A-CP-05
- 0.5x coupler for high resolution micro zoom lens
- MZ7-10-70
- SB-76-39
- 76mm-39mm adapter for micro zoom lens
- ST-76-LG
- IL-LED-R3
- High intensity LED ring light with polarizer
- CC-LCD-23H
- 23" Color LCD Monitor; HDMI output; 1920 x 1080 resolution
- CC-HDMI-CD2
- 1080p HDMI/USB camera - includes SD card, USB cable, & mouse
