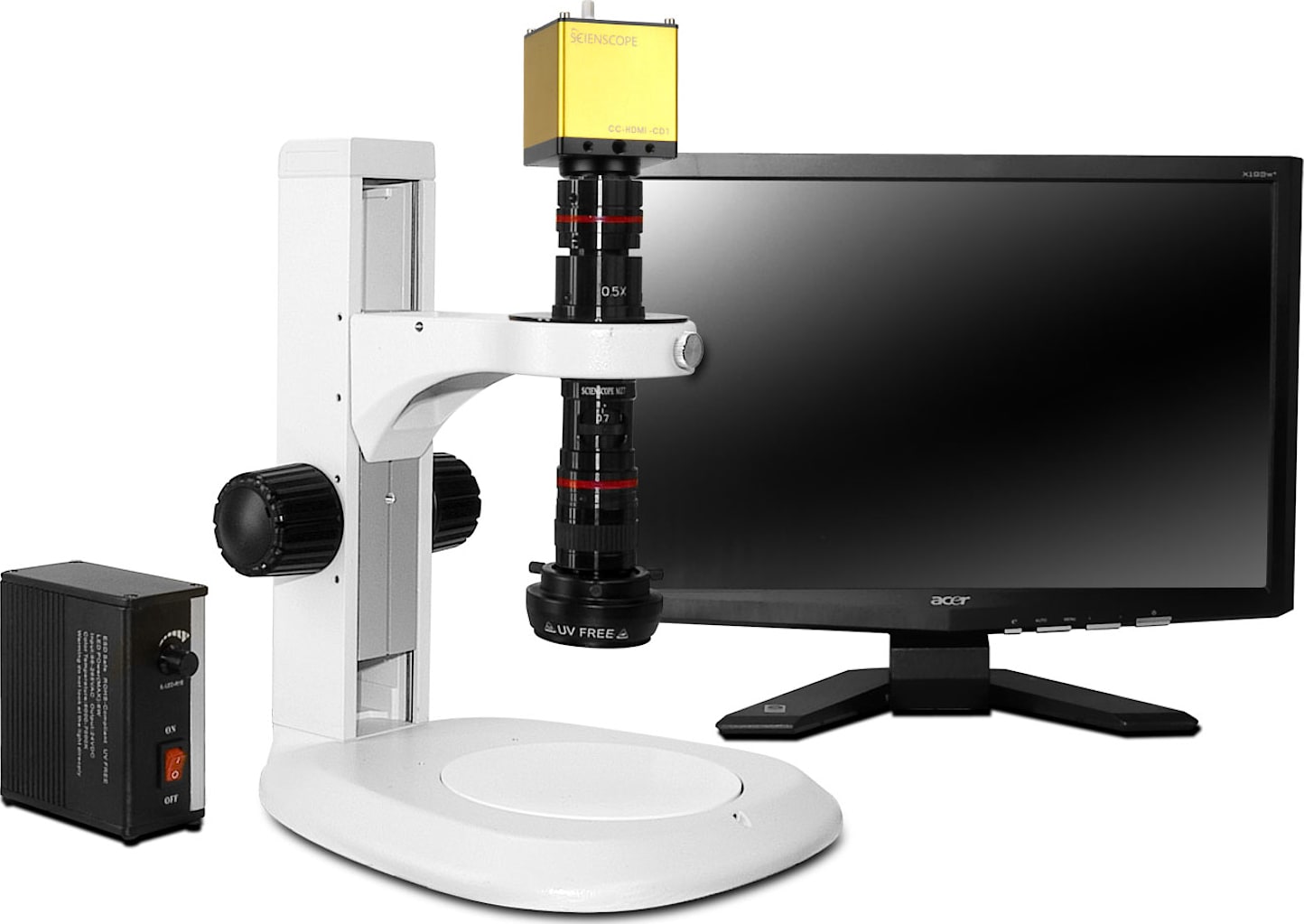

Scienscope MZ7A-PK2-LED-HD Macro Lens with HD Camera - Adjustable LED Light

Name: Scienscope MZ7A-PK2-LED-HD Macro Lens with HD Camera - Adjustable LED Light
Brand: Scienscope
SKU: ScienscopeMZ7A-PK2-LED-HD
Price: 2287.89 USD
Availability: InStock

0 reviews | Model: Scienscope MZ7A-PK2-LED-HD

Compare

MZ7A series micro-zoom video optics (0.5x video coupler, zoom body) on a track stand with 1080p HD Camera w/ HDMI out, 23" HD LCD monitor (1920 x 1080 resolution), LED ring light adapter included.

MZ7A series micro-zoom video optics (0.5x video coupler, zoom body)
Track stand
1080p HD Camera w/ HDMI out
23" HD LCD monitor (1920 x 1080 resolution)
LED ring light adapter included.

View Product Details

List Price: $2,760.00

In Stock:

View Payment Options

Recommended for you

PACKAGE CONTENTS FOR:	SCIENSCOPE MZ7-PK2-LED-HD
Microscope Body / Zoom Lens	Micro Zoom Lens
Stand	Track Stand
Focus Mount
Focus Mount Adapter	E-ARM Adapter For Micro Zoom Lens
C-Mount Camera	1080p HD Camera w/ integrated image capture
Illuminator	LED Adjustable Ring Light With Power Supply
Light Guide
Ring Adapter	Ring Light Adapter For Micro Zoom Lens
Eyepieces
Auxiliary Lens
Video Coupler	0.5X Video Coupler
Monitor	23" HDMI Widescreen LCD Color Monitor

Auxiliary Lens		Video Couplers
Auxiliary Lens		0.5X	0.67X	1X	2X
0.25X	Mag: FOV (mm): WD (mm):	6.1X - 39.3X 91.4 - 14.2 302	8.2X - 52.6X 68.2-10.6 302	12.2X - 78.6X 45.7-7.1 302	24.4X - 157.2X 22.9-3.6 302
0.5X	Mag: FOV (mm): WD (mm):	12.2X - 78.6X 45.7-7.1 176	16.4X - 105.3X 34.1-5.3 176	24.4X - 157.2X 22.8-3.6 176	48.9X - 314.3X 11.4-1.7 176
0.75X	Mag: FOV (mm): WD (mm):	18.3X - 117.9X 30.5-4.5 117	24.6X - 157.9X 22.7-3.5 117	36.7X - 235.7X 15.2-2.4 117	73.3X - 471.5X 7.6-1.2 117
1X	Mag: FOV (mm): WD (mm):	24.4X - 157.2X 22.8-3.6 96	32.8X - 210.6X 17.1-2.7 96	48.9X - 314.3X 11.4-1.8 96	97.8X - 628.7X 57.-0.9 96
2X	Mag: FOV (mm): WD (mm):	48.9X - 314.3X 11.4-1.8 35	65.5X - 421.2X 8.5-1.3 35	97.8X - 628.7X 5.7-0.9 35	195.6X - 1257.3X 2.8-0.4 35

* Packaged Specifications; Mag. = Magnification, FOV = Field of View, WD = Working Distance

Tech Specs

Microscopes/Benchtop and Portable Microscopes Template
Illumination Type	LED
Application (Microscopes)	Industrial/Research
Field of View (microscope)	45.7-7.1 mm
Magnification max	78.6 x
Magnification min	12.2 x
Working Distance	176 MM
Stand Type	Pole
Camera Included	Yes
Camera Type	Other Camera Type HD
Test Equipment General Attributes
Unique Features	LED Adjustable Ring Light With Power Supply Ring Light Adapter For Micro Zoom Lens
Warranty	5 YEARS
Warranty Details	Scienscope offers a 5-Year warranty on all its optical products; including microscopes, auxiliary lenses, video couplers, video lenses, and digital camera adapters. All other Scienscope products are warranted for a 1-Year period; including stands, focus mounts, light sources, light guides, cameras, and monitors; bulbs are not warranted. Scienscope has the right to replace or exchange, at its option, any and all products sent back for warranty service. Warranty service will be performed by Scienscope when a Returned Merchandise Authorization number is obtained. The defective equipment must be returned, postpaid, to Scienscope with the RMA number in the “ATTENTION TO” section. Products determined20by Scienscope to be abused, misused, or used in a negligent manner are not covered under this warranty. Damage resulting from the attempted repairs by unauthorized parties or damage due to accident will not be covered.
Shipping Weight	47 LBS
Country of Origin	United States
