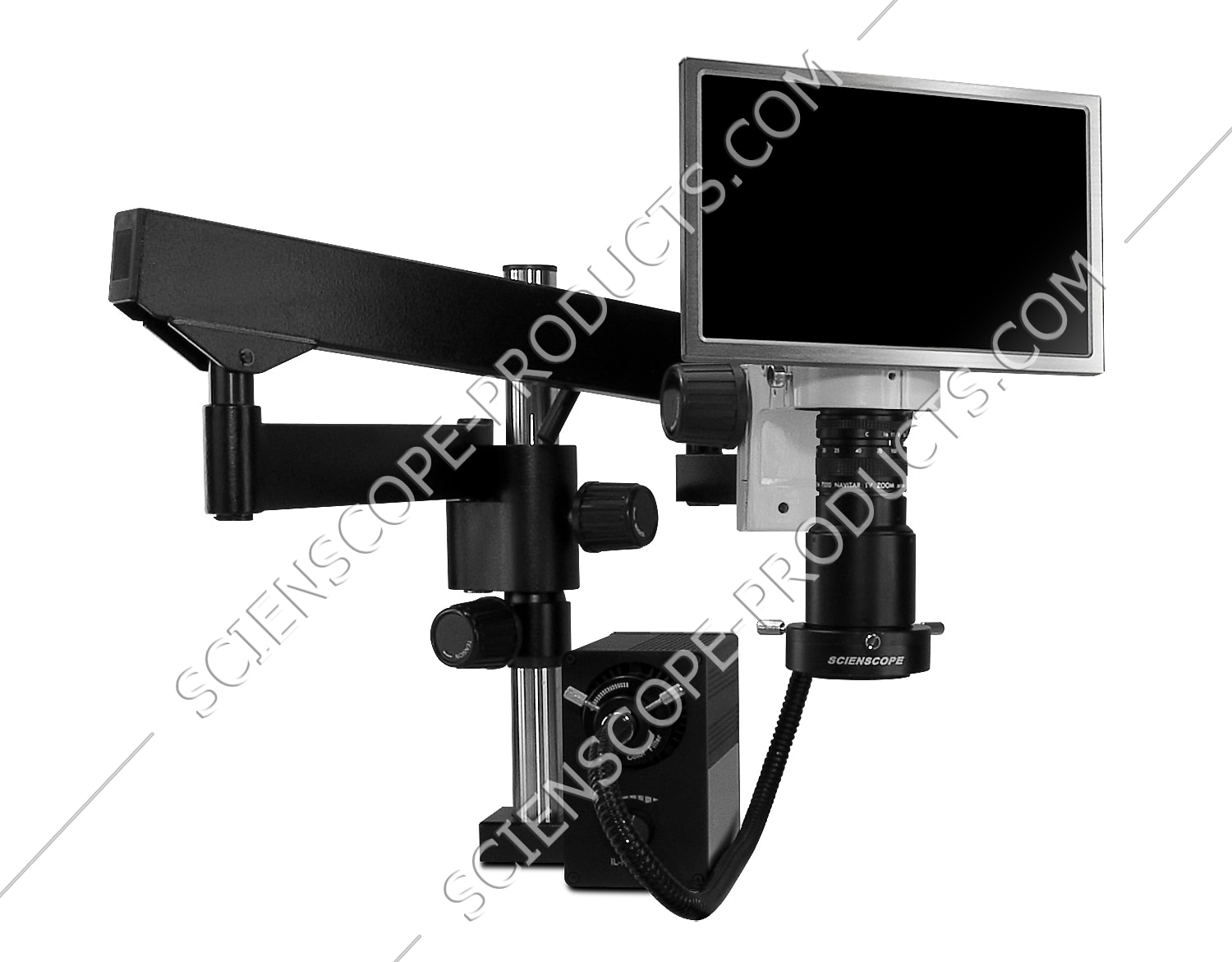

Scienscope MAC2-PK3-AN Macro Zoom Lens w/ HD Camera & Montior Combo on Heavy Duty C-lamp Articulating Arm Stand with Fiber Optic Right Light

Name: Scienscope MAC2-PK3-AN Macro Zoom Lens w/ HD Camera & Montior Combo on Heavy Duty C-lamp Articulating Arm Stand with Fiber Optic Right Light
Brand: Scienscope
SKU: ScienscopeMAC2-PK3-AN
Price: 2893.84 USD
Availability: InStock

0 reviews | Model: Scienscope MAC2-PK3-AN

Images (10)

Compare

MACRO video zoom optics (up to 35x magnification with 8" working distance) on heavy duty articulating arm with vertical post and clamp, 720p HD camera and 10" LCD monitor combination with LED illuminator and fiber optic annular ring light guide and polarizer.

MACRO video zoom optics (up to 35x magnification with 8" working distance)
Heavy duty articulating arm
Vertical post and clamp
720p HD camera
10" LCD monitor combination
LED illuminator
Fiber optic annular ring light guide
Polarizer.

View Product Details

List Price: $3,490.98

In Stock:

View Payment Options

Recommended for you

PACKAGE CONTENTS FOR:	SCIENSCOPE MAC2-PK3-AN
Microscope Body / Zoom Lens	Macro Zoom Lens
Stand	Heavy Duty C-lamp Articulating Arm
Focus Mount	E-ARM
Focus Mount Adapter	E-ARM Adapter For MAC Lens
C-Mount Camera	720p HD Camera & 10" HD Monitor Combo
Illuminator	LEDFiber Optic Illuminator
Light Guide	Fiber Optic Annular Ring Light
Polarizer	Polarizer

MACRO Video Lens Specifications
Focal Length (mm)	8.5 - 90
Aperture	f/2.5 - Closed
Zoom Ratio	6:1 Parfocal
Iris Control	Manual
Focus Zoom Control	Manual
Video Mount	C-Mount
Camera Format	1/2" or smaller

With "Close-Up" Lens Specifications:
Working Distance	Field of View (mm)	Magnification Range
7"	124 - 12.26	9.9X - 61.9X
8"	154.66 - 15.2	6.2X - 36.7X
9"	185.33 - 18.26	5.1X - 30.5X
10"	210.66 - 20.8	4.4X - 26.1X
11"	234.66 - 23.2	4X - 23X
12"	284 - 28	3.7X - 21.5X

Without "Close-Up" Lens Specifications:
Working Distance	Field of View (mm)	Magnification Range
24"	406.66 - 34.32	1.9X - 11X
36"	506.66 - 49.33	1.2X - 5X
48"	760 - 74.66	0.9X - 5.3X

Tech Specs

Microscopes/Benchtop and Portable Microscopes Template
Illumination Type	Fiber Optic, LED
Application (Microscopes)	Industrial/Research
Field of View (microscope)	760 - 12.26
Magnification max	61.9 x
Magnification min	0.9 x
Zoom Ratio	6:1
Working Distance	48 IN (25.40 MM)
Stand Type	Pole
Camera Included	Yes
Camera Type	Other Camera Type HD
Test Equipment General Attributes
Unique Features	Heavy Duty C-lamp Articulating Arm Fiber Optic Annular Ring Light
Warranty	5 YEARS
Warranty Details	Scienscope offers a 5-Year warranty on all its optical products; including microscopes, auxiliary lenses, video couplers, video lenses, and digital camera adapters. All other Scienscope products are warranted for a 1-Year period; including stands, focus mounts, light sources, light guides, cameras, and monitors; bulbs are not warranted. Scienscope has the right to replace or exchange, at its option, any and all products sent back for warranty service. Warranty service will be performed by Scienscope when a Returned Merchandise Authorization number is obtained. The defective equipment must be returned, postpaid, to Scienscope with the RMA number in the “ATTENTION TO” section. Products determined20by Scienscope to be abused, misused, or used in a negligent manner are not covered under this warranty. Damage resulting from the attempted repairs by unauthorized parties or damage due to accident will not be covered.
Shipping Weight	60 LBS
Country of Origin	United States
