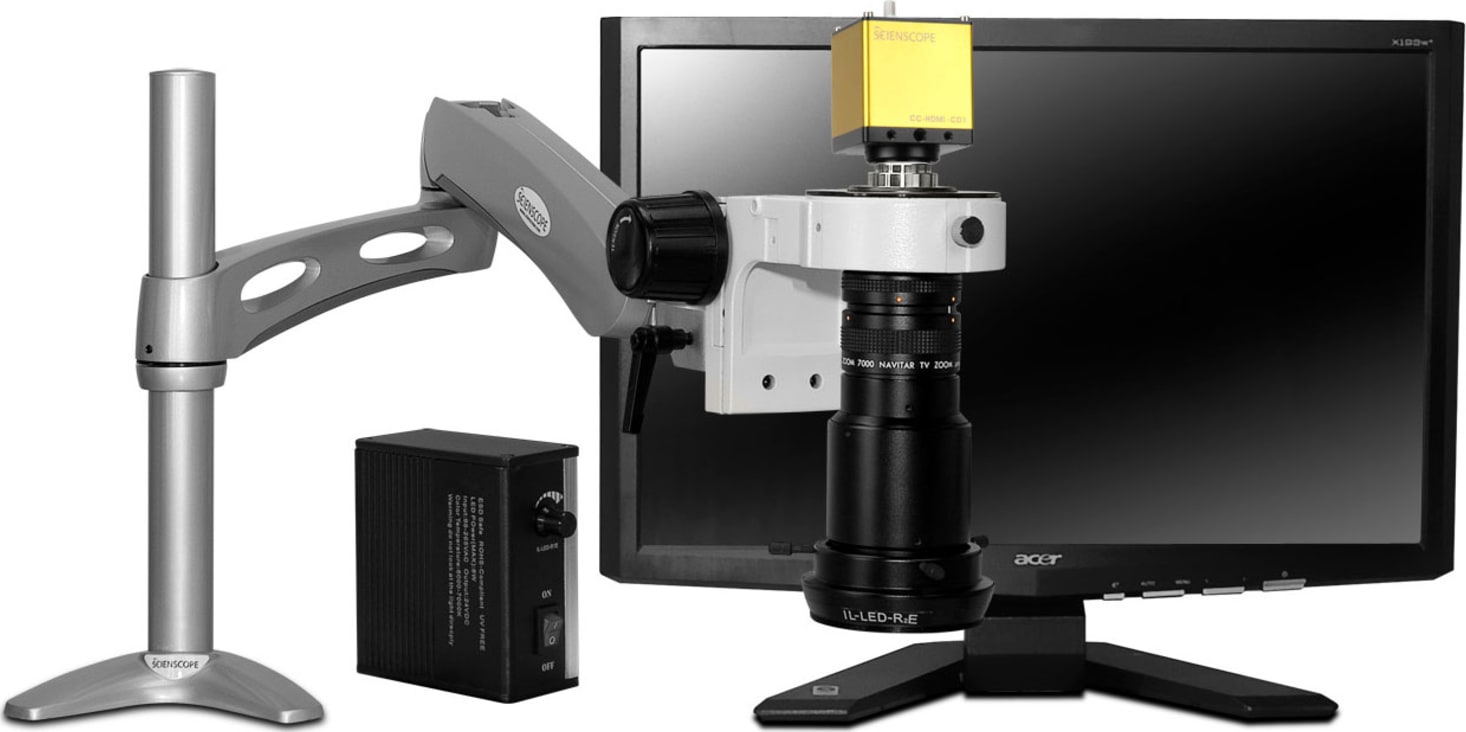

Scienscope MAC-PK3-LED-HD Macro Lens w/ Adjustable LED Light & HD Camera

Name: Scienscope MAC-PK3-LED-HD Macro Lens w/ Adjustable LED Light & HD Camera
Brand: Scienscope
SKU: ScienscopeMAC-PK3-LED-HD
Price: 2392.34 USD
Availability: InStock

0 reviews | Model: Scienscope MAC-PK3-LED-HD

Compare

MACRO video zoom optics (up to 65x magnification with 8" working distance) on an articulating arm with1080p HD Camera w/ HDMI out, 23" HD LCD monitor (1920 x 1080 resolution), and LED ring light.

MACRO video zoom optics (up to 65x magnification with 8" working distance)
Articulating arm
1080p HD Camera w/ HDMI out
23" HD LCD monitor (1920 x 1080 resolution)
LED ring light.

View Product Details

List Price: $2,886.00

In Stock:

View Payment Options

Recommended for you

PACKAGE CONTENTS FOR:	SCIENSCOPE MAC-PK3-LED-HD
Microscope Body / Zoom Lens	Macro Zoom Lens
Stand	CF Articulating Arm
Focus Mount	E-ARM
Focus Mount Adapter	E-ARM Adapter For MAC Lens
C-Mount Camera	1080p HD Camera w/ integrated image capture
Illuminator	LED Adjustable Ring Light With Power Supply
Light Guide
Ring Adapter
Eyepieces
Auxiliary Lens
Video Coupler
Monitor	23" HDMI Widescreen LCD Color Monitor

MACRO Video Lens Specifications
Focal Length (mm)	8.5 - 90
Aperture	f/2.5 - Closed
Zoom Ratio	6:1 Parfocal
Iris Control	Manual
Focus Zoom Control	Manual
Video Mount	C-Mount
Camera Format	1/2" or smaller

With "Close-Up" Lens Specifications:
Working Distance	Field of View (mm)	Magnification Range
7"	124 - 12.26	9.9X - 61.9X
8"	154.66 - 15.2	6.2X - 36.7X
9"	185.33 - 18.26	5.1X - 30.5X
10"	210.66 - 20.8	4.4X - 26.1X
11"	234.66 - 23.2	4X - 23X
12"	284 - 28	3.7X - 21.5X

Without "Close-Up" Lens Specifications:
Working Distance	Field of View (mm)	Magnification Range
24"	406.66 - 34.32	1.9X - 11X
36"	506.66 - 49.33	1.2X - 5X
48"	760 - 74.66	0.9X - 5.3X

Tech Specs

Microscopes/Benchtop and Portable Microscopes Template
Type (Microscopes)	Stereo
Illumination Type	LED
Application (Microscopes)	Industrial/Research
Magnification max	61.9 x
Magnification min	0.9 x
Zoom Ratio	6:1
Working Distance	48 MM
Stand Type	Pole
Camera Included	Yes
Camera Type	Other Camera Type HD
Test Equipment General Attributes
Unique Features	CF Articulating Arm LED Adjustable Ring Light With Power Supply
Warranty	5 YEARS
Warranty Details	Scienscope offers a 5-Year warranty on all its optical products; including microscopes, auxiliary lenses, video couplers, video lenses, and digital camera adapters. All other Scienscope products are warranted for a 1-Year period; including stands, focus mounts, light sources, light guides, cameras, and monitors; bulbs are not warranted. Scienscope has the right to replace or exchange, at its option, any and all products sent back for warranty service. Warranty service will be performed by Scienscope when a Returned Merchandise Authorization number is obtained. The defective equipment must be returned, postpaid, to Scienscope with the RMA number in the “ATTENTION TO” section. Products determined20by Scienscope to be abused, misused, or used in a negligent manner are not covered under this warranty. Damage resulting from the attempted repairs by unauthorized parties or damage due to accident will not be covered.
Shipping Weight	46 LBS
Country of Origin	United States
