• Extended post stand (18")
• Diffused LED dome light
• Click here for a full parts breakdown of available systems
• Includes Auto-Cam auto focus camera

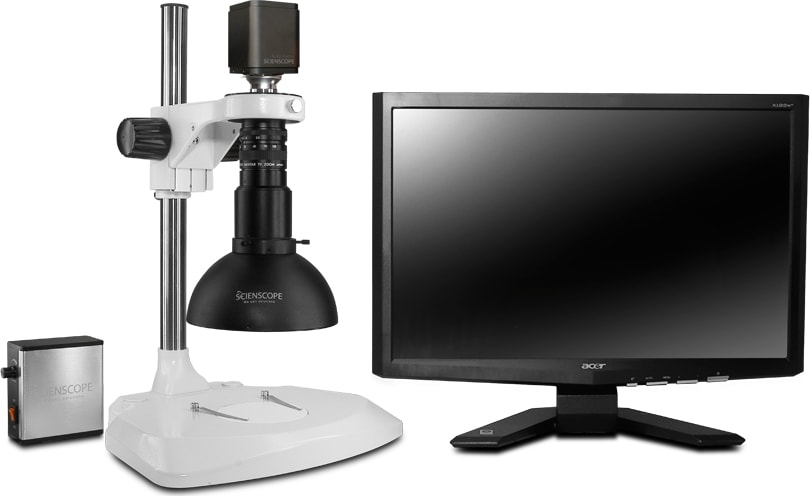

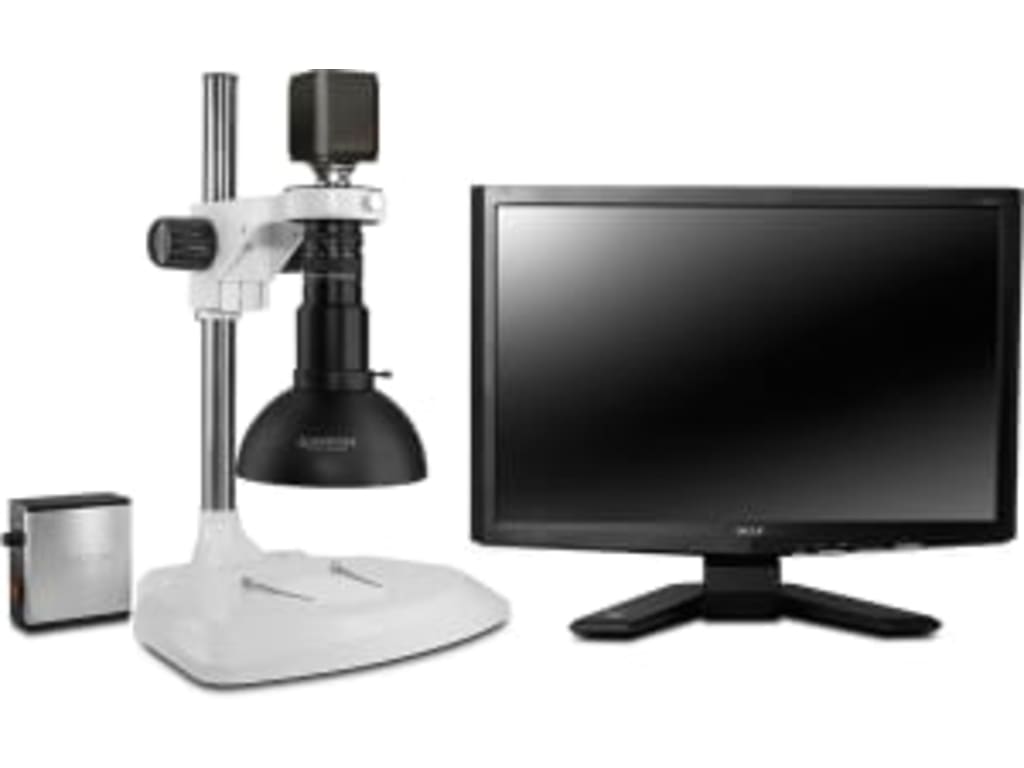

Scienscope's industry standard Macro video/digital inspection systems now feature the powerful and convenient Auto-Cam (CC-HDMI-AF2). Built around the powerful Scienscope macro lens, these systems are now even more versatile to use thanks to fast auto focus technology. The CC-HDMI-AF2 enables users to work more efficiently and helps speed up inspection routines.

• Full Toolbar w/ Camera Controls
• 1080p Resolution
• HDMI 60FPS and USB 30FPS
• 2.8µ x 2.8µ pixel size
• 1080P/Sony IMX236(C) Sensor Sized at 1/2.8" (5.38x3.02)
• DC 12V/2A Adaptor
• Compatible Display: 19"+
• Weight of 0.47 kg (1.0lbs)
• Exposure of 0.1ms`999ms
• Dimensions of 78mm(3.07") x 70mm (2.76") x 92mm(3.62")

The Scienscope CC-97-LN Macro Zoom lens with a close up lens is perfect for a detailed inspection view. The Macro Zoom lens is ideal for quality assurance, biomedical imaging, or assembly applications where an easy to view, sharp and true to life magnified image of your product can mean the difference between a shippable product or a manufacturing failure. The Macro Zoom has exceptional depth of field and field of view, as well as all adjustments at your fingertips - zoom, focus, iris control. The Scienscope Macro Zoom lens is designed for a large field of views, a wide range of working distances and applications requiring a large depth of field. Working distances range from 7 to 12" with a close up / cover lens, and from 11" to infinity without.

Electronics

Macro System with Auto-Focus makes electronics inspection an even more comfortable and efficient process. Now easily move and manipulate your circuit board and never lose focus! Document your work! Images or video can be captured with one click of the mouse and stored to a removable SD card. For high volumes of documentation use WiFi to connect capture images with your computer.

Keep a Sharp Focus, no matter what the application! Whether you are inspecting catheters, stents, pacemakers, or surgical implements, medical devices requires 100% inspection with the greatest possible scrutiny. Auto-Focus makes it even easier to inspect, document, and compare with confidence. Now you cab hand-hold your parts while the camera focuses for you!

With perhaps the widest variety of applications, the aerospace and defense industries, can benefit the most with autofocus technology. Form fan blades to fasteners, electronics, and hydraulics, the auto-focus systems from Scienscope can make unusual surfaces and geometries an easy inspection process. Now you can place your focus on quality rather that set-up and procedure with the new Auto-Cam from Scienscope

The Auto-Cam includes a full suite of integrated software tools to make your inspection and documentation process simple. Auto-Cam includes image and video capture, as well as split screen viewing, camera control and an auto focus menu.

Take full control of your image with this easy-to-use menu with slider bars. Turn on auto white balance or auto exposure to improve your inspection. Includes, exposure, color, white balance, sharpness and many more.

Use the built-in video caliper to perform comparative measurements or use them as a quick and easy gauging tool!

Quickly and easily compare a previously captured images to a alive image. Excellent when used a pass/fail tool or for training. Use the system to capture images of defects that you operators to avoid and compare.
