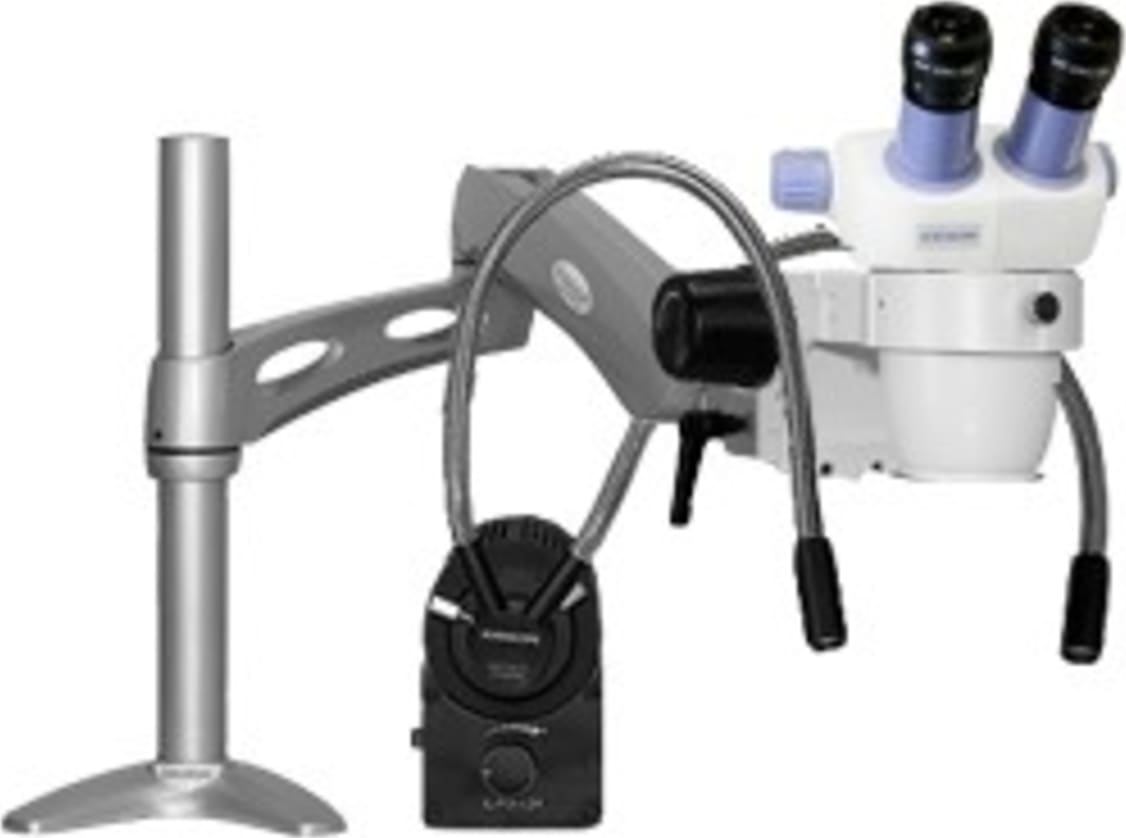

Scienscope ELZ-PK3-DPL ELZ Stereo Zoom Binocular on CF Articulating Arm w/ Fiber Optic Dual Pipe Light

Name: Scienscope ELZ-PK3-DPL ELZ Stereo Zoom Binocular on CF Articulating Arm w/ Fiber Optic Dual Pipe Light
Brand: Scienscope
SKU: ScienscopeELZ-PK3-DPL
Price: 1688.21 USD
Availability: InStock

0 reviews | Model: Scienscope ELZ-PK3-DPL

Compare

ELZ Stereo Zoom Binocular, 10x Eyepieces, Articulating arm with 76mm focus rack, 0.5x auxiliary lens, LED illuminator, and Fiber optic dual pipe light guides.

ELZ Stereo Zoom Binocular
10x Eyepieces, Articulating arm with 76mm focus rack
0.5x auxiliary lens
LED illuminator
Fiber optic dual pipe light guides.

View Product Details

List Price: $1,875.80

In Stock:

View Payment Options

Recommended for you

PACKAGE CONTENTS FOR:	SCIENSCOPE ELZ-PK3-DPL
Microscope Body / Zoom Lens	ELZ Stereo Zoom Binocular Microscope Body
Stand	CF Articulating Arm
Focus Mount	E-Arm
Focus Mount Adapter
C-Mount Camera
Illuminator	LED Fiber Optic Illuminator
Light Guide	Fiber Optic Dual Pipe Light
Ring Adapter
Eyepieces	10X Eyepieces
Auxiliary Lens	0.5X Objective Lens
Video Coupler
Monitor

Auxiliary Lens		Eyepieces
Auxiliary Lens		10X	15X	20X
0.5X	Mag.: FOV: (mm) WD: (mm)	3.5x - 15x 66.9 - 15 177	5.3x - 22.5x 46 - 11 177	7x - 30x 36 - 8.3 177
1X	Mag.: FOV: (mm) WD: (mm)	7x - 30x 31.4 - 7.3 100	105x - 45x :22.9 - 5.3 100	14x - 60x 17.9 - 4.1 100
2X	Mag.: FOV: (mm) WD: (mm)	14x - 60x 16 - 3.7 26	21x - 90x 11.4 - 8 26	28x - 120x 9 - 6 26mm

*= Packaged Specifications,Mag. = Magnification, FOV = Field of View, WD = Working Distance

Tech Specs

Microscopes/Benchtop and Portable Microscopes Template
Type (Microscopes)	Stereo
Body Style	Binocular
Illumination Type	Fiber Optic, LED
Application (Microscopes)	Industrial/Research
Eyepiece Magnification	10
Objective Lens Zoom Max	0.5 x
Magnification max	15 x
Magnification min	3.5 x
Stand Type	Pole
Test Equipment General Attributes
Unique Features	Fiber Optic Annular Ring Light Fiber Optic Dual Pipe Light
Warranty	5 YEARS
Warranty Details	Scienscope offers a 5-Year warranty on all its optical products; including microscopes, auxiliary lenses, video couplers, video lenses, and digital camera adapters. All other Scienscope products are warranted for a 1-Year period; including stands, focus mounts, light sources, light guides, cameras, and monitors; bulbs are not warranted. Scienscope has the right to replace or exchange, at its option, any and all products sent back for warranty service. Warranty service will be performed by Scienscope when a Returned Merchandise Authorization number is obtained. The defective equipment must be returned, postpaid, to Scienscope with the RMA number in the “ATTENTION TO” section. Products determined20by Scienscope to be abused, misused, or used in a negligent manner are not covered under this warranty. Damage resulting from the attempted repairs by unauthorized parties or damage due to accident will not be covered.
Shipping Weight	33 LBS
Country of Origin	United States
