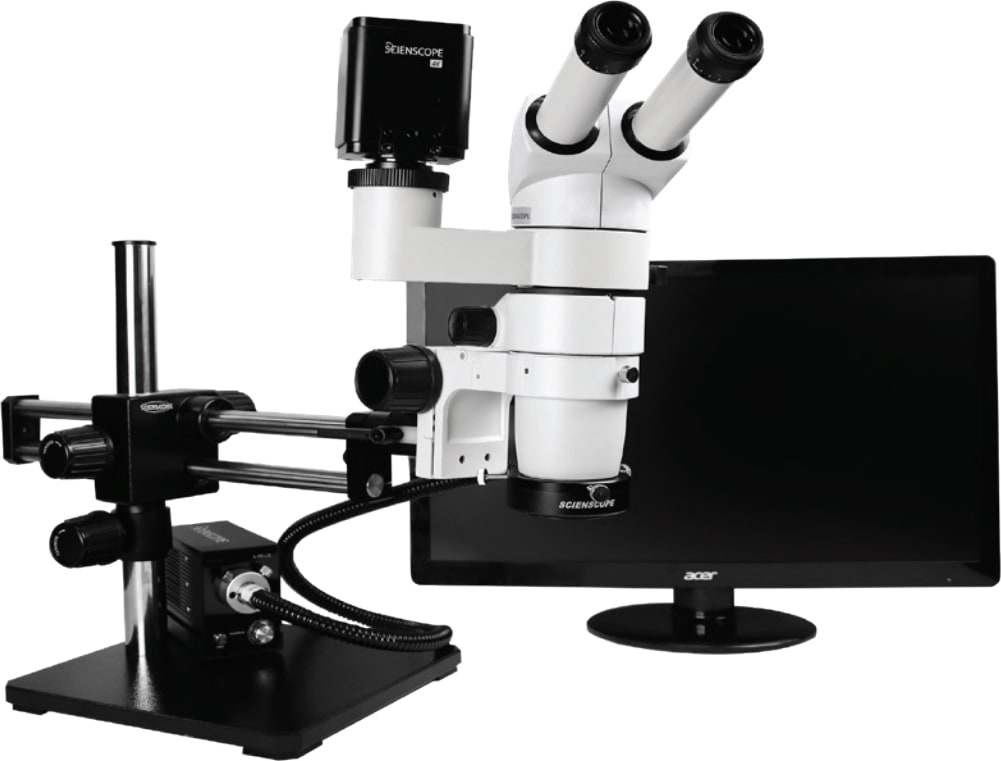

Scienscope CMO-PK12-R3E - E-Series 20° Binocular Head and High Intensity LED Ring Light

The E-Series offers higher magnification than standard models, enabling high-resolution observation of small features. Improved aberration correction provides bright and sharp images through the entire field. The parallel optics allows ergonomic accessories and observation attachments to be used in a wide range of applications.

In addition to essential, optional accessories, the same high level of accessories used with superior models is also available for this model. These include trinocular tubes, and slim-type LED diascopic illumination stands. These allow various microscope configurations to suit numerous routine inspections and a range of research and development applications.

Optimum User Comfort

Eyepieces tilt and rotate to adjust for operator height. Eyepieces rotate 180° with three inches of travel. The inclination is adjustable from 0 to 45.

Less Operator Fatigue

Eyepiece inclination of 20° allows you to observe without leaning forward, which reduces fatigue during long hours of operation.

SmartCam-Ultra AF

The SmartCam-Ultra AF from Scienscope is our most advanced 4k resolution camera. It features a vivid 4K image to a live monitor (HDMI) or 8.2 Megapixel image via USB 3.0 and WiFi to a computer. Includes a host of onboard image processing and measurement tools accessible using a mouse connected to the camera via its onboard software. Capture images to SD card, USB Flash drive, USB 3.0, and WiFi.

Measure anything using the onboard field of view measuring tools, DXF overlay, or multi-line generator. Export your measurement data and images with measured objects.
