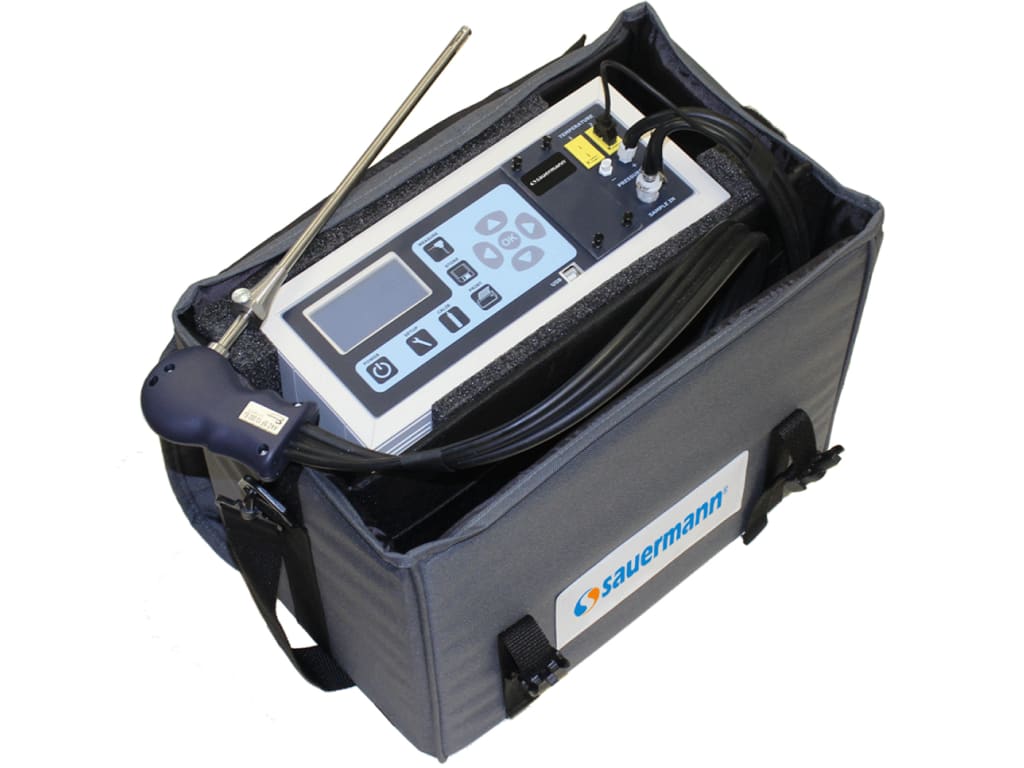

Sauermann E8500P-OC - Industrial Portable Combustion Gas Analyzer with O2, CO Sensors

Name: Sauermann E8500P-OC - Industrial Portable Combustion Gas Analyzer with O2, CO Sensors
Brand: Sauermann
SKU: E InstrumentsE8500P-OC
Price: 6895.42 USD
Availability: InStock

0 reviews | Catalog: 26901 | Model: Sauermann E8500P-OC

E Instruments E8500P - Industrial Portable Combustion Gas Analyzer

Compare

E8500 Plus Standard packing includes: - O2 (0-25%), and CO (0-8000ppm) - CO Dilution Auto-Range up to 20,000 ppm - Stack Gas and Ambient Air Temperature Measurements - Draft and Differential Pressure Measurements - Efficiency, Loss, Excess Air, and CO2 Calculations - Built-In Thermoelectic Chiller with Automatic Condensate Removal - Rechargeable Battery Pack with AC Charger - Internal Memory for Data Storage (2000 Tests) - PC Software Package with BlueTooth Adapter and USB Cable - Real-Time Data Logging Software - Wireless Communications with PC and other Windows compatible devices - Protective Carrying Case - Ability to Upgrade to 9 Total Gas Sensors - Instruction Manual - Calibration Certificate *PLEASE PICK PROBES, SENSORS, AND ACCESSORIES BELOW: Additional Optional Gas Sensors:

O2 measurement range: 0-25%
CO measurement: 0-8000ppm
CO dilution auto-range: 0-20000ppm
Built-in thermoelectric chiller with automatic condensate removal
Draft and differential pressure, stack gas, and ambient temperature measurements
Configurable to measure up to (9) gas sensors - including low-range NO, NO2, and SO2
Calculated values for efficiency, excess air, and CO2%
Software for real-time data logging, graphing, and reporting
Internal memory for data storage

View Product Details

List Price: $7,326.39

Your Price: $6,895.42

Sign-in for EDU Pricing!

In Stock:

View Payment Options

Request Quote

Recommended for you

Sauermann E8500P-OC Accessories

Choose a Category

for the Sauermann E8500P-OC

Sauermann E852010 Rechargeable Battery Pack

Catalog: 26926

(0)

In Stock!

Add to Cart

Sauermann E852020 AC Charger, 100-240VAC/50-60Hz with 12V Output

Catalog: 27153

(0)

In Stock!

Add to Cart

Sauermann E852135 USB Communications Cable

Catalog: 26930

(0)

In Stock!

Add to Cart

Sauermann E858140 Protective Carrying Case with Shoulder Strap

Catalog: E858140

(0)

In Stock!

Add to Cart

Sauermann E851015 NDIR Bench (CO2, HC, High CO)

Catalog: 26910

(0)

In Stock!

Add to Cart

Sauermann E854015 Gas Sampling Pump

Catalog: 26931

(0)

In Stock!

Add to Cart

Sauermann E854025 Condensate Peristaltic Pump

Catalog: 26932

(0)

In Stock!

Add to Cart

Sauermann E854040 Dilution Pump

Catalog: 26933

(0)

In Stock!

Add to Cart

Sauermann E854045 Dilution Solenoid Valve

Catalog: 26934

(0)

In Stock!

Add to Cart

Sauermann E856080 Thermo-Electric Chiller Assembly

Catalog: 26936

(0)

In Stock!

Add to Cart

Sauermann AACSF13 12 inch (300mm) Probe, 1470F (800C) max, with 10'' (3m) Dual Hose

Catalog: 26834

(0)

In Stock!

Add to Cart

Sauermann AD527-W04 SO2 Gas Sensor (not calibrated)

Catalog: 27020

(0)

In Stock!

Add to Cart

Sauermann AG526-W00 NO2 Gas Sensor (not calibrated)

Catalog: 27019

(0)

In Stock!

Add to Cart

Sauermann BB610033 36 inch (900mm) Pitot Tube for Gas Velocity Measurements

Catalog: 26917

(0)

In Stock!

Add to Cart

Sauermann E852050-Q Main PCB Motherboard

Catalog: 26928

(0)

In Stock!

Add to Cart

Sauermann E852075 Keyboard with connector cable for E8500P-OC Gas Analyzer

Catalog: 26929

(0)

In Stock!

Add to Cart

Sauermann E852230 Display Screen

Catalog: 26940

(0)

In Stock!

Add to Cart

Sauermann E854075 Damper Assembly for Pressure/Flow

Catalog: 26935

(0)

In Stock!

Add to Cart

Sauermann E856090 Condensate Catch Pot

Catalog: 26937

(0)

In Stock!

Add to Cart

Sauermann E858025 Plastic Enclosure Assembly

Catalog: 26938

(0)

In Stock!

Add to Cart

Sauermann SINT1 Sintered Filter for End of Probe (compatible with 40 inch and 60 inch...

Catalog: 26922

(0)

In Stock!

Add to Cart

Sauermann E854465 Hose and Fitting Kit for On-Site Calibration

Catalog: 26924

(0)

In Stock!

Add to Cart

Sauermann Z12117EIN-7 SCU - Sample Conditioning Unit for High Moisture and/or Low NOx/SO2

Catalog: 27163

(0)

In Stock!

Add to Cart

Sauermann EE900P BlueTooth Wireless Remote Printer with rechargable battery

Catalog: EE900P

(0)

In Stock!

Add to Cart

Sauermann AAA32-240 O2 Gas Sensor without board (ALL models)

Catalog: 27132

(0)

In Stock!

Add to Cart

Sauermann AC206-800 H2S Gas Sensor (not calibrated)

Catalog: 27144

(0)

In Stock!

Add to Cart

Sauermann AQ VOC-200 VOC Gas Sensor (not calibrated)

Catalog: 27022

(0)

In Stock!

Add to Cart

Sauermann E8500P-OC

O2 measurement range: 0-25%
CO measurement: 0-8000ppm
CO dilution auto-range: 0-20000ppm

Industrial Portable Combustion Gas Analyzer with O2, CO Sensors

Portable Industrial Combustion Flue Gas and Emissions Analyzer for Boiler, Engine, Furnace, and Other Combustion Applications

Accurate, reliable, robust, and fast, the Sauermann E8500P Combustion Analyzer is one of the most powerful and advanced portable emissions analyzers on the market. The E8500P Combustion Analyzer is a complete portable tool for emissions level monitoring of boilers, engines, and other combustion equipment. The E8500 emissions monitoring device can boast as many as 9 gas sensors, detecting one of the widest spectra of gases: O2, CO, NO, NO2, SO2, CO2, CxHy, High CO, VOCs, and H2S.

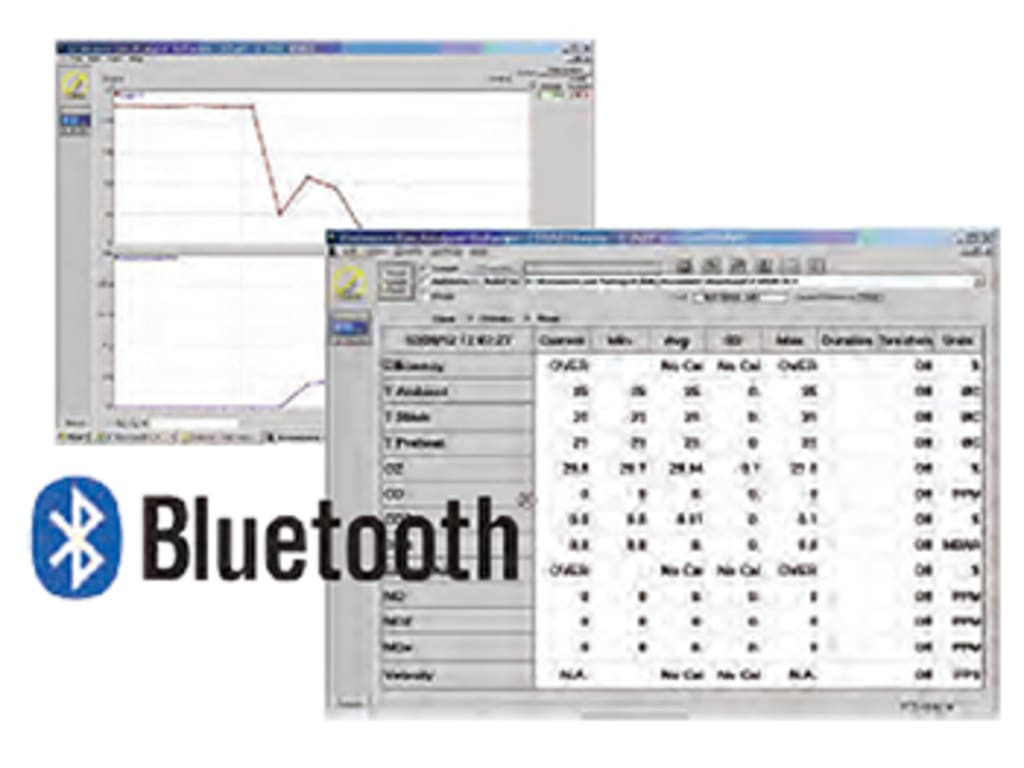

Real-Time Software with Data Logging

The updated EGAS software package includes the ability to save & graph data in real-time in the field with a laptop, or in a laboratory with a PC. It also allows the user to automatically log data for an exact number of tests for a specified time period. Communications between the E8500 PLUS & a computer are established either by wireless Bluetooth communications or USB cable. Data from the EGAS software can be exported to other spreadsheet programs for more user flexibility to create detailed emissions reports.

Built-In Thermoelectric Chiller with Auto Condensate Drain

The internal thermoelectric chiller efficiently & quickly remove the water vapor from the flue gas sample to prevent combustion gases from bubbling from the gas phase into the condensate. The built-in condensate drain pump automatically pumps the accumulated water out through the bottom of the unit for greater convenience.

Draft, Pressure, & Velocity

An internal pressure sensor allows the analyzer to measure both pressure & stack draft. With two (2) pressure inputs, differential pressure can also be measured. Gas velocity can be measured using the differential pressure & an optional pitot tube.

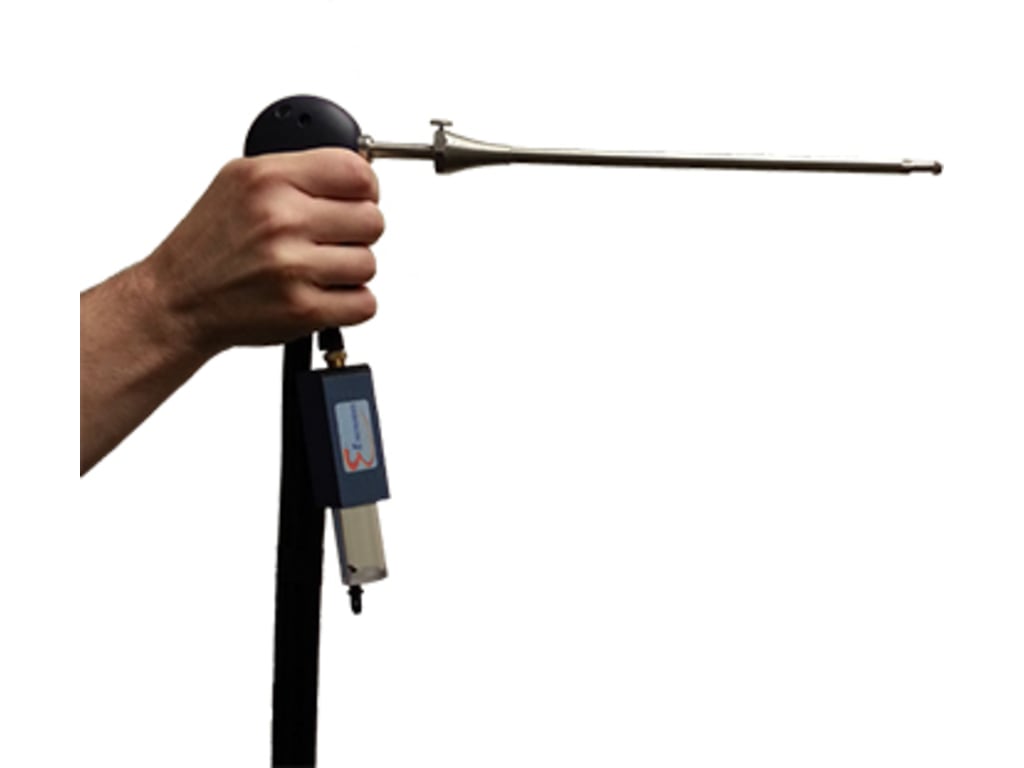

Sample Conditioning Unit

The Sample Conditioning Unit is mounted directly at the sampling probe exit, where excess moisture rapidly condenses & separates from the gas sample. This minimizes contact of the gases with moisture, which could potentially affect NOx & SO2 measurements.

Easy Filter Replacement

The E8500 PLUS has a newly designed user interface that includes an easily accessible filter compartment for quick and simple inspection & replacement of filters in the field.

Sauermann E8500P-OC General Specifications
Parameter	Sensor	Range	Resolution	Accuracy
O₂	Electrochemical	0 - 25 %	0.1 %	±0.1 % vol
CO (H₂ compensated w/ built-in NOx filter)	Electrochemical	0 - 8000 ppm	1 ppm	±8 ppm <300 ppm ±4 % rdg up to 2000 ppm ±10 % rdg for >2000 ppm
CO Auto range	Electrochemical	0 - 20,000 ppm 1	1 ppm	±10 % rdg
CO	NDIR	0 - 15.00%	0.01 %	±3 % rdg
CO₂	Calculated	0 - 99.9 %	0.1 %	-
CO₂	NDIR	0 - 50.0 %	0.1 %	±3 % rdg <20 % ±5 % rdg >20 %
NO	Electrochemical	0 - 5000 ppm	1 ppm	±5 ppm <125 ppm ±4 % rdg for <5000 ppm
NO₂	Electrochemical	0 - 1000 ppm	1 ppm	±5 ppm <125 ppm ±4 % rdg for <1000 ppm
Low NO and/or Low NO₂	Electrochemical	0 - 100.0 ppm	0.1 ppm	±1.5 ppm <50.0 ppm ±4 % rdg for <100.0 ppm
NOx	Calculated	0 - 5000 ppm	1 ppm	-
SO₂	Electrochemical	0 - 5000 ppm	1 ppm	±5 ppm <125 ppm ±4 % rdg for <5000 ppm
Low SO₂	Electrochemical	0 - 100.0 ppm	0.1 ppm	±1.5 ppm <50.0 ppm ±4 % rdg for <100.0 ppm
CxHy (HC)	NDIR	0 - 3.00 %	0.01 %	±3 % rdg + 0.01 %
H₂S	Electrochemical	0 - 500 ppm	1 ppm	±5 ppm <125 ppm ±4 % <500 ppm
VOC	PID	0 - 200 ppm	1 ppm	±10 % rdg + 1 ppm
Tair	Pt100	14.0 to 212.0 °F -10 to 99.9 °C	1 °F 1 °C	±3 °F ±2 °C
Tgas	Tc K	-4 to 1920 °F -20 to 1050 °C	1 °F 1 °C	±5 °F ±3 °C
ΔT	Calculated	-4 to 1920 °F -20 to 1050 °C	1 °F 1 °C	-
Pressure / Draft	Bridge	±40.0 in H2 O ±100 mbar	0.1 in H₂O	±1 % rdg
Excess Air	Calculated	1.00 - infinity	0.01	-
Gas Velocity	Calculated	0 - 330 ft/s 0 - 99.9 m/s	0.1 f/s 0.1 m/s	-
Efficiency	Calculated	1 - 99.9 %	0.1 %	-

Combustion Analyzer Template
Includes NO sensor	No
Includes NO2 sensor	No
Includes printer	No
Includes SO2 sensor	No
Digital device	Yes
Test Equipment General Attributes
Product Weight	11 LBS
Shipping Weight	12.65 LBS
