Sauermann E500-1 - Basic Combustion Gas Analyzer Kit with O2, CO, CO2, No Bluetooth, No Apps

Name: Sauermann E500-1 - Basic Combustion Gas Analyzer Kit with O2, CO, CO2, No Bluetooth, No Apps
Brand: Sauermann
SKU: E InstrumentsE500-1
Price: 770.82 USD
Availability: InStock
Rating: 5.00 (1 reviews)

5 (1 Review) | Catalog: 26893 | Model: Sauermann E500-1

E Instruments E500 - Basic Combustion Analyzer

Compare

E500 - LITE = Combustion Analyzer with O2, CO, CO2, Combustion Efficiency, Heat Losses, Draft, Pressure, Excess Air, Temperature. NO Bluetooth, No Smartphone Apps

O2 measurement range: 0-25%
CO measurement range: 0-4000ppm
CO2 measurement range: 0-99.9%
No Bluetooth and no Smartphone Apps
Six tools-in-one multifunction combustion analyzer
Field-replaceable, pre-calibrated sensors
Combustion efficiency, heat losses, draft, temperature, and pressure measurements
Built-in pressure manometer (single)
True high-efficiency calculations for all condensing systems

View Product Details

List Price: $819.00

In Stock:

View Payment Options

Recommended for you

Accessories

Choose a Category

General Accessories

for the Sauermann E500-1

Sauermann AACTA03 Water Trap with filter for Si-CA 030/130/230, includes hose and...

Catalog: 27556

(1)

In Stock!

Add to Cart

Sauermann E500-1

O2 measurement range: 0-25%
CO measurement range: 0-4000ppm
CO2 measurement range: 0-99.9%
No Bluetooth and no Smartphone Apps

Basic Combustion Gas Analyzer Kit with O2, CO, CO2, No Bluetooth, No Apps

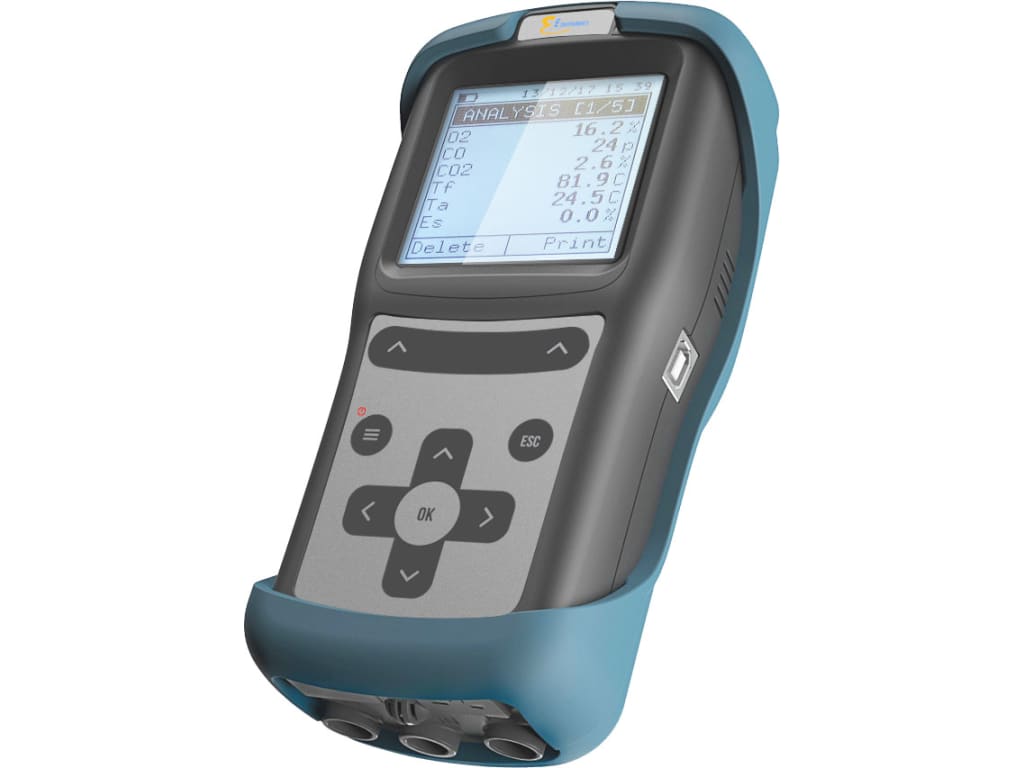

The E500 Basic Combustion Flue Gas Analyzer Kit is a handheld multifunctional Six-Tools-In-One combustion analyzer. Includes Oxygen (O2), Carbon Monoxide (CO), and Carbon Dioxide (CO2) measurement gas sensor as well as efficiency, excess air, draft, pressure, and temperature readings. Designed to maximize your combustion efficiency, easily set up, install, and properly service residential boilers and burners. PAPERLESS-GO GREEN MODEL using the Smartphone Apps for Android or iOS. Accurate, compact, rugged, easy to use.

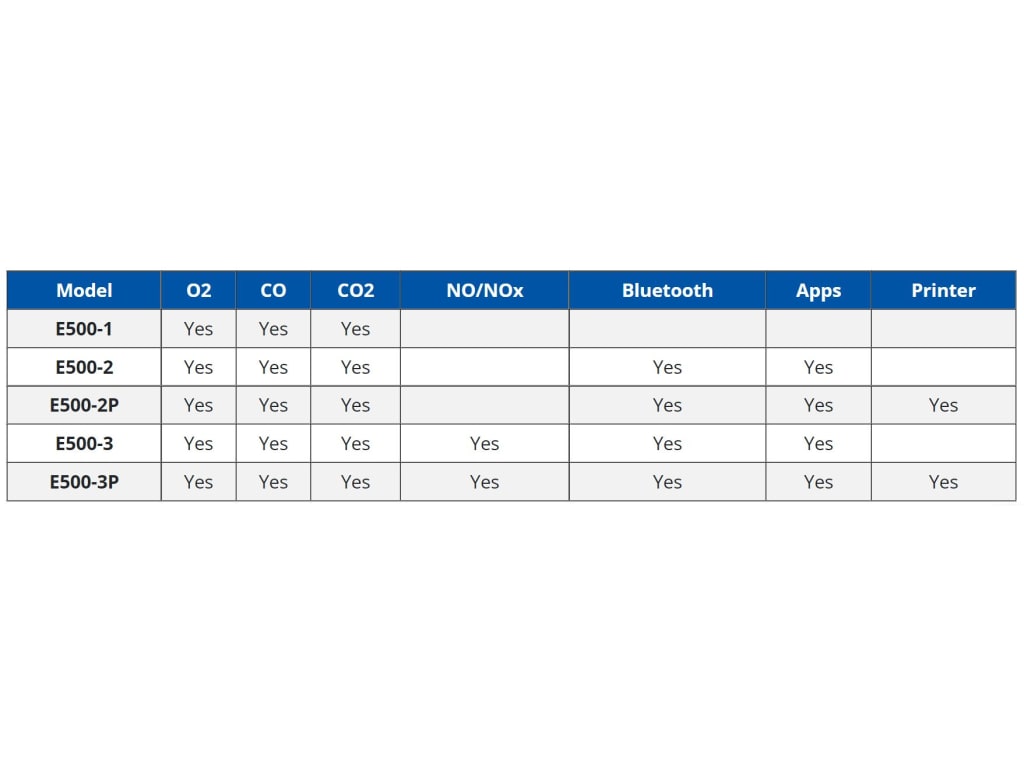

Below is a brief breakdown of the models in this series:

Sauermann E500-1 General Specifications
Parameter	Sensor	Range	Resolution	Accuracy
O₂	Electrochemical	0 - 25 %	0.1 %	±0.2 % vol
CO H2 Compensated w/ Built-In NOx Filter	Electrochemical	0 - 4000 ppm	1 ppm	±10 ppm <400 ppm ±5 % rdg up to 2000 ppm ±10 % rdg for >2000 ppm
CO₂	Calculated	0 - 99.9%	0.1 %	-
NO	Electrochemical	0 - 5000 ppm	1 ppm	±5 ppm <100 ppm ±5 % rdg up to 1000 ppm ±10 % rdg for >5000 ppm
NOx	Calculated	0 - 5000 ppm	1 ppm	-
Tair	Tc K	-4 to 248 °F -20 to 120 °C	0.1 °F 0.1 °C	±1 °F ±1 °C
Tgas	Tc K	-4 to 1472 °F -20 to 800 °C	0.1 °F 0.1 °C	±2 °F ±2 °C
Differential temperature	Calculated	-4 to 1472 °F -20 to 800 °C	0.1 °F 0.1 °C	-
Pressure/Draft	Semiconductor	-4 to 40 inH2 O -10 to 100 mbar	0.001 inH2 O 0.01 mbar	±1 % rdg.
Excess air	Calculated	0 - 850 %	1 %	-
Efficiency	Calculated	0 - 100 %	0.1 %	-
Warranty	2 years: analyzer + sensors

Tech Specs

Combustion Analyzer Template
Includes NO sensor	No
Includes NO2 sensor	No
Includes printer	No
Includes SO2 sensor	No
Digital device	Yes
Test Equipment General Attributes
Warranty	2 YEARS
Shipping Weight	2 LBS
Country of Origin	United States

Start typing your question...

Answers (1) - Asked by Anonymous

I have this question too (8)

The O2 sensor will typically need to be replaced after two years. The O2 sensor is always on and exposed, so it will need to be replaced more often. The CO sensor will last at least two years. However, this is driven more by usage than time. If you use it every day, it should last about two years. If you use it once a week or less frequently, you could get three or four years out of the sensor.

I found this helpful (0)

Inaccurate? (0)

Answered by Anonymous

Answers (1) - Asked by Anonymous

I have this question too (9)

Yes, the sensors can be replaced in the field. You can replace one or both as you need.

I found this helpful (0)

Inaccurate? (0)

Answered by Anonymous

5

Out of 5

Average Customer Review

Share your thoughts with other customers

Write a Review

Displaying 1 review

Most Helpful First | Newest First

Recommend to a Friend

Nice compact easy to use Combustion Analyzer

5.0

Nice compact easy to use Combustion Analyzer Pros: One meter combustion Analyzer Manometer built in Easy to use & Compact Nice Case Cons: Very Long wait time over 3 weeks - Tequipment should inform you of expected wait delay and offer option to change or cancel. However the order was locked in once placed. No listing of spare parts or accessories spare sensors so availability and pricing unknown compared to other meters. So when it comes time to replace a sensor it may be more cost effective to just replace the meter due to wait time or price and keep meter for manometer functions only. Manual very limited more like a quick reference guide,

Verified Purchase Anonymous on Mar 04, 2019
