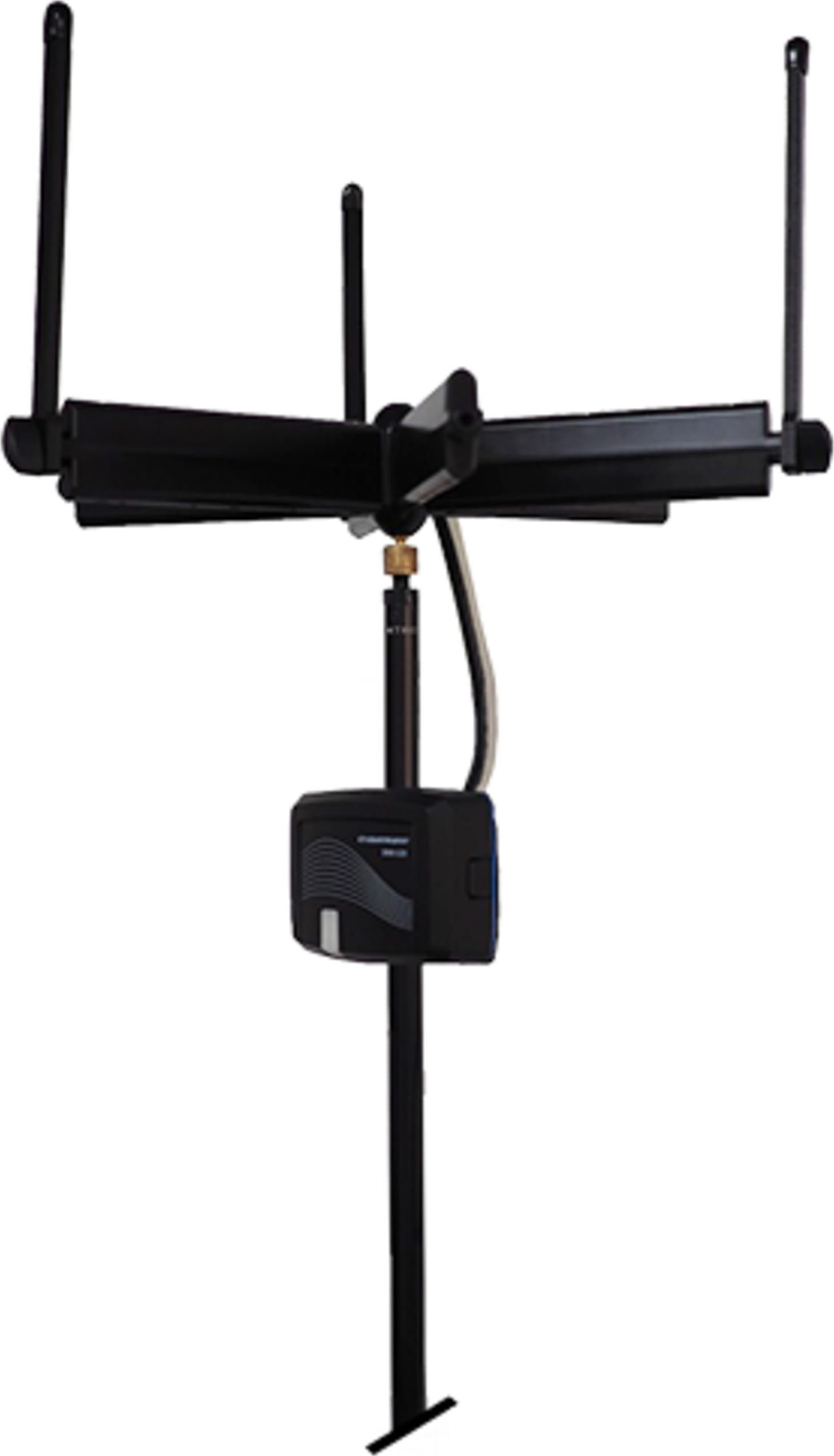

Sauermann DBM-VMG - Velocity Measuring Grid Kit for DBM620

Name: Sauermann DBM-VMG - Velocity Measuring Grid Kit for DBM620
Brand: Sauermann
SKU: E InstrumentsDBM-VMG
Price: 513.16 USD
Availability: InStock

0 reviews | Catalog: 26455 | Model: Sauermann DBM-VMG

Compare

Velocity measuring grid kit for DBM620 type DBM-VMG. Air velocity measurement on blowing ceiling. Supplied with articulated telescopic pole, positioning spacers (5, 15 and 25cm), 2x1m of silicone tube and transport backpack.

Designed for air velocity measurements on any types of large ceiling vent or diffuse
Calculates the average air velocity from 24 points
Differential pressure sensor
The grid is attached to a telescopic (maximum length is 2.05 m) and articulated pole (from 0 to 90°).
Struts of 3 different lengths
Custom carrying case

View Product Details

List Price: $545.24

Your Price: $513.16

Sign-in for EDU Pricing!

In Stock:

View Payment Options

Request Quote

Items in This Series



Product	Sauermann DBM-VMG Velocity measuring grid kit for DBM620 type DBM-VMG. Air velocity measur ...	Sauermann DBMT-4 Telescopic tripod with casters type DBM T-4. Height from 1.20 to 4m. Supp ...	Sauermann HO625 Measuring hood for DBM620 type HO-625. Sizes 1020x1020mm (3.35'x3.35'). Su ...	Sauermann HO624 Measuring hood for DBM620 type HO-624. Sizes 420x1520mm (1.38'x5'). Suppli ...	Sauermann HO623 Measuring hood for DBM620 type HO-623. Sizes 720x1320mm (2.36'x4.33'). Sup ...	Sauermann HO622 Measuring hood for DBM620 type HO-622. Sizes 720x720mm (2.36'x2.36'). Supp ...	Sauermann HO621 Measuring hood for DBM620 type HO-621 with airflow straightener for swirli ...
Price
In Stock
Compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare

Recommended for you

Sauermann DBM-VMG

Measuring range from 0.2 to 10 m/s
Accuracy: ±3% of the measured value ±0.04 m/s
Resolution: 0.01 m/s up to 3 m/s and 0.1 m/s beyond

Velocity Measuring Grid Kit for DBM620

The Sauermann DBM-VMG Velocity Measuring Grid Kit is attached to the base and measures 24 different points throughout the surface of the flow area. Measurement is performed using a differential pressure sensor calibrated in atmospheric pressure and temperature and compensated in temperature. This grid calculates the average air velocity from 24 points to guarantee a reliable measurement. Please respect a minimum distance of 15 cm between the measuring unit and the measurement grid.

Custom carrying case

A custom carrying case allows the easy carriage of the grid and its accessories (telescopic pole, articulation, 2 x 0.80 m of silicone tube, positioning struts, and electronic housing)

Model: DBM-VMG Specifications
Description	Measurement grid kit for DBM 620 instrument
Measuring range	from 0.2 to 10 m/s
Accuracy	ą3% of the measured value ą0.04 m/s
Resolution	0.01 m/s up to 3 m/s and 0.1 m/s beyond
Struts length	5 cm / 15 cm / 25 cm

Tech Specs

Test Equipment General Attributes
Warranty	1 YEARS
Warranty Details	All E Instruments products are covered by a one-year contractual guarantee, commencing on the delivery date, against manufacturing, material and design defects for use under normal conditions.
