Sauermann 25554 - Si-RV3 vacuum probe

Name: Sauermann 25554 - Si-RV3 vacuum probe
Brand: Sauermann
SKU: E Instruments25554
Price: 221.29 USD
Availability: InStock

0 reviews | Catalog: 25554 | Model: Sauermann 25554

Compare

Si-RV3 vacuum probe

Light and curved design for easy plug-in to facilities
High accuracy Pirani^® vacuum sensor
Dual valve system enabling simultaneous vacuum
measurement and evacuation of refrigerant
Built-in Schrader^® cores for easy refrigerant charging
Range from 5 to 25,000 microns
Reduce the use of hoses
Overmoulding for easy handling and protection
Long range Bluetooth^® 4.2 low energy

View Product Details

List Price: $235.13

Your Price: $221.29

Sign-in for EDU Pricing!

In Stock:

View Payment Options

Request Quote

Recommended for you

Sauermann 25554

Clear interface for easy reading in any condition
Gauge, table or graphic visualizations
Creation of measurements report with possibility to add pictures
Report exportation in PDF, CSV and XML formats
Free app for iOS and Android devices

Si-RV3 vacuum probe

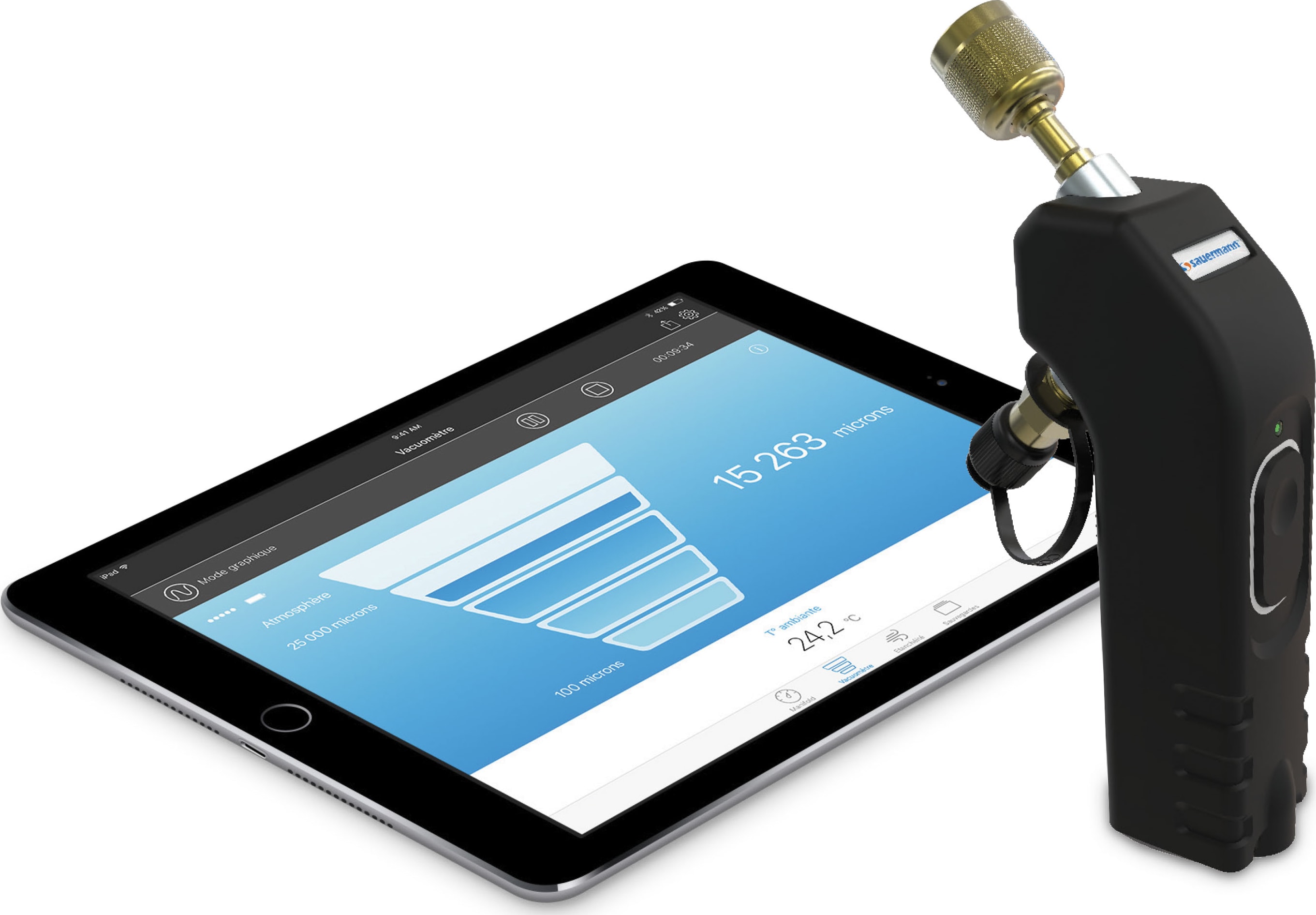

The Si-RV3 Smart Vacuum Probe supports the quick, safe evacuation of refrigeration systems and heat pumps with highly accurate measurements.

Si-Manifold App

The App comes with long-range low-energy Bluetooth® 4.2 up to 30 meters (98 ft), and the ability to store and update up to 126 refrigerants, including environmentally-friendly low global warming potential (GWP) and natural refrigerants.

General Specifications
Vacuum
Measurement and discharge valves	2 valves
Measuring range	From 5 to 25,000 microns
Pressure sensing accuracy*	±10% of the measured value ±10 microns**
Available units	micron, Pa, hPa, mbar, Torr, mmHg, inHg, inH2O
Resolution	1 micron from 0 to 1000 microns 10 microns from 1000 to 2000 microns 100 microns from 2000 to 10,000 microns 500 microns from 10,000 to 25,000 microns
Overload	10 bar (145 psi)
Burst pressure	27.5 bar (400 psi)
Operating temperature	From -10 to 50°C (-4 to 122°F)
Storage temperature	From -20 to 60°C (-4 to 140°F)
Device
Environmental conditions of use	Hygrometry: in non-condensing condition Maximum altitude: 2000 m (6561') Non-corrosive or combustible gases
Battery life	250 h (for one measurement every three seconds @ 20°C / 68°F)
Bluetooth®	Class 1 Bluetooth® 4.2
Bluetooth® range	Up to 30 m (98 ft) - Depending on smartphone and tablet Bluetooth radio strength.
Connections	To installation: female ¼’’ FFL with Schrader® depressor To flexible: male ¼’’ MFL with Schrader® valve
Standards	2011/65/EU RoHS II; 2012/19/EU WEEE; 2014/30/EU EMC; 2014/53/EU RED
