Santronics LAC-EZ Low AC Voltage Sensor - 24 to 90 VAC

Name: Santronics LAC-EZ Low AC Voltage Sensor - 24 to 90 VAC
Brand: Santronics
SKU: SantronicsLAC-EZ
Price: 19.95 USD
Availability: InStock

0 reviews | Model: Santronics LAC-EZ

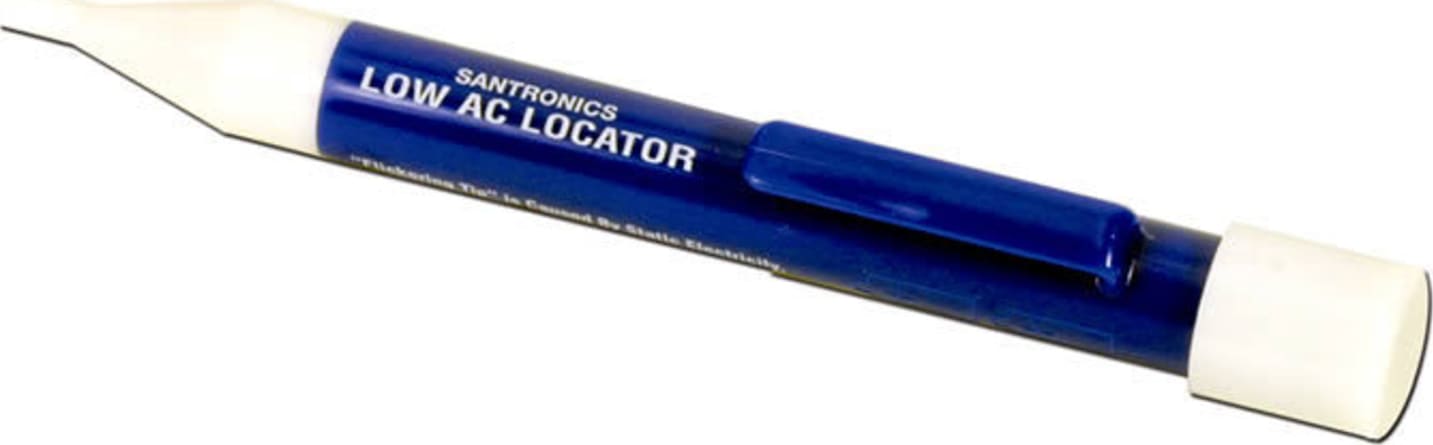

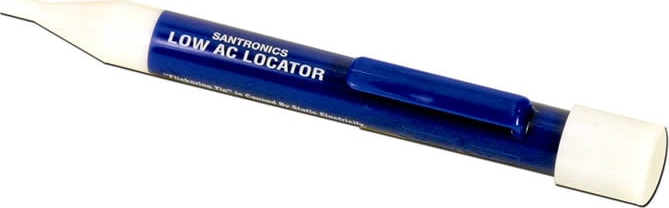

Santronics LAC-EZ Non-Contact Voltage Detector

Compare

Low AC Voltage Sensor - 24 to 90 VAC

Detects 24-90 Volts AC
Bright red glow indicates voltage
Sense voltage without metalic contact
UL Listed #28YF
"AAA" Energizer batteries included
This Unit is High Quality see the reviews

View Product Details

List Price: $19.95

In Stock:

View Payment Options

Recommended for you

Low AC Voltage Sensor - 24 to 90 VAC

The “Santronics Low AC Sensor” is a hi-tech device for determining the presence or absence of 24-90 volts AC in an electrical or electronic system.

It is not necessary to disconnect system as no contact is required for operation. Current flow is not necessary to locate voltage.

Simply apply the plastic probe to a connection or pass it along an insulated wire. If 24-90 volts AC is present, an LED in the probe will glow bright RED. Illumination will cease at a break in circuit or wire.

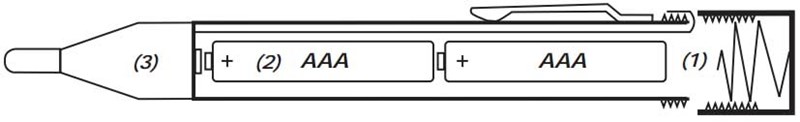

Santronics_Low_AC_Sensor

General Specifications
Outer Surface	Non-conductive body, probe and cap composed of injected molded high-impact nonflammable polycarbonate, with a dielectric of 220 Volts AC potential at 60 Hertz
Operating Voltage	24-90 Volts AC
Batteries	2 (two) replaceable AAA alkaline batteries included
Operating Temperature	-40° C to +55° C
Circuit Board	Surface mounted components on FR-4 substrate
Light Source	One high-intensity SMD LED for maximum illumination
Weight	40.6 grams with batteries
Dimensions	5.75" length; .75" in diameter
Breakdown Voltage	4000+ Volts AC
Interior Conductor Strip	Brass strip approximately 4.75" in length
Operating Principle	This instrument senses the electrical field produced by AC voltage through insulation, without touching the conductor. A constant bright red glow will indicate the presence of AC voltage.

Tech Specs

Voltage / Continuity and Non-Contact Testers/Non-Contact Voltage and Current Detectors Template
Style (voltage)	Pen
AC Volts	Yes
DC Volts	No
Voltage Display	No
Audible Alert	No
Visual Alert	Yes
Flashlight Option	No
Data Hold	No
Resistance Testing	No
Continuity Test	No
Diode Testing	No
CAT Rating	IV
Continuous Self Test	No
Test Equipment General Attributes
Unique Features	Product made in USA, lifetime warranty
Warranty	1 LIFETIME (1 YEARS)
Warranty Details	Product has a lifetime warranty against manufacturing defects
Safety Approval	RoHS
Product Weight	39.7 GRAMS (0.088 LBS)
Product Height	1 IN
Product Length	9 IN
Product Width	5.5 IN
Shipping Weight	2 LBS
Data Logging	No
HTS/Schedule B Number	9030.33.0040
ECCN Number	EAR99
Battery Type	AAA
Power Supply Voltage	Battery Powered
Country of Origin	United States
Shipping Height	7 IN
UPC	727559032152
Shipping Length	11 IN
Shipping Width	7 IN
