0 reviews | Model: SMC SFG 6100-6
SF6 Gas Analyzer with 6 Gas
List Price: $21,500.00
We accept purchase orders and all major credit cards. We also provide financing via Klarna at checkout for qualifying purchases.
Have a question or need to apply for payment terms?
Contact us.
This item is special order and is non-returnable and non-cancellable.
Please reach out to us if you are uncertain about this item. We will help you find the right solution.
Have a question? Ask an expert.

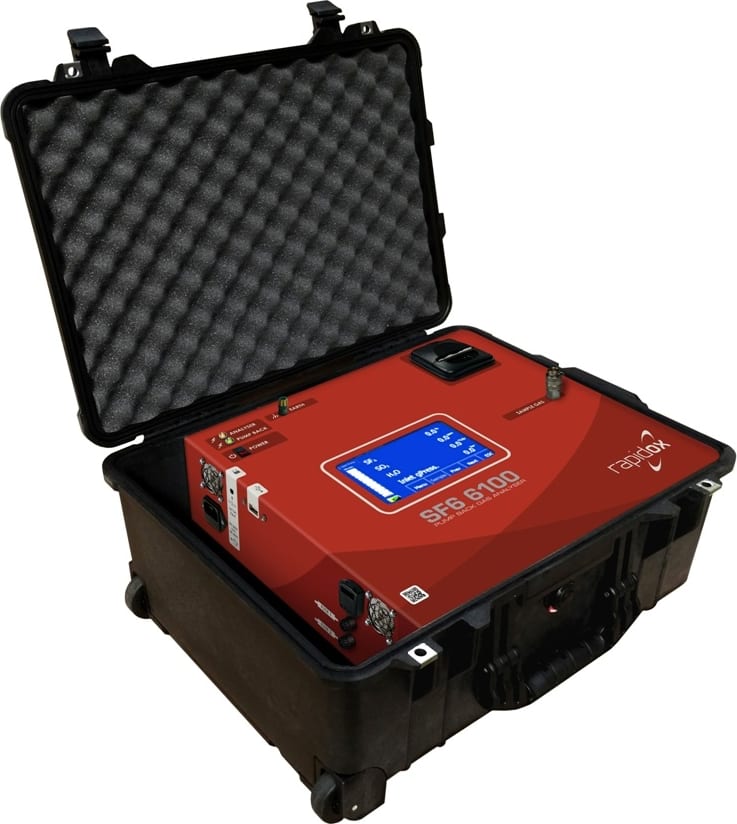

The SF6 6100 Pump Back is a fully-automatic gas analyzer, designed for controlling and monitoring the quality of SF6 in medium & high voltage gas insulated electrical equipment. Exceptional accuracy and stability are provided when measuring the purity of SF 6 gas, through specially selected sensors. The modular configuration allows for up to eight compatible gases to be analyzed simultameously with one instrument. Once connected, SF6 6100 Pump Back samples gas from the electrical equipment automatically or manually, with an inlet auto gas pressure sensing function. A vacuum purge cycle and gas storage system ensures that no air can contaminate the gas sample and that no SF 6 gas is able to escape during the testing period. SF6 gas pressure in the internal sample compartment is recorded and logged by the analyzer. All measured gases are analyzed and data logged simultaneously with only a few minutes required to achieve a stable reading. A powerful 10 bar compressor, with a separate lithium battery power supply, then returns the gas to the electrical equipment at high pressure.
Applications
Each SF6 6100 Pump Back and Portable analyzer can be configured to individual customer requirements, with a range of compatible gas sensing combinations available. Though highly configurable, these SF6 6100 analyzers possess many standard features to enhance functionality.

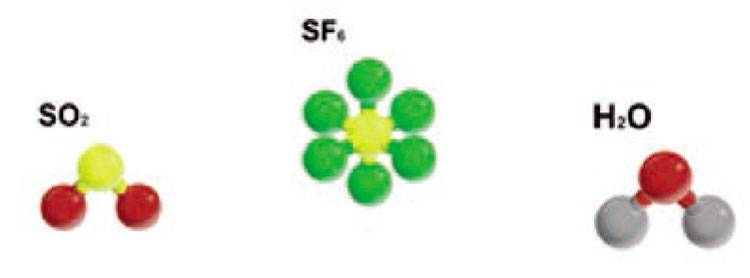

The SF6 6100 can measure simultaneously the following 3 gases.
