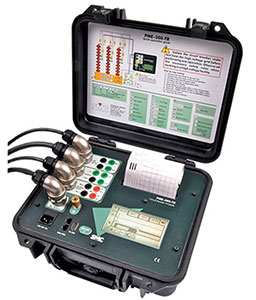

Inputs |
Main Contact Inputs |
Number |
3 inputs + common (ground) |
Open circuit voltage |
10 V DC maximum |
Testing current |
100 mA maximum |
States |
Closed (C) (r < 30Ω)>
Preinsertion ( R ) (30Ω < r < 10kΩ)
Open ( O ) (r>10kΩ) |
Auxiliary Inputs |
Number |
2 isolated binary inputs |
Contact mode |
Open circuit voltage: 5 V DC
Testing current: 20 mA maximum |
Voltage mode |
Range: From ±1.5 to ±360 V AC/DC
Low activation mode (Low) ±1.5 V AC/DC
High activation mode (High) ±15 V AC/DC |
Single command |
Close (C), Open (O) |
Double |
Close-Open (C-O), Open-Close (O-C) |
Triple |
Close-Open-Close (C-O-C),
Open-Close-Open (O-C-O) |
Command Duration |
Close, Open, Interval |
Between 10 and 2,000 ms |
Acquisition start delay |
Between 0 and 18 s. |
Acquisition Start Signal |
Selectable between |
Coil Operation
.Aux1 or aux2 status change
Main contact status change
Programmed DELAY |
General |
Compliance |
IEC-61010 / EMC-50081-2 / EN-50082-2 |
Voltage supply |
100 to 240 V AC 50-60 Hz |
Internal battery |
NiMH Type 12 V DC |
Normal operating time |
10 hours |
Battery recharge time |
4.5 hours |
Dimensions (in mm): Heigth: 340/Width: 300/Depth: 150
(in inches): 13.3 11.8 5.9 |
Weight |
8 kg. - 17.6 lb. |
Working temperature |
0º - 55º C |
Storage temperature |
-40º / +70º C // -40 ºF / 158ºF |
Humidity |
Up to 95% (non condensating) |
Languages incorporated |
English, Spanish, French, German, Italian, etc. |
Measurement |

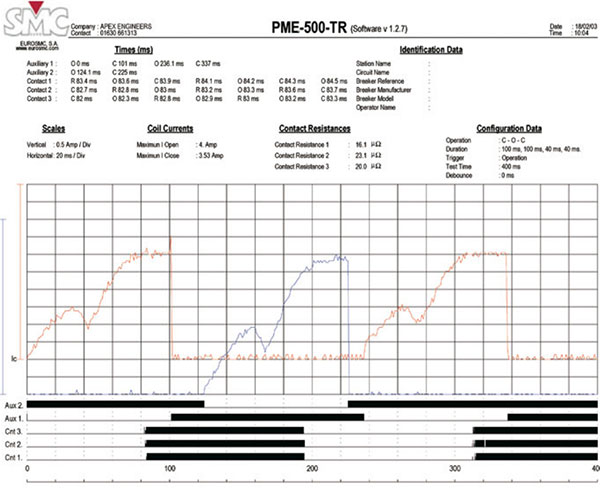

Time measurement and graphic representation |
Ranges |
Selectable between 100 ms, 200 ms,
400 ms, 800 ms and 2000 ms |
Resolution |
± 0.1 ms (sampling frequency of 10 kHz) |
Accuracy |
± 0.05% ±0.1 ms |
Graphic representation resolution |
0.8 ms per mm |
Current measurement and graphic representation |
Range |
0 – 50 A DC |
Resolution |
0.1 A (sampling frequency of 1 kHz) |
Accuracy |
1% of the range ±100 mA |
Graphic representation Automatic scale up resolution |
to 50 mA per mm (vertical) |
Contact resistance measurement |
Ranges |
Automatic range selection
from 100.0 µΩ to 1.000 Ω |
Resolution |
0.1 µΩ maximum |
Accuracy |
± 1% of the range ± 1 digit |
Testing current |
10 A DC maximum |
Touch Screen Panel, Printer and Memory |
Graphic Touch Screen |
Type |
Transflective LCD |
Dimensions |
113 x 61 mm / 4.4" x 2.4" |
Color |
Black and white |
Contrast |
Adjustable |
Illumination |
CCFL |
Buil in Printer |
Type |
Thermal |
Paper width |
110 mm (standard) / 4.3" |
Maximum diameter of paper roll |
40 mm / 1.5" |
Memory |
Internal memory |
Stores up to 60 test results |
