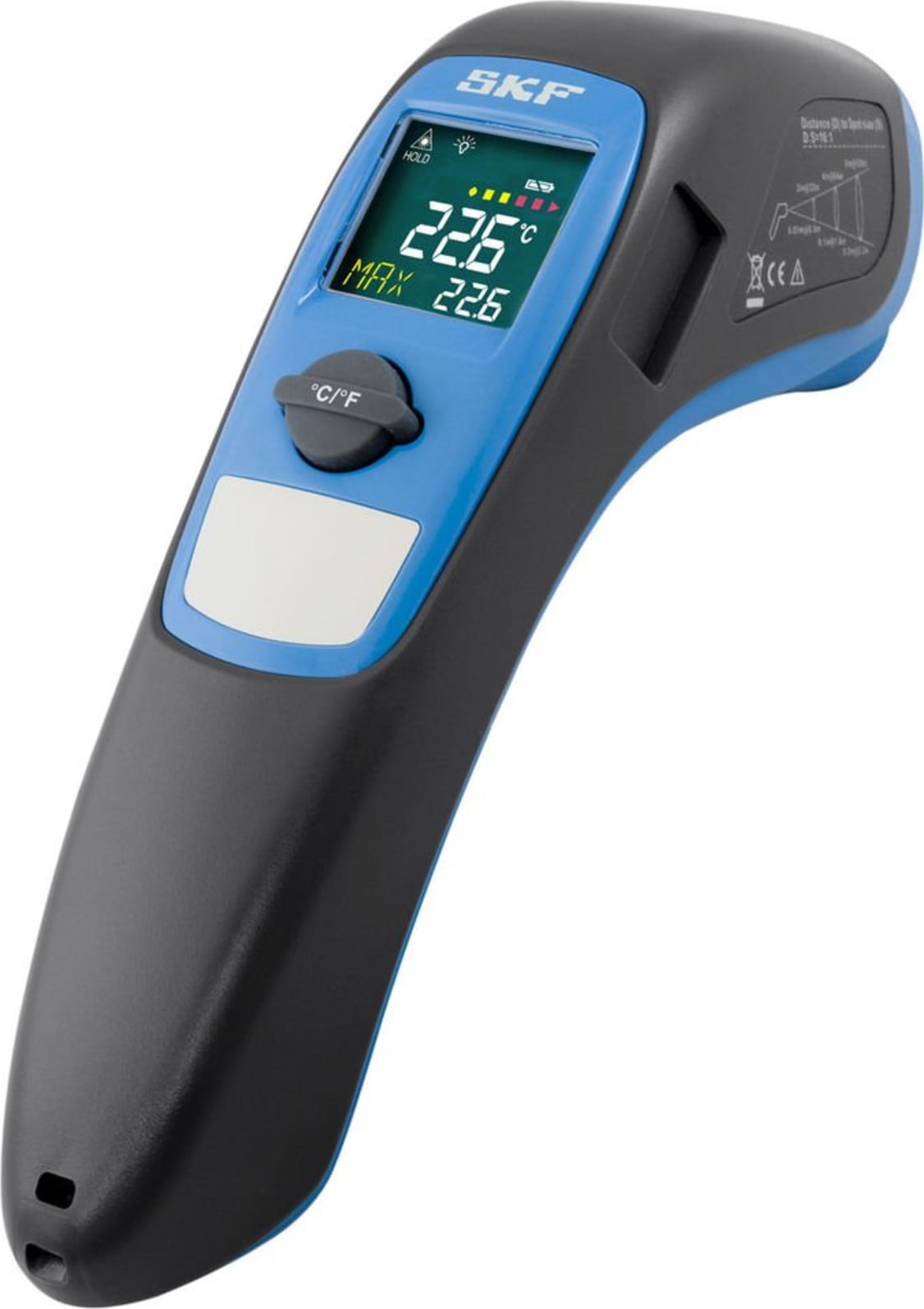

SKF TKTL 10 Handheld Infrared Thermometer, 60 to +625 °C (–76 to +1 157 °F)

0 reviews | UPC: 7316574735297 | Model: SKF TKTL 10

Compare

Handheld Infrared Thermometer, 60 to 625 °C (–76 to 1 157 °F)

Infrared temperature measurement range from –60 to +625 °C (–76 to +1 157 °F)
Distance-to-spot ratio of 16:1; allows accurate temperature readings at a distance
User selectable variable emissivity between 0,1 and 1,0; allows most surface temperatures to be measured.
Colour display with temperature trend indication
User selectable, multiple temperature measurement modes including: maximum, minimum, average, differential and probe/infrared dual display, scan function
Mode dependant auto shut off feature optimises battery life
Supplied in a sturdy carrying case

View Product Details

List Price: $347.81

In Stock:

View Payment Options

Non-Cancellable / Non-Returnable

Recommended for you

Infrared thermometers are portable, lightweight instruments for safely measuring temperature at a distance. They are extremely user-friendly; simply aim and pull the trigger and the temperature is shown on the display. These robust instruments are equipped with a back-lit display and laser sighting. They are fitted with a bright LED illuminator to allow the application object to be seen even in poorly lit environments.

Technical data
Designation	TKTL 10
Description	Handheld infrared thermometer
Temperature rangeusing infrared	–60 to +625 °C (–76 to +1 157 °F)
Environmentallimits	Operation 0 to 50 °C (32 to 122 °F) 10 to 95% R.H.
	Storage –20 to +65 °C (–4 to +149 °F) 10 to 95% R.H.
Full range accuracy (Tamb=23 ±3 °C)	Tobj = 0 to 625 °C ±2% of reading or 2 °C (4 °F) whichever is greater Tobj = –60 to 0 °C ±(2 °C +0,05/degree)
Response time (90%)	<1 000 ms
Display	LCD
Displayedresolution	0,1 °C/F from –9.9~199.9, otherwise 1 °C/F
Distance to spotsize	16:1
Spectral response	8–14 µm
Emissivity	Pre-set 0,95
User selectablebacklit display	No, permanently on
User selectablelaser pointer	No, permanently on
Measurement modes	Max temperature
Laser wavelength	635–650 nm
Laser	Class 2
Maximum laser power	1 mW
Dimensions	195 x 70 x 48 mm (7.7 x 2.7 x 1.9 in.)
Packaging	Carton box
Weight	230 g (0.5 lbs)
Battery	2 x AAA Alkaline type IEC LR03
Battery lifetime	18 hours
Switch off	Automatic after 15 s after trigger is released
EMC standards	EN 61326-1,-2-2:2006
Laser standards	21CFR, Ch 1-J

Tech Specs

Thermometers/IR Thermometers Template
IR Temperature Max	1157 F
IR Temperature Min	-76 F
Field View Ratio (Spot Ratio)	16:1
Accuracy	0 to 635 °C ±2% of reading or 2 °C (4 °F) whichever is greater
Laser Pointer	Yes
Backlight	Yes
Emissivity Adjustable	No
Alarm	No
Data Hold	No
Max./Min.	No
Memory Recall	No
Thermocouple Input	No
Food Safe	No
Test Equipment General Attributes
Unique Features	• Maximum temperature always shown; helps identify the real hot spots • Auto shut off feature; helps optimize battery life • Color display with temperature trend indication
Warranty	1 YEARS
Product Weight	0.5 LBS
Product Height	1.9 IN
Product Length	7.7 IN
Product Width	2.7 IN
Calibration Included	None
Battery Type	AAA
Power Supply Voltage	Battery Powered
Country of Origin	China
Shipping Height	2.56 IN
Shipping Length	8.47 IN
Shipping Width	4.53 IN
Other Information	Display: LCD Laser standards: 21CFR, Ch 1-J Laser wave length: 635–650 nm Distance to spot size: 16:1
