| Technical data |
| Performance |
|
| Temperature range |
-20°C to +900°C (-4 °F to 1650 °F) |
| Field of view (manual focus) |
20 x 15° |
| Sensitivity |
~0,08 °C at 23 °C (73 °F) ambient and 30 °C (86 °F) scene temperature
~0,05 °C at 23 °C (73 °F) ambient and 30 °C (86 °F) scene temperature for Building mode |
| Thermal detector / digital camera |
160 x 120 uncooled microbolometer / 3 Megapixel digital camera |
| Emissivity correction |
User selectable 0,1 to 1,0 in steps of 0,01 with reflected ambient temperature compensation. |
| Accuracy |
The greater of ±2 °C or ±2% of reading in °C for the ambient temperature range of –15 to +45 °C (5 to 113 °F) |
| Frame rate |
8 Hz |
| Image storage |
Up to 1 000 images on Micro SD card supplied |
| Display |
3.5 in. colour LCD with LED backlight
8 colour palettes
Mixed thermal and visual images |
| Laser pointer |
A built-in class 2 laser is supplied to highlight the reference pixel |
| Imager power supply |
|
| Battery |
Lithium-ion field rechargeable |
| Operation time |
Up to 5 hours continuous operation |
| AC operation |
USB AC adaptor supplied |
| Mechanical & environment |
|
| Temperature operating |
–5 to +50 °C (23 to 122 °F) |
| Humidity |
10 to 90% non-condensing |
| Storage range |
–20 to +70 °C (–4 to +158 °F) |
| Ingress protection level |
IP 54 |
| Dimensions |
130 x 95 x 220 mm
(5.1 x 3.7 x 8.6 in.) |
| Mounting |
Handheld and tripod mounting, 0.25 in. BSW. |
| Weight |
0,80 kg (1.8 lb) |
| Software |
Advanced imager analysis and report writing software suite |
| Computer requirements |
PC with Windows XP Vista or Windows 7 |
| Kit contents |

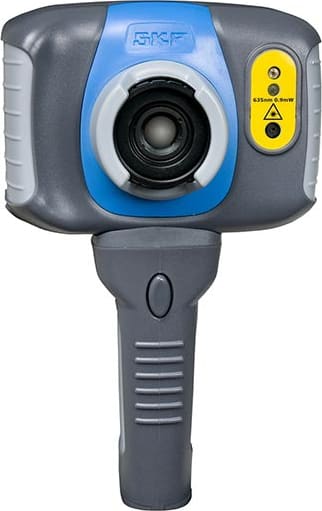

Thermal camera TKTI 20
Micro SD card (2GB)
USB connection cable
Universal USB AC Adaptor
(UK, USA, European and Australian plugs)
Carrying case
CD containing IFU and software
Certificate of calibration and conformity
Quick start guide (English) |
