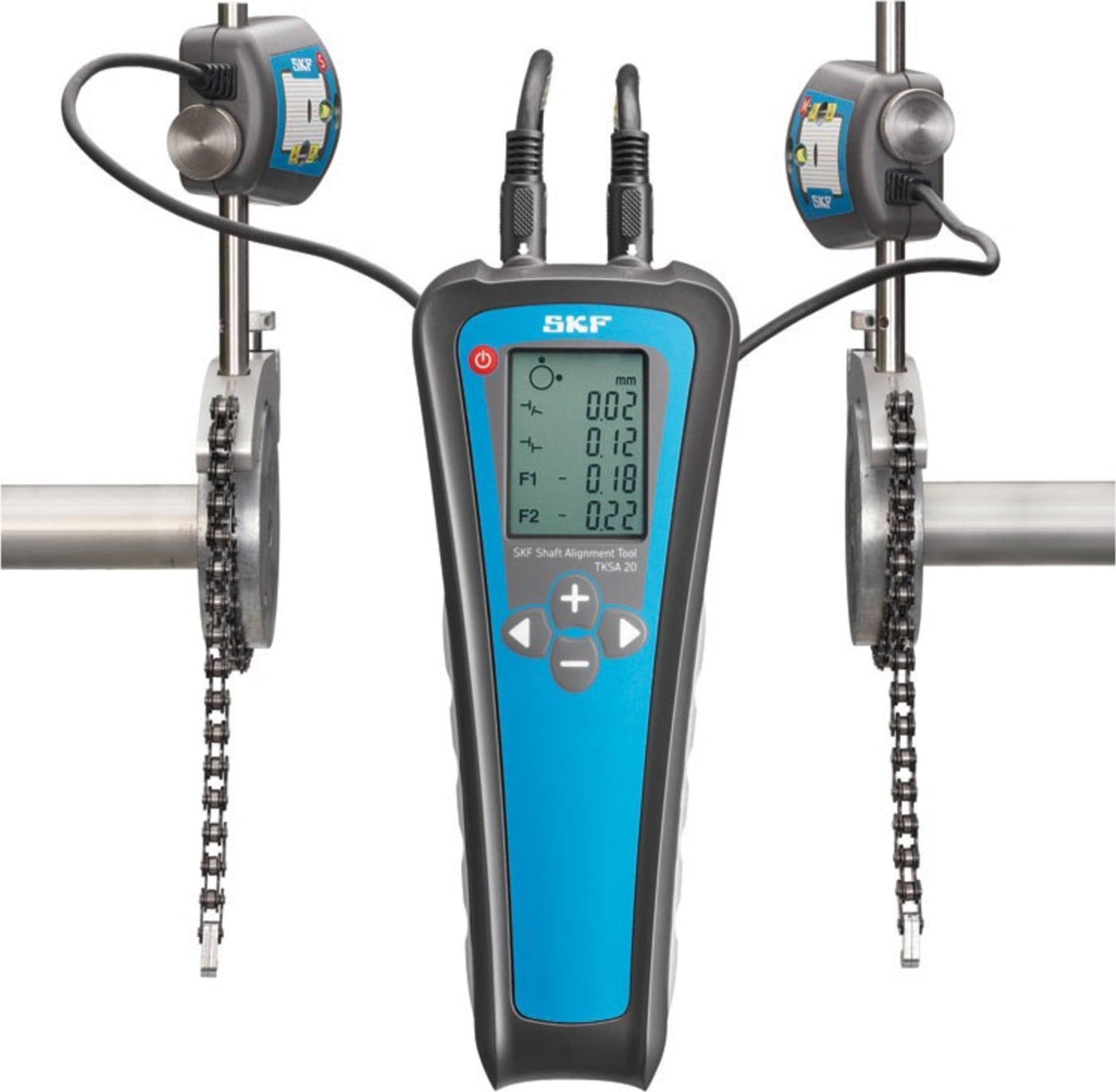

SKF TKSA 20 Basic Laser Shaft Alignment Tool

0 reviews | UPC: 7316574648306 | Model: SKF TKSA 20

Compare

Basic Laser Shaft Alignment System

Alignment actions displayed: clear “real–time” coupling and feet values, given during the alignment process, makes machine alignment corrections quick and easy
Soft foot check: “soft foot” function helps check if the machine is standing evenly on all feet; an essential check for good shaft alignment
Easy pre–alignment: for machines that are grossly misaligned, the laser lines and scales enable rapid pre–alignment
Fast measuring unit positioning: measuring units are positioned fast and easy, by using the built-in spirit levels
Global use: language free, simple three step process and user selectable measurement units (mm or inch) facilitate use globally
Easy for inexperienced users: quick start guide allows virtually any technician to quickly be familiar with the process.
Full multi-lingual instructions, instructional video and alignment report forms supplied on a CD
The attractively priced TKSA 20 virtually assures a short payback time on the investment

View Product Details

List Price: $6,451.42

In Stock:

View Payment Options

Recommended for you

Quick, easy and affordable machine alignment with the laser shaft alignment tool

The TKSA 20 is an easy–to–use laser shaft alignment tool, which requires no special training to operate. Compared to traditional dial indicator methods, the shaft alignment process is greatly simplified, as no additional calculations are required in order to make the necessary adjustments.

Display unit (batteries included)
2 measuring units with spirit levels
2 mechanical shaft fixtures
2 locking chains with tightening pin
Measuring tape
Quick start guide
CD with instructions for use, instructional video and alignment reports on CD
Calibration certificate valid for 2 years
Carrying case

Technical data
Designation	TKSA 20
Description	Shaft alignment tool
Applications	Horizontal single coupling alignment
	Soft foot check
Measuring units:
Housing material	ABS plastic
Type of laser	Diode laser
Laser wave length	670 - 675 nm
Laser class	2
Maximum laser power	1 mW
Distance between	Maximum: 850 mm (2.8 ft)
measuring units	Minimum: 70 mm (2.7 in.)
Type of detectors	Single-axis PSD, 8,5 x 0,9 mm (0.3 x 0.04 in.)
Cable length	1,6 m (5.2 ft)
Dimensions	87 x 79 x 39 mm (3.4 x 3.1 x 1.5 in.)
Weight	210 g (7.3 oz)
Display unit:
Housing material	ABS plastic
Display type	LCD 35 x 48 mm (1.4 x 1.9 in.)
Battery type	2 x 1,5V LR14 Alkaline
Operating time	20 hours continuous
Displayed resolution	0,01 mm (0.1 mil in inch mode)
Dimensions	215 × 83 × 38 mm (8.4 × 3.2 × 1.4 in.)
Weight	300 g (10.5 oz)
Complete system:
Contents	Display unit (batteries included) 2 measuring units with spirit levels 2 mechanical shaft fixtures 2 locking chains with tightening pin Measuring tape Quick start guide CD with instructions for use, instructional video and alignment reports on CD Calibration certificate valid for 2 years Carrying case
Shaft diameter range	30 -500 mm (5.2 -20 in.) Chain: 30 - 150 mm (0.2 - 5.9 in.) Optional chain: 150- 500 mm (5.9 - 20 in.)
Accuracy of system	<2% +/- 0,01 mm
Temperature range	0 - 40 °C (32 - 104 °F)
Operating humidity	< 90%
Carrying case dimensions	390 × 310 × 147 mm (15.3 × 12.2 × 5.7 in.)
Total weight (incl. case)	3,6 kg (7.9 lb)
Warranty	1 year
