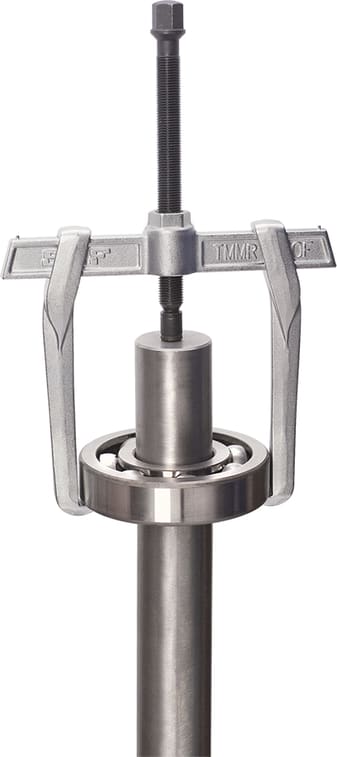

SKF TMMR 250F - Reversible Jaw Puller (183mm Effective Arm Length)

0 reviews | UPC: 7316571511672 | Model: SKF TMMR 250F

SKFTMMR_250F_Deep_Groove_Ball_Bearing_Puller_Kit_Main_View

Compare

Reversible Jaw Puller ( 183mm Effective Arm Length, 74–254 Width of Grip External Pull)

Self-locking arms for easy adjustment of width of grip
Unlike many similar pullers, the pullers can be used up to their full rated load capacity without permanently deforming the puller arms
Arms and beam are zinc passivated for enhanced corrosion resistance and easy cleaning
The extra long arm extension pieces, designed to be easy to fit and remove, can be used to further increase the effective arm length. Using extension pieces does not compromise the overall puller strength
The SKF Reversible Jaw Pullers can also be supplied in three different sets, complete with a workshop stand
Enhances stability
Helps reduce the risk of shaft damage & applied torque to reach the required pulling force

View Product Details

List Price: $670.43

Your Price: $340.38

In Stock:

Free shipping over $99 - Code: FREESHIP
Please note, FREE SHIPPING is only available on items that can ship via standard ground shipping and is only valid within the Contiguous United States. Any items that must ship via freight or to any destination outside of the Contiguous United States will be excluded. - USE CODE FREESHIP at checkout

Valid on Web Price Only!
View Payment Options

Request Quote

Items in This Series



Product	SKF TMMR 250F Reversible Jaw Puller ( 183mm Effective Arm Length, 74–254 Width of Gr ...	SKF TMMR 40F Reversible jaw puller (67mm effective arm length)	SKF TMMR 60F Reversible jaw puller (82mm effective arm length)	SKF TMMR 80F Reversible jaw puller (98mm effective arm length)	SKF TMMR 120F Reversible Jaw Puller (124mm Effective Arm Length, 41-124mm Width of grip Ex ...	SKF TMMR 160F Reversible jaw puller (143mm effective arm length)	SKF TMMR 200F Reversible jaw puller (169mm effective arm length)	SKF TMMR 350F Reversible jaw puller (238mm effective arm length)
Price
In Stock
Compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare

Recommended for you

SKF TMMR 250F Accessories

Choose a Category

Bearing Pullers

for the SKF TMMR 250F

SKF TMMR 250F-3 Spindle for reversible universal jaw puller TMMR 250F-3

Catalog: TMMR 250F-3

(0)

In Stock!

Add to Cart

SKF TMMX 350 Puller protection blanket (350mm max. diameter)

Catalog: TMMX 350

(0)

In Stock!

Add to Cart

SKF TMMR 250F - Reversible Jaw Puller (183mm Effective Arm Length)

Self-locking arms for easy adjustment of width of grip
Pullers can be used up to their full rated load capacity without permanently deforming the puller arms
Arms and beam are zinc passivated for enhanced corrosion resistance and easy cleaning

The multi-purpose SKF Reversible Jaw Pullers are suitable for internal and external pulling of bearings and other components, such as gears and pulleys. The standard range of eight pullers can accommodate a wide range of bearing and component sizes. Adding extra versatility to the TMMR 250F puller program. The extra long arms help to dismount bearings and components placed far from the shaft end. For more versatility, the extra long arms can be further extended by adding extension pieces.

Technical data
Maximum withdrawal force	60 kn (6.7 ton (US))
Maximum torque	160 Nm (118.0 lbf)
Weight	4.4 kg (11.4 lb)
Dimensions
Width of grip External pull (D)	74–254 mm (2.9–10.0 in.)
Width of grip Internal pull (d)	132–254 mm (5.2–10.0 in.)
Effective arm length (L)	183 mm (7.2 in.)
Claw dimensions
Claw width	28 mm (1.10 in.)
Claw length	22 mm (0.87 in)
Claw height	10 mm (0.39 in.)
