SKF TMMK 10-35 - Combi Kit

0 reviews | UPC: 7316573275084 | Model: SKF TMMK 10-35

Compare

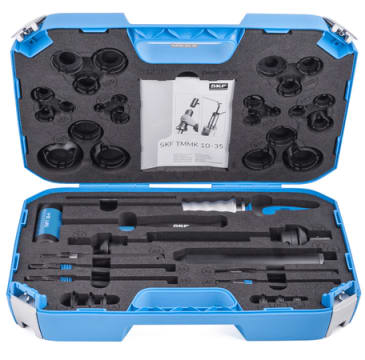

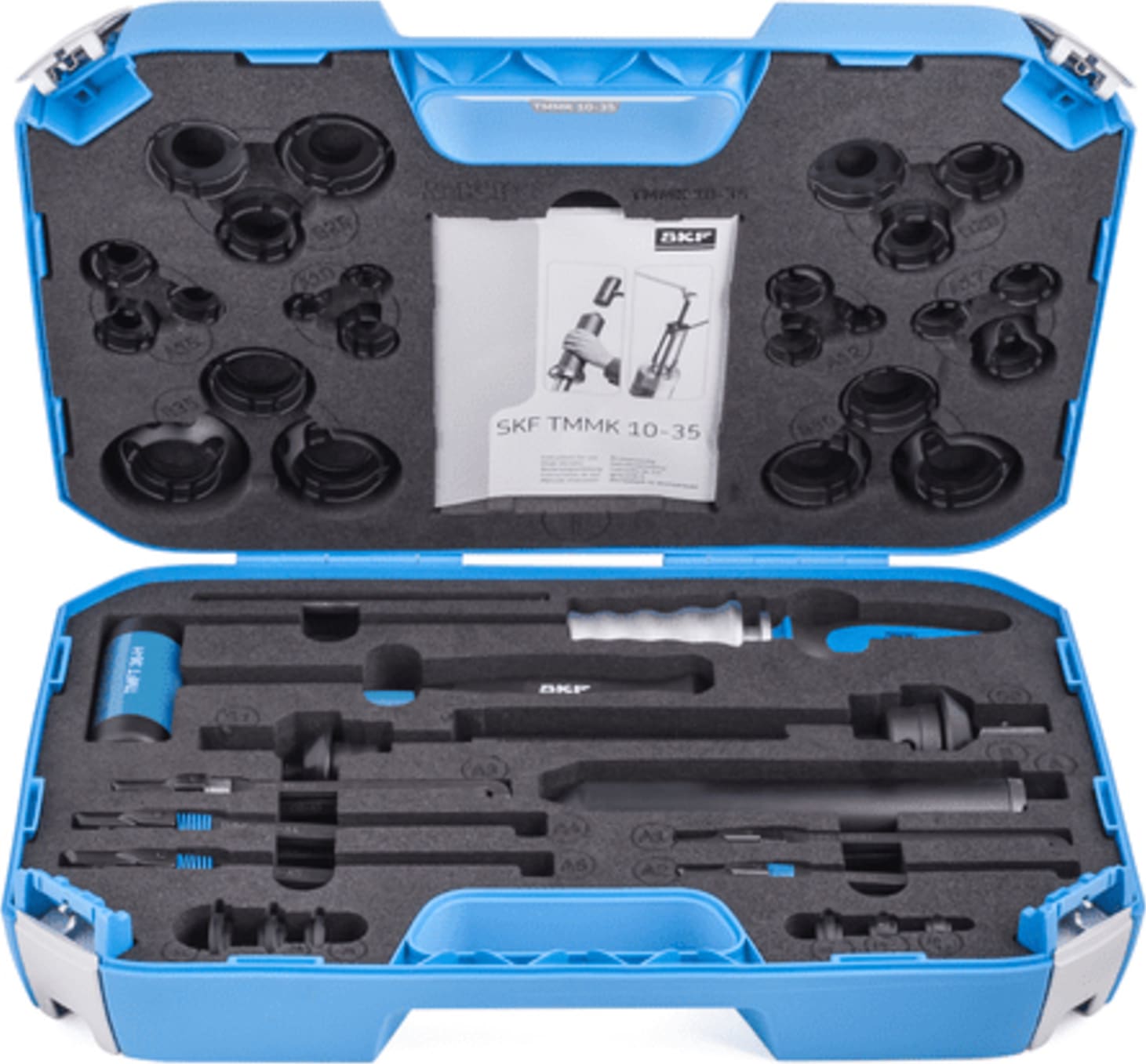

Combi kit - For mounting and dismounting bearings with bore diameters from 10 to 35 mm

All parts are clearly arranged in the case for easy selection and identification
The correct combination of impact ring and sleeve helps ensure that mounting forces are not transmitted via the rolling elements of the bearing, minimizing damage to bearing due to incorrect mounting
The impact rings are made of high-impact modified polyamide. The impact sleeves are made of glass fibre-reinforced, high-impact modified polyamide, which is super-tough, strong and lightweight
The dead-blow hammer has nylon faces and is steel-shot loaded for maximum impact. The handle, with comfortable rubber-grip for good handling, absorbs shock and vibration
The claws are especially designed to facilitate a precise fit in the bearing’s raceways, providing good grip and allowing the application of higher dismounting forces
The designation is laser-engraved on the arms allowing easy identification and selection
The springs are colour-coded allowing easy selection and matching
Elastic locking ring results in easy connection of puller arms to spindle
Heavy sliding weight of the sliding hammer generates a high dismounting force

View Product Details

List Price: $4,848.38

Your Price: $2,461.53

In Stock:

Free shipping over $99 - Code: FREESHIP
Please note, FREE SHIPPING is only available on items that can ship via standard ground shipping and is only valid within the Contiguous United States. Any items that must ship via freight or to any destination outside of the Contiguous United States will be excluded. - USE CODE FREESHIP at checkout

Valid on Web Price Only!
View Payment Options

Request Quote

Items in This Series



Product	SKF TMMK 10-35 Combi kit - For mounting and dismounting bearings with bore diameters from ...	SKF TMMK 20-50 Deep Groove Ball Bearing Mounting/Dismounting Kit - 20mm - 50mm
Price
In Stock
Compare	Add to compare	Add to compare

Recommended for you

SKF TMMK 10-35 - Combi Kit

Number of impact rings: 24
Number of sleeves: 2
All parts are clearly arranged in the case for easy selection and identification

The SKF TMMK series is designed for the quick and precise mounting and dismounting of deep groove ball bearings from shafts, housings and blind housings.

The TMMK 10-35 suits bearings with bore diameters from 10 to 35 mm, whereas the TMMK 20-50 suits bearings with bore diameters from 20 to 50 mm.

For mounting, a multi-purpose fitting tool is included which is suitable for mounting bearings as well as bushings, seal rings, belt pulleys and other similar products.

For dismounting of deep groove ball bearings from blind housings and shafts, the SKF TMMK series contains a unique three-armed puller.

When dismounting deep groove ball bearings from housings, a combination of this puller, sliding hammer and support rings enables easy removal of the bearings.

Number of impact rings	24
Number of sleeves	2
Impact rings bore diameter	10–35 mm (0.39–1.38 in.)
Impact rings outer diameter	26–80 mm (1.02–3.15 in.)
Dead-blow hammer	TMFT 36-H
Dimensions of case	530 × 110 × 360 mm (20.9 × 4.3 × 14.2 in.)
Weight	7.6 kg (16.8 lb)

Tech Specs

Test Equipment General Attributes
Unique Features	• All parts are clearly arranged in the case for easy selection and identification • The correct combination of impact ring and sleeve helps ensure that mounting forces are not transmitted via the rolling elements of the bearing, minimizing damage to bearing due to incorrect mounting • The designation is laser-engraved on the arms allowing easy identification and selection • The springs are colour-coded allowing easy selection and matching • Elastic locking ring results in easy connection of puller arms to spindle • Heavy sliding weight of the sliding hammer generates a high dismounting force
Product Weight	16.8 LBS
Country of Origin	United States
