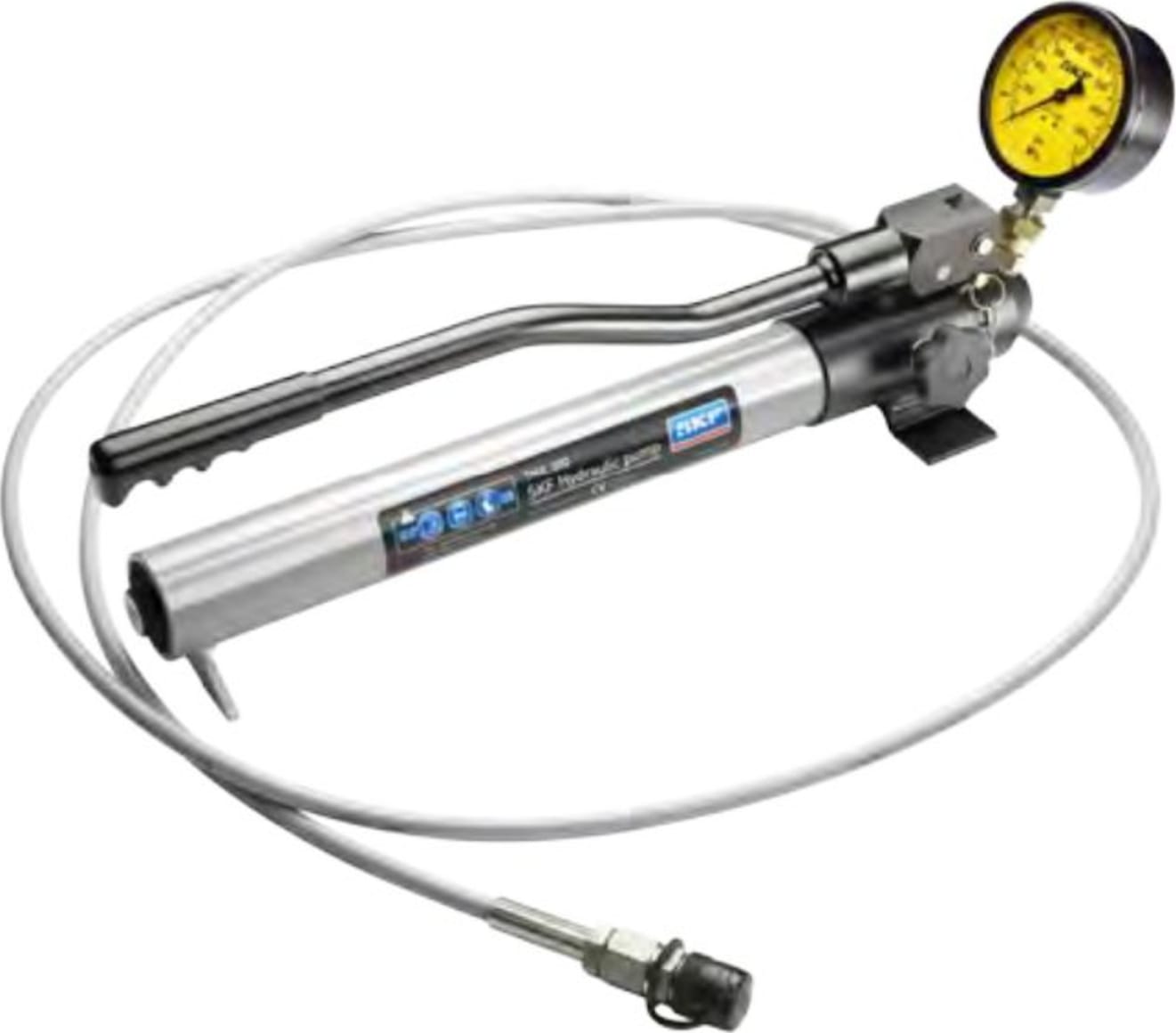

SKF TMJL 100 - Hydraulic Pump

4 (1 Review) | UPC: 7316577745668 | Model: SKF TMJL 100

Compare

In Stock:

Hydraulic pump 100 MPa

⛟ Freight Shipping Only

Oil container capacity 800 cm³ (48 in.³)
Suitable for hydraulic nuts smaller than or equal to HMV 92E
Suitable with SKF hydraulic assisted pullers TMHP series
Extra litre of mounting fluid
Packed in a sturdy protective case

View Product Details

In Stock:

Items in This Series



Product	SKF TMJL 100 Hydraulic pump 100 MPa	SKF 729124 Hydraulic pump 100 MPa	SKF 729124 DU 729124 Hydraulic Pump Drive Up Method Kit	SKF 226400 E Oil injector PUMP ONLY, 300 MPa (43 500 psi), 200 cm3 (12.2 in.3)	SKF 226400 E/400 Oil injectors, Max Pressure 400 MPa (58 000 psi)	SKF 729124-OB Hydraulic pump 100 MPa - This open box item may be missing original packagin ...
Price
In Stock
Compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare

Add to cart

SKF TMJL 100 Accessories

Choose a Category

Feeler Gage for the SKF TMJL 100

SKF 729865 B Feeler gauges, 200 mm

Catalog: 729865 B

(1)

In Stock!

Add to Cart

SKF 1008593 E Nipple with pipe thread G 3/8, G 3/4, 400 MPa Pressure

Catalog: 1008593 E

(0)

In Stock!

Add to Cart

SKF 1009030 B Nipple with pipe thread G 1/8, G 3/8, 300 MPa Pressure

Catalog: 1009030 B

(0)

In Stock!

Add to Cart

SKF 1009030 E Connection Nipple G 1/4, G 3/4, 400 Mpa

Catalog: 1009030 E

(0)

In Stock!

Add to Cart

SKF 1012783 E Connection Nipple G 3/8 G1/4 Thread, 400 Mpa

Catalog: 1012783 E

(0)

In Stock!

Add to Cart

SKF 1014357 A Nipple with pipe thread G 1/8, G 1/4, 300 MPa

Catalog: 1014357 A

(0)

In Stock!

Add to Cart

SKF 1016402 E Nipple with pipe thread G 1/2, G 1/4, 400 MPa Pressure

Catalog: 1016402 E

(0)

In Stock!

Add to Cart

SKF 1018219 E Nipple with pipe thread G 1/4, G 3/8, 400 MPa Pressure

Catalog: 1018219 E

(0)

In Stock!

Add to Cart

SKF 1019950 Nipple with pipe thread G 1/8, G 1/2, 300 MPa Pressure

Catalog: 1019950

(0)

In Stock!

Add to Cart

SKF 1030816 E Plugs for oil ducts and vent holes, G 3/4, 23 mm (0.90 in.)

Catalog: 1030816 E

(0)

In Stock!

Add to Cart

SKF 1077453/100MPA M6 Extension Pipe, 100 MPa (14500 psi)

Catalog: 1077453/100MPA

(1)

In Stock!

Add to Cart

SKF 1077454/100MPA M6 Connection Nipple, 100 MPa (14500 psi)

Catalog: 1077454/100MPA

(0)

In Stock!

Add to Cart

SKF 1077456/100MPA 100MPA (14,500PSI) NIPPLES WITH METRIC (G)M8X1 (G2)M6X1

Catalog: 1077456/100MPA

(0)

In Stock!

Add to Cart

SKF 227965/100MPA G1/8 Extension Pipe, Max Pressure 100 MPa (14 500 psi)

Catalog: 227965/100MPA

(0)

In Stock!

Add to Cart

SKF 228027 E Connection Nipples, G 3/4, G 1/4, 400 Mpa

Catalog: 228027 E

(0)

In Stock!

Add to Cart

SKF 233950 E Plug for oil ducts and vent holes, G 1/4, 16mm, 0.02kg

Catalog: 233950 E

(0)

In Stock!

Add to Cart

SKF 234064 M4 Extension Pipe, 50 MPa (7250 psi)

Catalog: 234064/50MPA

(0)

In Stock!

Add to Cart

SKF 728245/3 A Transport Box

Catalog: 728245/3 A

(0)

In Stock!

Add to Cart

SKF 729100 Quick connecting nipples, G 1/8, 100 MPa

Catalog: 729100

(0)

In Stock!

Add to Cart

SKF 729126 Flexible High-pressure Hose, 4.0 Bore Diameter

Catalog: 729126

(0)

In Stock!

Add to Cart

SKF 729146 Connection Nipple G1/2, G 3/4 300 MPa

Catalog: 729146

(0)

In Stock!

Add to Cart

SKF 729655/150MPA Connection Nipple, NPT Tapered Thread, NPT 3/8 - G 1/4 Thread, 150...

Catalog: 729655/150MPA

(0)

In Stock!

Add to Cart

SKF 729831 A Quick Connecting Coupling, G 1/4 Female, 150 MPa

Catalog: 729831 A

(0)

In Stock!

Add to Cart

SKF 729832 A Quick Connecting Nipple, G 1/4 Male, 150 MPa

Catalog: 729832 A

(0)

In Stock!

Add to Cart

SKF 729834 Flexible High-pressure Hose, 5.0 Bore Diameter

Catalog: 729834

(0)

In Stock!

Add to Cart

SKF 729865 A Feeler gauges, 100mm

Catalog: 729865 A

(0)

In Stock!

Add to Cart

SKF 729944 E Plug for oil ducts and vent holes, G 1/2, 17mm, 0.03kg

Catalog: 729944 E

(0)

In Stock!

Add to Cart

SKF LHDF 900/5 LHDF 900 Dismounting Fluid, 300 mm2/s, 5 liter

Catalog: LHDF 900/5

(0)

In Stock!

Add to Cart

SKF LHMF 300/1 LHMF 300 Mounting Fluid, 300 mm2/s, 1 liter

Catalog: LHMF 300/1

(0)

In Stock!

Add to Cart

SKF TMJL 100-2 TMJL 100 Pump Repair kit

Catalog: TMJL 100-2

(0)

In Stock!

Add to Cart

SKF TMJL 100-3 Gauge connection nipple

Catalog: TMJL 100-3

(0)

In Stock!

Add to Cart

SKF TMJL 100-5 Nipple adapter for THGD 100 Digital Gauge

Catalog: TMJL 100-5

(0)

In Stock!

Add to Cart

SKF THGD 100 Digital oil pressure gauge, 0-100MPa (14500 psi), 79mm

Catalog: THGD 100

(0)

In Stock!

Add to Cart

SKF 1077589/3 Pressure gauge, 0-400 MPa, 0-58000 psi, G 1/2

Catalog: 1077589/3

(0)

In Stock!

Add to Cart

SKF 1077587 Pressure gauge, 0-100 MPa, 0-14500 psi, G 1/2

Catalog: 1077587

(0)

In Stock!

Add to Cart

SKF 1077587/2 Pressure Gauges, 0-100 MPa, 0-14500 psi, G 1/4

Catalog: 1077587/2

(0)

In Stock!

Add to Cart

SKF 1077589 Pressure Gauge 0–300 MPa, 0–43500 psi, G 1/2

Catalog: 1077589

(0)

In Stock!

Add to Cart

SKF TMJL 100 - Hydraulic Pump

Applications:

SKF hydraulic nuts smaller than or equal to HMV 92E
All other oil injection applications where the maximum pressure is 100 MPa (14 500 psi)
SKF hydraulic assisted pullers TMHP series

The TMJL 100 pump is suitable for use with hydraulic nuts (smaller than or equal to HMV 92E) and for mounting and dismounting bearings or components where a maximum pressure of 100 MPa (14 500 psi) is required. The pump is supplied with 3 000 mm (118 in) pressure hose, quick connect coupling and mating nipple, and pressure gauge. The pump is filled with SKF mounting fluid LHMF 300 and is supplied with an extra litre of fluid.

The TMJL 100 has a maximum pressure of 100 MPa (14 500 psi) and delivers a volume per stroke of 1 cm3 (0.06 in3 ). It is mainly intended for use on HMV nuts, bolt tensioners, hydraulic pullers etc, but is also suitable for other oil injection applications where a maximum pressure of 100 MPa (14 500 psi) is required. The pump is supplied with a 3 metre long, high pressure hose with quick connection coupling. Mating quick connection nipple for attachment to the workpiece is included. Everything is packed in a sturdy case. The pump has an over-pressure valve and a pressure gauge. The release valve is an integrated part of the pump head.

Maximum pressure	100 MPa (14 500 psi)
Volume/stroke	1.0 cm³ (0.06 in.³)
Oil container capacity	800 cm³ (48 in.³)
Handle force at 100 MPa	320 N (70 lbf ft)
Oil viscosity of mounting fluid	300 mm² /s (1 400 SUS) at 20 °C
Length of pressure hose	3 000 mm (118 in.)
Connection nipple	G1/4 quick connection
Weight	13 kg (29 lb)

Test Equipment General Attributes
Unique Features	• Oil container capacity 800 cm³ (48 in.³) • Suitable for hydraulic nuts smaller than or equal to HMV 92E • Suitable with SKF hydraulic assisted pullers TMHP series • Extra litre of mounting fluid • Packed in a sturdy protective case
Product Weight	29 LBS
Country of Origin	United States

4

Out of 5

Average Customer Review

Share your thoughts with other customers

Write a Review

Displaying 1 review

Most Helpful First | Newest First

Recommend to a Friend

SKF TMJL 100

4.0

It´s very good tools for mountling and dismountling : look here from our experience in production: https://www.youtube.com/watch?v=EMWOwSX2i-U

Technician on Dec 14, 2017
