SKF TMFN 64-80 - Impact Spanner (400mm - 495mm Locknut Diameter)

0 reviews | UPC: 7316571765037 | Model: SKF TMFN 64-80

Compare

Impact Spanner (400mm - 495mm Locknut Diameter)

Helps avoid shaft and nut damage
Safe and user friendly
Impact applied effectively to the nut
Suitable for a wide selection of lock nuts
Special wide impact face
To be used in combination with hammer

View Product Details

List Price: $1,292.66

Your Price: $656.28

In Stock:

Free shipping over $99 - Code: FREESHIP
Please note, FREE SHIPPING is only available on items that can ship via standard ground shipping and is only valid within the Contiguous United States. Any items that must ship via freight or to any destination outside of the Contiguous United States will be excluded. - USE CODE FREESHIP at checkout

Valid on Web Price Only!
View Payment Options

Request Quote

Non-Cancellable / Non-Returnable

Items in This Series



Product	SKF TMFN 64-80 Impact Spanner (400mm - 495mm Locknut Diameter)	SKF TMFN 23-30 Impact Spanner 150-190mm Locknut Diameter	SKF TMFN 30-40 High impact forces without nut damage	SKF TMFN 40-52 High impact forces without nut damage	SKF TMFN 500-600 Impact spanners 630mm - 735mm, 24.8in - 28.9in	SKF TMFN 52-64 High impact forces without nut damage	SKF TMFN 600-750 Impact spanners	SKF TMFN 80-500 Impact spanners 520mm - 620mm, 20.5in - 24.4in
Price
In Stock
Compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare

Recommended for you

SKF TMFN 64-80 - Impact Spanner (400mm - 495mm Locknut Diameter)

Helps avoid shaft and nut damage
Safe and user friendly
Impact applied effectively to the nut
Suitable for a wide selection of lock nuts
Special wide impact face
To be used in combination with hammer

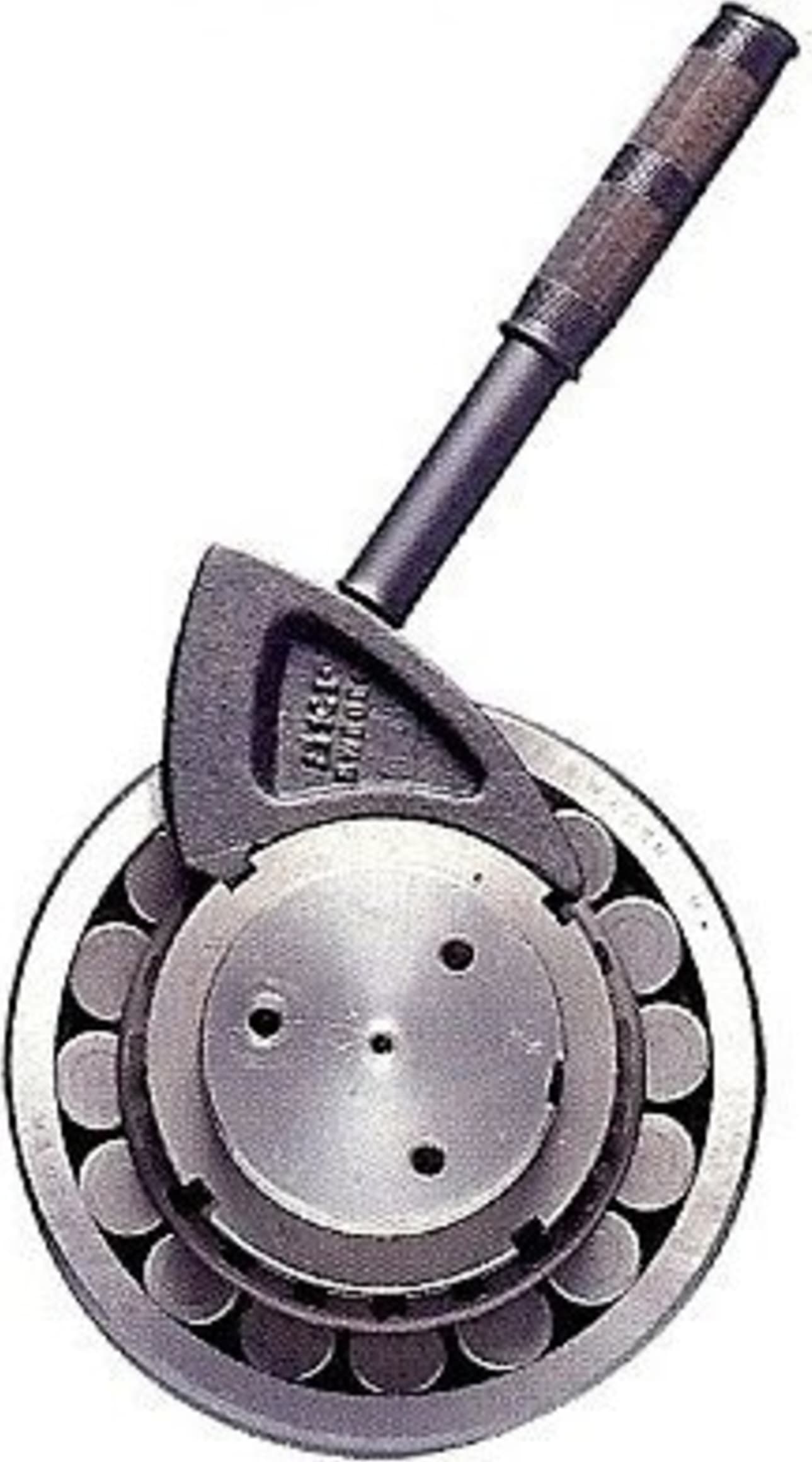

SKF impact spanners are designed for safe and easy tightening and loosening of locknuts used to secure and adjust larger bearings directly on the shaft or with adapter and withdrawal sleeves.

General Specifications
Designation	Locknut diameter				Suitable for nuts of series			Suitable for nuts of series				Suitable for nuts of series
	mm		in		HM .. (HM .. E)			HM .. (HM .. E)			HM .. T	AN ..	N ..		DIN 1804 (M)
TMFN 23-30	150	190	5.9	7.5	-	-	-	-	-	-	-	AN22 - AN28	N022 - N032	-	M105x2 - M130x3
TMFN 30-40	195	245	7.7	9.6	-	-	-	-	-	-	-	AN30 - AN38	N034 - N040	-	M140x3 - M180x3
TMFN 40-52	250	310	9.8	12.2	3044 - 3052	-	-	3044 - 3052	-	-	42 - 48	AN40	N044 - N052	N44	M190x3, M200x3
TMFN 52-64	320	385	12.6	15.2	3056 - 3064	3160	-	3056 - 3064	3160	-	50, 52, 56	-	N056 - N064	-	-
TMFN 64-80	400	495	15.7	19.5	3068 - 3084	3164 - 3176	-	3068 - 3084	3164 - 3176	-	-	-	N068 - N084	-	-
TMFN 80-500	520	620	20.5	24.4	3088 -3096	3180 - 3196	30/500	3088 -3096	3180 - 3196	30/500	-	-	N088 - N096	N500	-
TMFN 500-600	630	735	24.8	28.9	30/530 - 30/630	31/500 - 31/560	-	30/530 - 30/630	31/500 - 31/560	-	-	-	N530 - N630	-	-
TMFN 600-750	750	950	29.5	37.4	30/670 - 30/800	31/600 - 31/750	-	30/670 - 30/800	31/600 - 31/750	-	-	-	N670 - N800	-	-

Tech Specs

Test Equipment General Attributes
Unique Features	• Avoids shaft and nut damage • Safe and user friendly • Impact applied effectively to the nut • Special wide impact face
Product Weight	10.3617 LBS
Country of Origin	United States
