| Sensors and communication |
29 mm (1.1 in.) CCD with line laser Class 2 Inclinometer ą0.5°; Bluetooth 4.0 LE and wired, USB cables |
| System measuring distance |
0,07 to 4 m (0.23 to 13.1 ft) |
| Measuring errors |
< 0,5% ±5 ľm |
| Housing material |
20% Glass filled Polycarbonate |
| Operating time |
Up to 16 hours Rechargeable LiPo battery |
| Dimensions |
120 × 90 × 36 mm (4.7 × 3.5 × 1.4 in.) |
| Weight |
220 g (0.5 lb) |

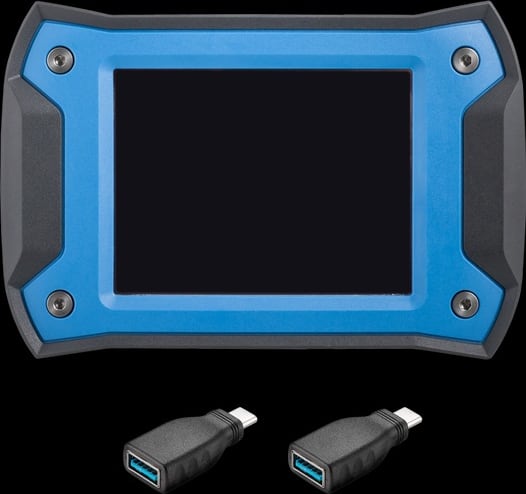

| Operating device |
5.6" colour resistive touchscreen LCD display. High Impact PC/ABS with overmould |
| Software/App update |
via USB stick |
| DU Operating time |
Up to 8 hours (100% backlight) |
| Dimensions |
205 × 140 × 60 mm (8.1 × 5.5 × 2.4 in.) |
| Weight |
640 g (1.4 lb) |
| Alignment method |
Alignment of horizontal shafts, 3 position measurement 9 -12 -3, automatic measurement, measurement (with min. 90° rotation), soft foot |
| Live correction values |
Vertical and horizontal |
| Extra features |
Machine library, QR code reading, screen orientation flip, automatic .pdf report |
| Fixture |
2 × V-brackets with chains, width 21 mm (0.8 in.) |
| Shaft diameters |
20 to 150 mm (0.8 to 5.9 in.) 300 mm (11.8 in.) with optional extension chains (not included) |
| Max. coupling height 1) |
105 mm (4.2 in.) with standard rods 195 mm (7.7 in.) with extension rods (included) |
| Power adapter |
Input: 100V-240V 50/60Hz AC power supplier Output: DC 12V 3A with EU, US, UK, AUS adapters |
| Operating temperature |
0 to 45 °C (32 to 113 °F) |
| IP rating |
IP 54 |
| Calibration certificate |
Supplied with 2 years validity |
