SKF THKI 300 - Oil Injection Set, 300 MPa (43 500 psi.)

0 reviews | UPC: 7316576125768 | Model: SKF THKI 300

Compare

Oil Injection Set, 300 MPa (43 500 psi.)

Maximum pressure: 300 MPa (43 500 psi.)
Designed to be especially suitable for workshop use
When the pressure is released, the unused oil is automatically returned to the reservoir, minimizing the risk of oil leakage to the environment
Oil container capacity 200 cm³ (12.2 in.³)
Can be used for applications requiring a maximum pressure of up to 300 MPa (43 500 psi.)

View Product Details

List Price: $8,783.81

In Stock:

View Payment Options

Non-Cancellable / Non-Returnable

Recommended for you

Accessories

Choose a Category

General Accessories

for the SKF THKI 300

SKF 920100 B Plastic Oil Reservoir

Catalog: 920100 B

(1)

In Stock!

Add to Cart

SKF 920100 B-1 O-ring for container (L)

Catalog: 920100 B-1

(1)

In Stock!

Add to Cart

SKF THKI 300 - Oil Injection Set, 300 MPa (43 500 psi.)

Maximum pressure: 300 MPa (43 500 psi.)
When the pressure is released, the unused oil is automatically returned to the reservoir, minimizing the risk of oil leakage to the environment
Oil container capacity 200 cm³ (12.2 in.³)
Can be used for applications requiring a maximum pressure of up to 300 MPa (43 500 psi.)

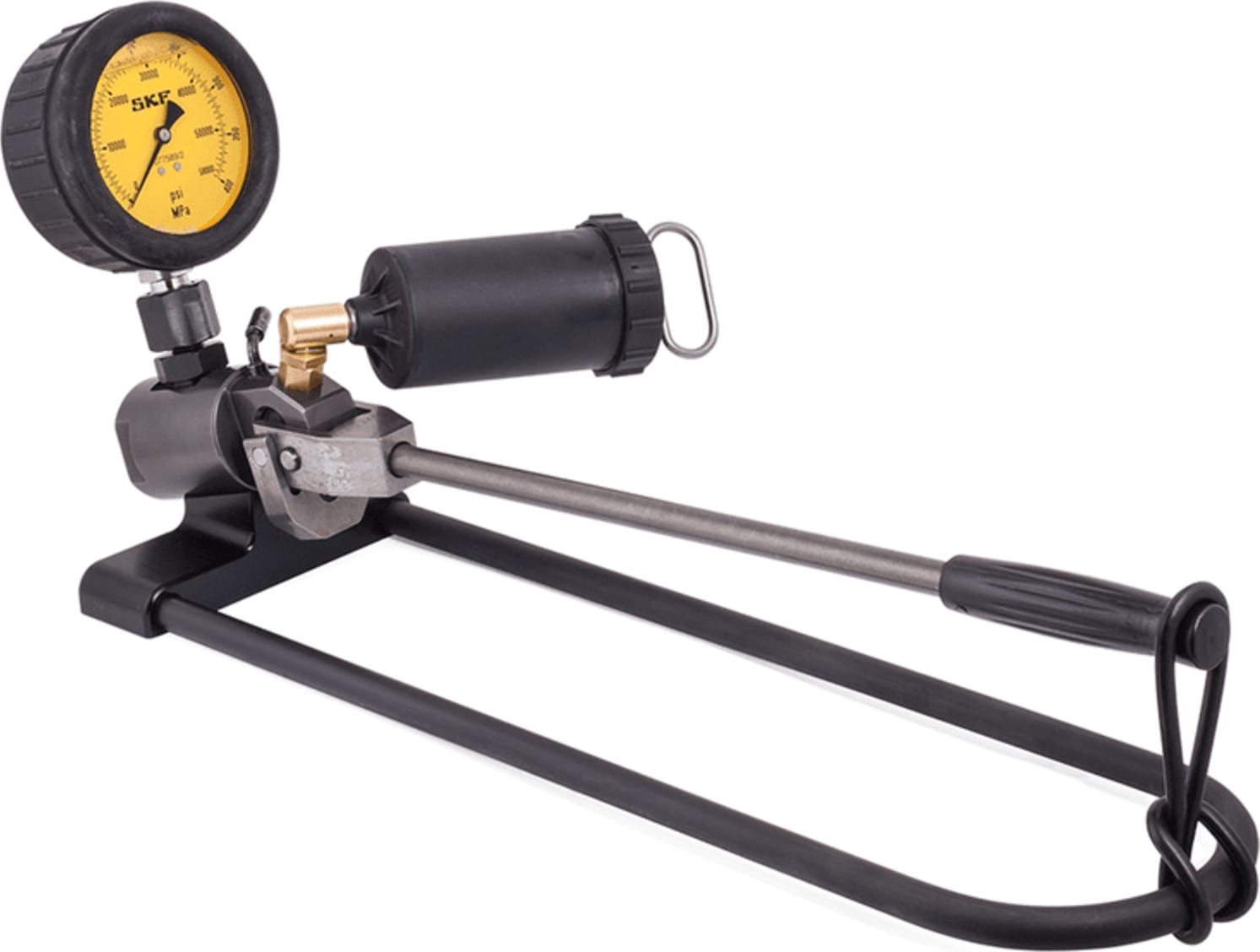

The SKF THKI 300 is used for the mounting and dismounting of pressure joints of all sizes and applications such as rolling bearings, couplings, gears, flywheels and railway wheels. The set consists of a stand-mounted oil injector complete with a high pressure pipe, pressure gauge and a range of connection nipples.

General Specifications
Injection Set	THKI 300
Maximum pressure	300 MPa (43 500 psi.)
Volume per stroke	0,23 cm³ (0.014 in³)
Oil reservoir capacity	200 cm³ (12.2 in³)
Weight	7 kg (16 lb)
Pressure gauge	1077589
Diameter	100 mm (4 in)
Accuracy	1% of full scale
High pressure pipe	227957 A/400MP
Length	2 m (78 in
Outer diameter	6 mm (0.24 in)
Connection thread	G ^1/4
