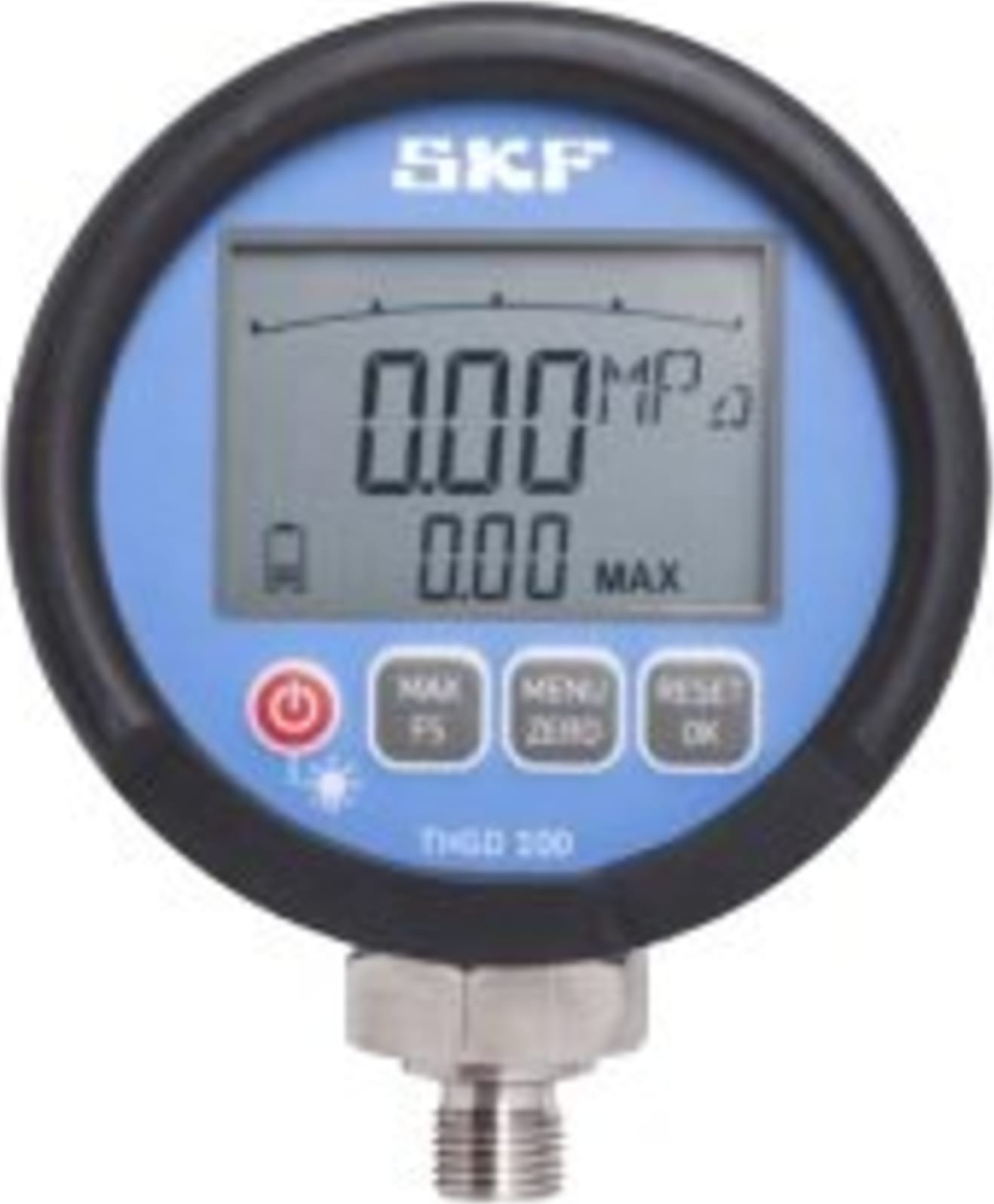

SKF THGD 100 Digital Oil Pressure Gauge, 0-100MPa, 79mm

0 reviews | UPC: 7316575611323 | Model: SKF THGD 100

Compare

Digital oil pressure gauge, 0-100MPa (14500 psi), 79mm

Large LCD display with digital and bar graph indication
With a high ingress protection level of IP 67, it can be used in most industrial environments
User selectable auto-off function helps safe battery life
Back lit display for use in dark environments

View Product Details

List Price: $2,739.28

Your Price: $1,390.73

In Stock:

Free shipping over $99 - Code: FREESHIP
Please note, FREE SHIPPING is only available on items that can ship via standard ground shipping and is only valid within the Contiguous United States. Any items that must ship via freight or to any destination outside of the Contiguous United States will be excluded. - USE CODE FREESHIP at checkout

Valid on Web Price Only!
View Payment Options

Request Quote

Items in This Series



Product	SKF THGD 100 Digital oil pressure gauge, 0-100MPa (14500 psi), 79mm	SKF 1077587 Pressure gauge, 0-100 MPa, 0-14500 psi, G 1/2	SKF 1077589 Pressure Gauge 0–300 MPa, 0–43500 psi, G 1/2	SKF 1077587/2 Pressure Gauges, 0-100 MPa, 0-14500 psi, G 1/4	SKF 1077589/3 Pressure gauge, 0-400 MPa, 0-58000 psi, G 1/2
Price
In Stock
Compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare

Recommended for you

SKF THGD 100 - Digital Oil Pressure Gauge, 0-100 MPa (14500 psi), 79mm

Large LCD display with digital and bar graph indication
With a high ingress protection level of IP 67, it can be used in most industrial environments
User selectable auto-off function helps safe battery life
Back lit display for use in dark environments

The Digital oil pressure gauge, THGD 100, is used to accurately measure the hydraulic pressure when mounting bearings using the SKF Drive-up Method. The gauge is also suitable for other applications where the pressure has to be determined with high accuracy, up to pressures of 100 MPa (15 000 psi).

Pressure range, accuracy and resolution
Pressure range	0 - 100 MPa (14500 psi)
Accuracy	± 0.1% FS max.
Display resolution	0.01 MPa / 1 psi
Weight and dimensions
Weight	540 g (19 oz)
Dimensions Ø x d x h	79 x 33 x 118 mm (3 x 1.3 x 4.6 in) (Without rubber protection sleeve)
Operating and storage conditions
Operating temperature	0 / 50 °C
Fluid temperature	-20 / 80 °C
Storage temperature	-20 / 60 °C
Rel. humidity	< 85%
Environmental operating limits
Protection	IP 67 (EN 60529)
Vibration	10500 Hz / 5 g (IEC 60068-2-6)
Shock	25 g / 11 ms (IEC 60068-2-29)
Reliability Cycles	100 million
Battery type and life time (typical)
Type	2 x LR6 (AA) alkaline batteries
Life time	1500 hours, (100 hours with back light function)
Maximum working, overload and burst pressure
Maximum working pressure	100 MPa (14500 psi)
Maximum overload pressure	120 MPa (17400 psi)
