SKF Vibracon Applications
- Concrete mounting kit: SKF Vibracon and a sole plate are matched to suit components mounted on concrete.
- Slotted elements: Industrial repair applications where the anchor bolt and the machine cannot be moved. This applies typically to shore based engines and motors where the elements have to be installed as a traditional shim.
- Shock hardened: Elements for the Grade A Shock (MIL-S-901D) environments.
- Additional bottom ring: For installations with larger gaps between machine foot and foundation.
- Spherical washer: Compensating angular deviations between bolt and foundation. Saves costly spot facing of mating areas.
- Stopper: To avoid costly and time-consuming installation of fitted bolts.
SKF Vibracon Advantage

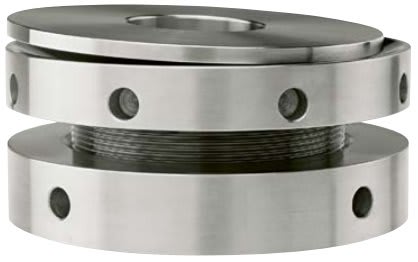

SKF Vibracon elements are permanent, strong and re-usable machinery mounting chocks for all types of rotating or critically aligned machinery. SKF Vibracon mounts are mechanically stiff elements that make accurate mounting simple and quick.
SKF Vibracon advantages are the absence of curing time, as with epoxy resin chocks, it eliminates the trial and error alignment process characteristic for the “mill and shim” method and adjustability during the life cycle of the machinery.
SKF Vibracon has many configurations and material options to satisfy technical concerns, in end user environments and production line costs.
All SKF Vibracon elements include the spherical top plate and mating middle section. This self leveling configuration accommodates the angular differences that are inherent with mounting surfaces. The height adjustment feature has the greatest range in the industry, which makes SKF Vibracon easy to install.
SKF Vibracon elements are the most economical means to establish a perfect mounting plane. SKF Vibracon advantage is the capability to perfectly create the mounting plane within minutes and repeatedly for production or service managers and accountants.
SKF Vibracon can help save costs in:
- Industrial applications
- Marine applications
- Offshore applications
- Military and navy applications
