Complete System
• Measure distance: Up to 10 m (33.0 ft.)
• Relative humidity: 10 to 90%
• Temperature range: –10 to +50 °C (14 to 122 °F)
• Weight (with case): 7.64 kg (16.84 lb.)

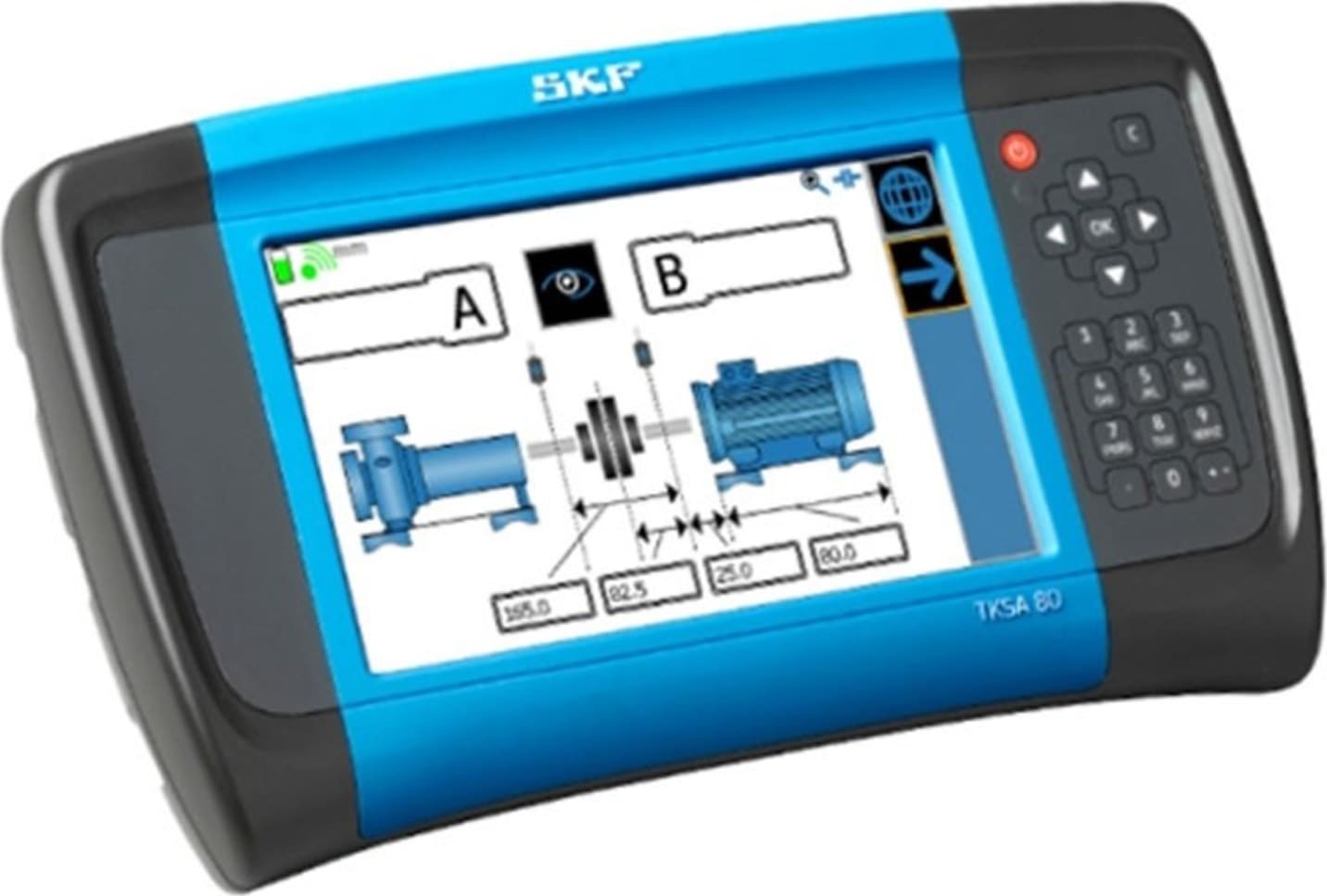

Display unit
• Display: Seven inch backlit color LCD, daylight viewable with touch
screen and keypad
• Power: Rechargeable Li-ion battery and external power supply
• Operating time on battery: Typical ten hours continuous operation
• Storage memory: 64 MB
• Housing: PC / ABS plastic with integrated lockable stand
• Dimensions (height × width × depth): 276 × 160 × 53 mm (10.9 × 6.3 × 2.1 in.)
• Weight: 1 060 g (37.4 oz.)
• Environment protection: IP 65
• Connectivity: Low-power, industrial wireless network, 802.15.4
compliant
– USB: Host v1.1, device v1.1
• Drop test: 1.2 m (3.9 ft.) to MIL-STD-810F

Measuring units (A, B)
• Type of laser: Red diode laser
• Laser wavelength: 635 nm
• Laser safety class: Class II
• Laser output power: <1 mW
• Displacement measurement accuracy: ±5 μm, ±0,5%
• Detector: Linear CCD with length 36 mm (1.4 in.)
• Relative accelerometer accuracy*: ±0.1° (at 24 °C / 75 °F)
• Accelerometer resolution: 0.1°
• Thermal sensors: ±2 °C (±3.5 °F)
• Housing material: Chassis, aluminum sides, glass filled PBT
• Dimensions (height × width × depth): 96 × 93 × 36 mm (3.8 × 3.7 × 1.4 in.)
• Weight: 326 g (11.5 oz.)
• Environment protection: IP 65
• Ambient light protection: Optical filtering and ambient light signal rejection
• Power supply: 2x AA alkaline batteries or rechargeable battery

* Relative accelerometer accuracy is the difference between the angles reported by the two measurement units when held at the same absolute angle.

Rod / fixing bar
• Length: 4 off 90 mm, 4 off 150 mm, can be screwed together to increase length

Standard shaft diameter
• Up to 300 mm (11.8 in.)
