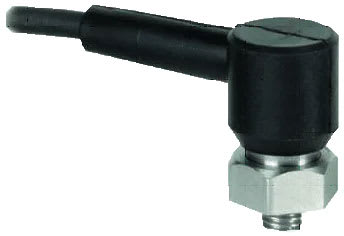

SKF CMSS-WIND-400-10 - Small Accelerometer with Integral Cable and Side Exit (65.6 ft)

0 reviews | UPC: 7316574351480 | Model: SKF CMSS-WIND-400-10

Compare

CONDITION MONITORING

20m (65.6ft) length
For use with all SKF on-line surveillance systems
100 mV/g sensitivity
Meets CE, EMC requirements
High resistance to electrical noise
Low profile integral cable accelerometer
Compact design ideal for mounting with limited space
Corrosion-resistant

View Product Details

List Price: $1,193.11

Your Price: $588.10

In Stock:

Free shipping over $99 - Code: FREESHIP
Please note, FREE SHIPPING is only available on items that can ship via standard ground shipping and is only valid within the Contiguous United States. Any items that must ship via freight or to any destination outside of the Contiguous United States will be excluded. - USE CODE FREESHIP at checkout

Valid on Web Price Only!
View Payment Options

Request Quote

Non-Cancellable / Non-Returnable

Recommended for you

SKF CMSS-WIND-400-10 - Small Accelerometer with Integral Cable and Side Exit (65.6 ft)

20m (65.6ft) length
For use with all SKF on-line surveillance systems
100 mV/g sensitivity
Meets CE, EMC requirements
High resistance to electrical noise

The CMSS WIND-400-10 is a compact accelerometer commonly used in the following applications:

Wind turbine gearboxes
Wind turbine generators

The small-size accelerometer is specially configured for unobtrusive mounting on wind turbine drive components, within the relatively protected environment of the turbine’s nacelle. An integral cable is used to eliminate any cause to travel to a remote site to fix a loose connector.

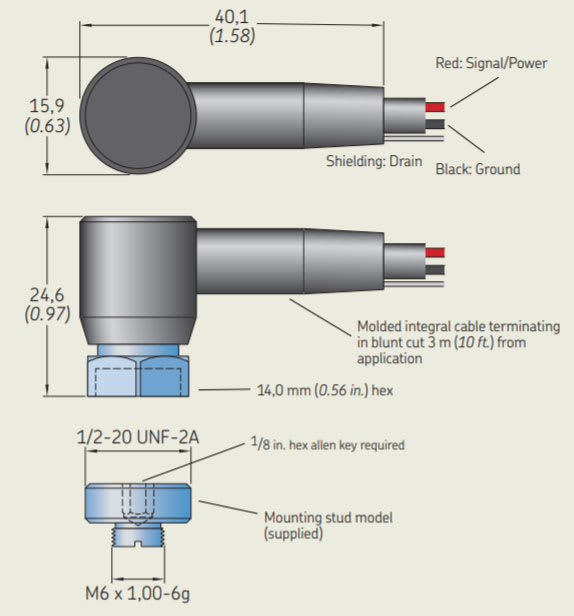

Dimensions

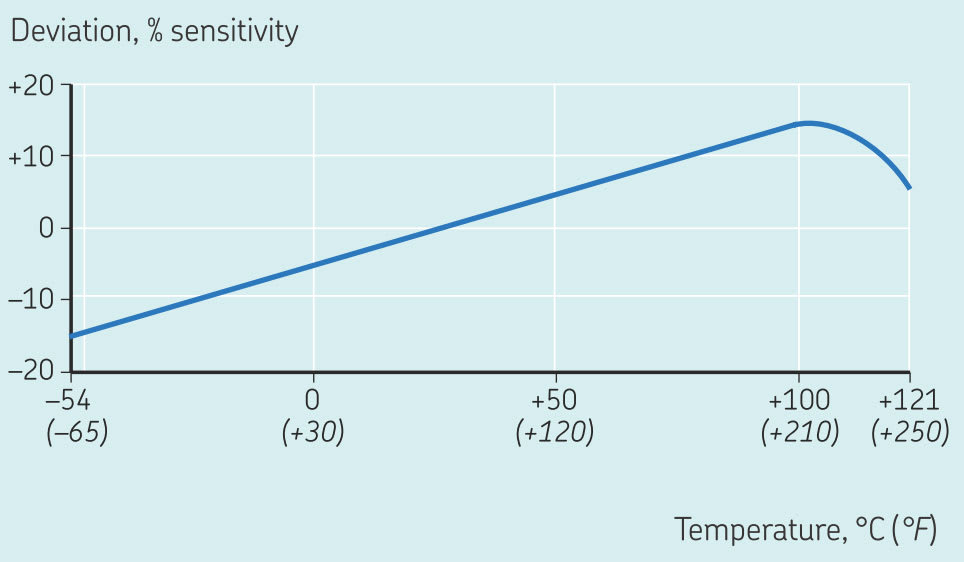

Typical Temperature Response

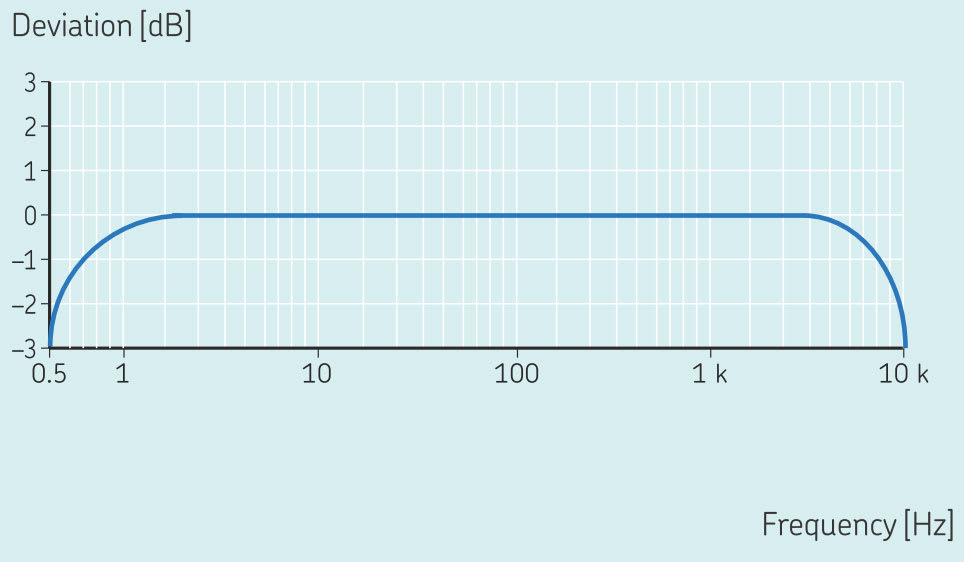

Typical Frequency Response

Specifications based on low profile industrial constant current accelerometer, 100 mV/g, 0.5 to 10 000 Hz, side exit, 3m (10 ft.) integral cable and swiveled base.

Dynamic
Sensitivity	100 mV/g
Sensitivity precision	±15% at 24 °C (75 °F)
Acceleration range	50 g peak
Amplitude linearity	±1%
Frequency range	+/- 3dB: 0,5 Hz to 10 kHz (30 to 600 000 cpm)
Resonance frequency, mounted, nominal	25 kHz (1 500 kcpm)
Transverse sensitivity	≤ 7%
Temperature response	See graph
Electrical
Power requirements	- Voltage source: 18 to 28 V DC - Constant current diode: 2 to 20 mA
Electrical noise	- Spectral: Output impedance: < 150 Ω
Bias output voltage	8 to 12 V DC
Electrical isolation (case)	> 108 Ω
Environmental
Temperature range	-55 to +120 °C (-65 to +250 °F)
Shock limit	5 000 g peak
Sealing	Welded hermetic
CE	According to the generic immunity standard for Industrial Environment EN 50082-2 - Acceptance criteria: The generated false equivalent g level under the above test conditions should be less than 2 mg measured peak to peak
Physical
Dimensions	See drawing
Weight	31 g (1.1 oz.)
Case material	316L Stainless steel, with molded integral cable
Enclosure rating	IP 68
Sensing element	Ceramic, shear
Mounting	Threaded stud 1/4-28 male
Mounting torque	- Stud: 9.5 to 10.8 Nm (7 to 8 ft. lbs.) - Hex nut: 2.7 to 6.8 Nm (2 to 5 ft. lbs.)
Connection	Molded integral cable, side
Cable type	Integral FEP cable, stainless steel overbraid

Tech Specs

Test Equipment General Attributes
Unique Features	Meets CE, EMC requirements
Safety Approval	CE
IP Rating	IP68
Product Height	5.00 IN
Product Length	65.6 IN
Product Width	6.00 IN
Shipping Weight	0.89 LBS
Shipping Height	5.00 IN
Shipping Length	1.00 IN
Shipping Width	6.00 IN
