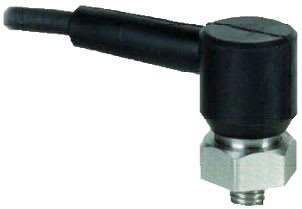

SKF CMSS-100-20 - Small Accelerometer with Integral Cable, Side Exit

0 reviews | UPC: 7316576733345 | Model: SKF CMSS-WIND-100-20

Compare

CONDITION MONITORING

Cannot Ship Air

For use with all SKF on-line surveillance systems
100 mV/g sensitivity
Meets CE, EMC requirements
High resistance to electrical noise
Low profile integral cable accelerometer
Compact design ideal for mounting with limited space
Corrosion resistant

View Product Details

List Price: $2,679.13

Your Price: $1,320.58

In Stock:

View Payment Options

Request Quote

Non-Cancellable / Non-Returnable

Items in This Series



Product	SKF CMSS-WIND-100-20 CONDITION MONITORING	SKF CMSS VZ-03A-3 CONDITION MONITORING	SKF CMSS 942-LCI-SY-05M 5m Yellow Cable, 1XSHLD, Locking Collar Connector	SKF CMSS 942-LCN-DY-20M 20m Yellow Cable, 2XSHLD, Locking Collar Connector
Price
In Stock
Compare	Add to compare	Add to compare	Add to compare	Add to compare

Recommended for you

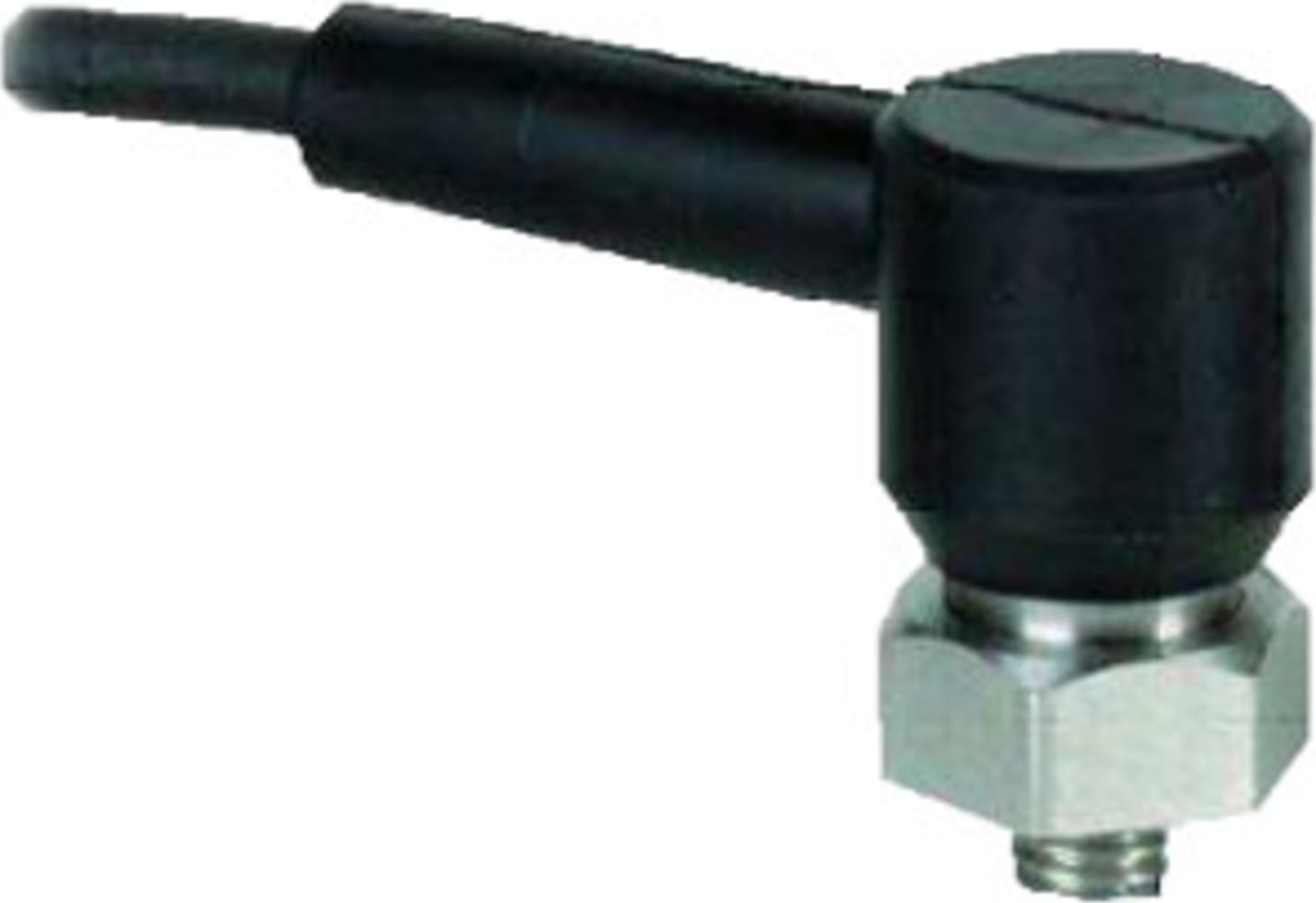

SKF CMSS-100-20 - Small Accelerometer with Integral Cable, Side Exit

For use with all SKF on-line surveillance systems
100 mV/g sensitivity
Meets CE, EMC requirements
High resistance to electrical noise
Low profile integral cable accelerometer

The CMSS WIND-100-20 is a compact accelerometer commonly used in the following applications: Wind turbine gearboxes, Wind turbine generators. The small-size accelerometer is specially configured for unobtrusive mounting on wind turbine drive components, within the relatively protected environment of the turbine’s nacelle. An integral cable is used to eliminate any cause to travel to a remote site to ix a loose connector.

Specifications based on low profile industrial constant current accelerometer, 100 mV/g, 0,5 to 10 000 Hz, side exit, 3 m (10 ft.) integral cable and swiveled base.

Dynamic
Sensitivity	100 mV/g
Sensitivity Precision	±15% at 24 °C (75 °F)
Acceleration Range	50 g peak
Amplitude Linearity	±1%
Frequency Range	+/- 3dB: 0,5 Hz to 10 kHz (30 to 600 000 cpm)
Resonance Frequency, Mounted Nominal	25 kHz (1 500 kcpm)
Transverse Sensitivity	≤ 7%
Temperature Response	See graph

Electrical

Power Requirement Voltage Source: Constant Current Diode:
	18 to 28 V DC
	2 to 20 mA
Electrical Noise Spectral Output Impedance:


Bias Output Voltage
Electrical Isolation (case)
Environmental
Temperature Range	–55 to +120 °C (–65 to +250 °F)
Shock Limit	5 000 g peak
Sealing	Welded hermetic
CE	According to the generic immunity standard for Industrial Environment EN 50082-2
Acceptance criteria: The generated “false equivalent g level” under the above test conditions should be less than 2 mg measured peak to peak

Physical

Dimensions	See drawing
Weight	31 g (1.1 oz.)
Case Material	316L Stainless steel, with molded integral cable
Enclosure Rating	IP 68
Sensing Element	Ceramic, shear
Mounting	Threaded stud 1/4-28 male
Mounting Torque Stud Hex Nut
	9.5 to 10.8 Nm (7 to 8 ft. lbs.)
	2.7 to 6.8 Nm (2 to 5 ft. lbs.)
Connection	Molded integral cable, side
Cable Type	Integral FEP cable, stainless steel overbraid
