SKF CMSS 933-SY-150M - Bulk Cable Three-Conductor, Triad, Single Shield, Yellow Spool (500 ft.)

0 reviews | UPC: 7316574949038 | Model: SKF CMSS 933-SY-150M

Compare

CONDITION MONITORING

Three-conductor
Triad
Single shield
Yellow cable with continuous cable length
150 m (500 ft.) length spool

View Product Details

List Price: $3,468.83

Your Price: $1,709.83

In Stock:

Free shipping over $99 - Code: FREESHIP
Please note, FREE SHIPPING is only available on items that can ship via standard ground shipping and is only valid within the Contiguous United States. Any items that must ship via freight or to any destination outside of the Contiguous United States will be excluded. - USE CODE FREESHIP at checkout

Valid on Web Price Only!
View Payment Options

Request Quote

Non-Cancellable / Non-Returnable

Recommended for you

SKF CMSS 933-SY-150M - Bulk Cable Three-Conductor, Triad, Single Shield, Yellow Spool (500 ft.)

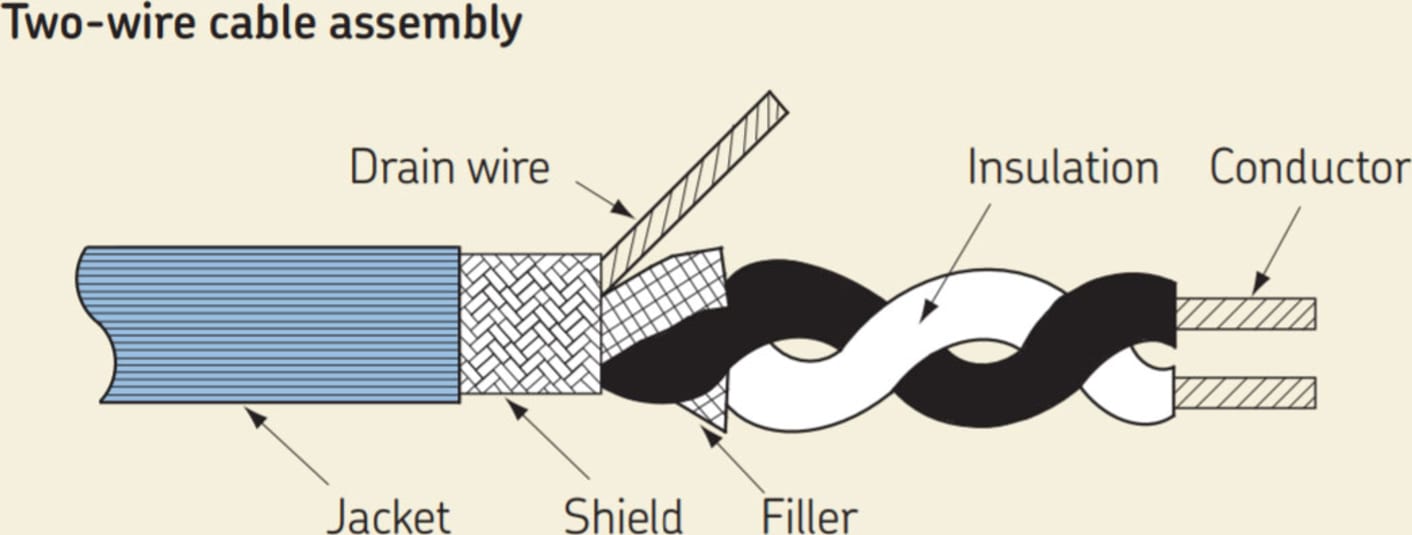

CMSS 932 is a single or double shielded, twisted pair cable with the conductors individually insulated with a fluorine-based polymer, a braided shield with drain wire, and an outer insulated jacket also made of a fluorine-based polymer. Two insulated conductors are cabled together with one un-insulated drain wire and two glass cord fillers. The double-shielded option adds an inner shield of aluminum polyester foil with drain wire.

The CMSS 933 cable has the same characteristics as the CMSS 932 cable, except it is a three-wire version for use with dual temperature and vibration sensors. This cable does not have a double-shielded option. There are two wire colors (jacket) available:

Yellow: For high visibility in the often dusty and debris laden industrial environment
Blue: For use in intrinsically safe circuits in the Oil/Gas and Hydrocarbon Processing industries

Recommended uses

The single shield cable is recommended for use with sensors in normal industrial applications where these cable types have been historically used and installed.

The double shield cable is highly recommended for use with sensors in industrial installations where there is a high noise field, such as machine tools and power generating facilities.

Color code:
- Conductor: Black and white pair
- Jacket: Yellow (Y) or blue (B)
Color code for CMSS 932:
- A = White = Acceleration signal/power
- B = Black = Common
Color code for CMSS 933:
- A = Red = Acceleration signal/power
- B = Black = Acceleration and temperature common
- C = White = Temperature signal
Dimensions:
- Conductor: 0.96 mm (0 038 in) nominal
- Insulation: 1.40 mm (0 058 in) nominal
- Drain wire: 0.61 mm (0 024 in) nominal
- Shield: 3.50 mm (0 138 in) nominal
- Jacket: 4.80 mm, ±0,1 mm (0 190 in , ±0 005 in)

Electrical
Capacitance	Approximately 89 pF/m (27 pF/ft.)
Voltage rating	600 V RMS maximum continuous use Environmental
Environmental
Minimum bend radius	48 mm (1.9 in.)
Working temperature range	-80 to +200 °C (-110 to +390 °F)
Heat and lame resistance	Non-lame propagating
Plenum rated	Yes
Meets ROHS requirements	Yes
Physical
Materials	- Conductor: Tin plated copper, 19 x 32 strands, size 20 AWG (American Wire Gauge) - Insulation: Extruded FEP - Drain wire: Tin plated copper, 7 x 32 strands, size 24 AWG - Shield: 36 AWG tin plated copper braid - Jacket: Extruded FEP

Test Equipment General Attributes
Unique Features	500 ft spool
Safety Approval	RoHS
Product Height	11.00 IN
Product Length	7.00 IN
Product Width	11.00 IN
Shipping Weight	20.89 LBS
Shipping Height	11.00 IN
Shipping Length	7.00 IN
Shipping Width	11.00 IN
