| Dynamic |
| Sensitivity |
100 mV/g |
| Sensitivity precision |
±5% at 24 °C (75 °F) |
| Acceleration range |
60 g peak |
| Amplitude linearity |
1% |

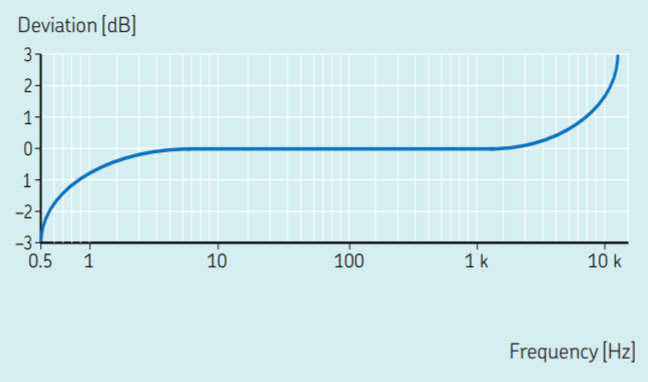

| Frequency range |
- ±5%: 3,0 to 5 000 Hz
- ±10%: 1,0 to 7 000 Hz
- ±3 dB: 0,5 to 12 000 Hz |
| Resonance frequency, mounted, nominal |
30 kHz |
| Transverse sensitivity |
≤ 5% of axial |

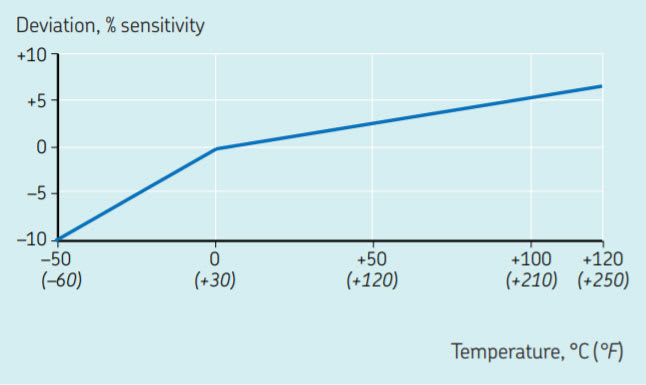

| Temperature response |
See graph |
| Temperature output sensitivity |
±1,5 °C (±2.7 °F): 10 mV/°C (18 mV/°F) |
| Temperature measurement range |
2 to 120 °C (36 to 250 °F) |
| Environmental |
| Temperature range |
-50 to +120 °C (-60 to +250 °F) operating temperature |
| Vibration limit |
500 g peak |
| Shock limit |
5 000 g peak |
| Electromagnetic sensitivity, equivalent g, maximum |
70 µg/gauss |
| Sealing |
Hermetic |
| Base strain sensitivity |
0,0002 g/µstrain |
| Certifications |
CE, CSA, and ATEX (see table) |
| CE |
According to the generic immunity standard for Industrial Environment EN 50082-2 - Acceptance criteria: The generated false equivalent g level under the above test conditions should be less than 2 mg measured peak to peak |
| Physical |

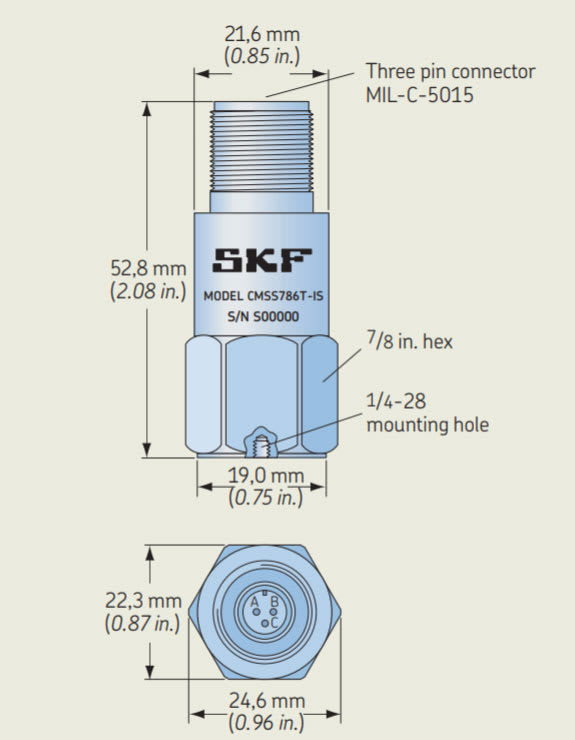

| Dimensions |
See drawing |
| Weight |
90 g (3.2 oz.) |
| Case material |
316L stainless steel |
| Mounting |
- Internal 1/4-28 thread
- M8 x 1,25 and 1/4-28 to 1/4-28 mounting studs provided |
| Mounting torque |
2,9 Nm (24 in. lbs.) |
| Connections |
- Pin A: Accelerometer signal/power
- Pin B: Accelerometer and temperature signal common
- Pin C: Temperature sensor signal |
| Mating connector |
CMSS 933-68LC or CMSS 933-68TL, three-pin, IP 68 locking collar or twist-lock or three-pin MIL-C-5015 style |
| Recommended cable |
CMSS 933-SY-XXM, three conductors, triad cable, single shielded, yellow |
| Agency approvals for hazardous area |
| CMSS 786T-IS |
CSA |
Intrinsically Safe
Class I, Zone 0, AEx / Ex ia IIC; T4 |
CSA |
Class I, Division 1, Groups A, B, C, D
Class II, Division 1, Groups E, F, G
Class III, Division 1 |
KEMA |
ATEX Zone 0
II 1 G Ex ia IIC; T4
Must be installed per drawing 12882 |
| CMSS 786T-D2 |
CSA |
Non-incendive
Class I, Division 2, Groups A, B, C, D
Class I, Zone 2, Ex nA II;T4 |
KEMA |
ATEX Zone 2
II 3 G Ex nA II;T4
Must be installed per drawing 13032 |
