SKF CMSS 65-002-00-08-5A Eddy Current Probe

Name: SKF CMSS 65-002-00-08-5A Eddy Current Probe
Brand: SKF
SKU: SKFCMSS 65-002-00-08-5A
Price: 438.00 USD
Availability: InStock

0 reviews | UPC: 7316573963073 | Model: SKF CMSS 65-002-00-08-5A

Compare

Standard Eddy Current Probe, 1/4-28 Threads, 0.5m Overall Length

Probes, extension cables and drivers are compliant to API 670 requirement and may be interchanged with 5% or less performance change without recalibration
All units are factory calibrated at 23 °C (73 °F)
Trim calibration adjustment on driver provides duplication of characteristics after replacement of any component

View Product Details

List Price: $888.60

In Stock:

View Payment Options

Recommended for you

SKFCMSS 65-002-00-08-5A

Eddy Current Probe

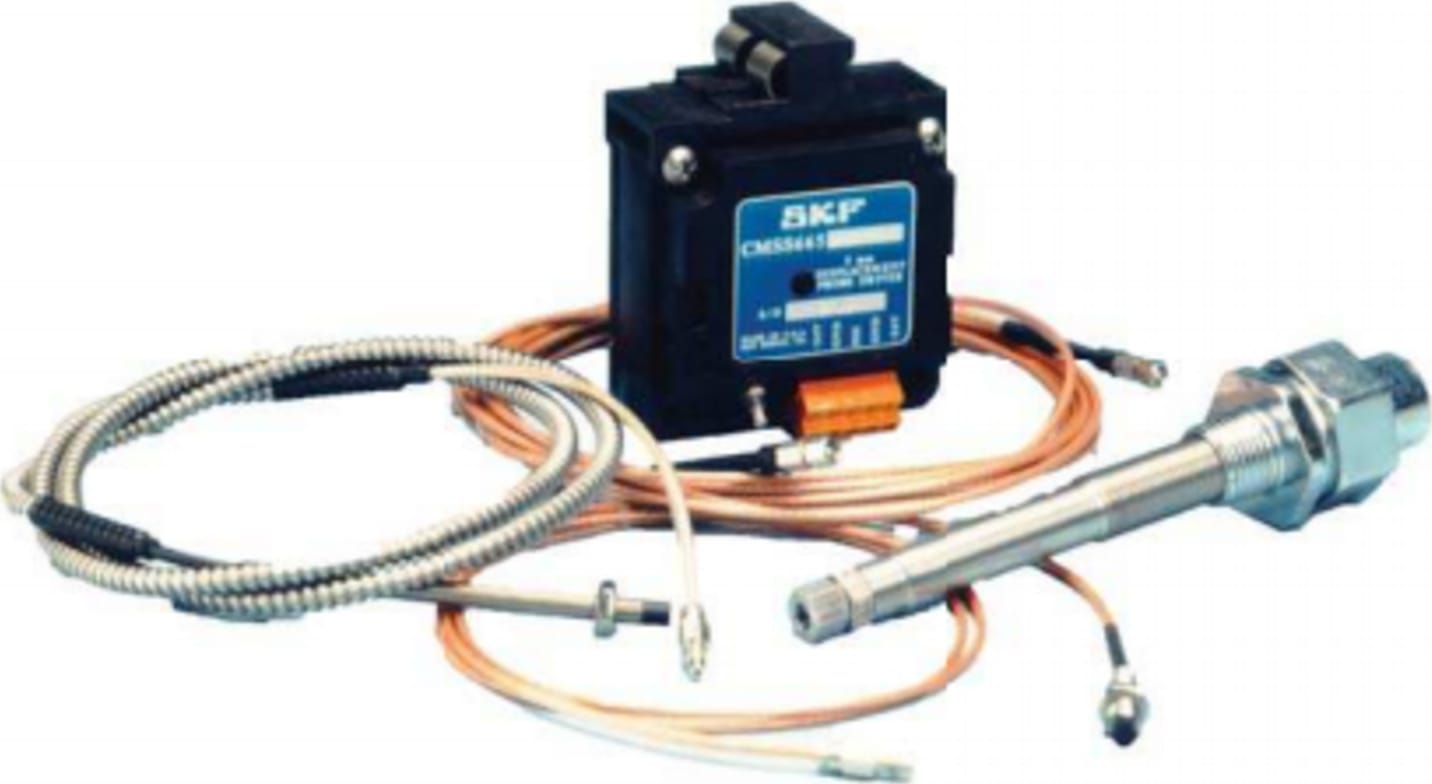

The eddy probe SKFCMSS 65-002-00-08-5A is used to measure radial or axial shaft motion. It is mounted through or to the side of a bearing cap and observes the shaft’s movement relative to its mounting position. An eddy probe system comprises a probe, a driver (oscillator demodulator) and an optional extension cable. Eddy probe systems have excellent frequency response. They have no lower frequency limit and are used to measure shaft axial position as well as vibration.

Technical details
Cable	Standard
Case	1/4-28 Threads
Unthreaded case length	Fully threaded
Case length	2.0 cm (0.8 in.)
Overall length	5.0 m (16.4 ft.)
Electrical
Usable range	2 mm (0.2 to 2.3 mm); 80 mils (10 to 90 mils)
Sensitivity	7.87 mV/μm (200 mV/mil)
Linearity	±25.4 μm (1 mil) of best straight line over 2 mm (80 mil) range
Frequency range	DC to 10 kHz (600 000 CPM), down maximum of 3 dB at 10 kHz
Driver signal output impedance	Minimum calibrated load resistance of 3 kΩ; output is protected against miswiring
Driver signal output voltage	Nominal 7.87 mV/μm (200 mV/mil) corresponding to –18 V DC at 2.3 mm (90 mils) with –24 V DC supply
Power supply requirements	15 mA from –24 to –30 V DC
Environmental and mechanical
Operating temperature range	–35 to +175 °C (–30 to +350 °F)
Differential pressure	To 4 bar (60 PSI)
Materials
Case	Grade 300 stainless steel
Tip material	Ryton
Connectors	Nickel plated stainless steel; weatherproof, sealable
Cable	Coaxial with fluorine based polymer insulation; high tensile and flexible strength
Mounting	Recommend minimum clearance of 1/2 probe tip diameter around the probe tip to maintain factory calibration

Test Equipment General Attributes
Unique Features	0.5m overall length
Product Weight	0.6768 LBS
Product Height	2.00 IN
Product Length	0.5 M (19.69 IN)
Product Width	7.00 IN
Country of Origin	United States
Shipping Height	2.00 IN
Shipping Length	9.00 IN
Shipping Width	7.00 IN
