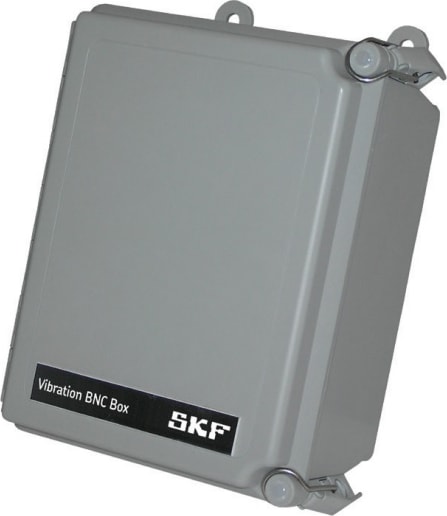

SKF CMSS 300SS-06-02 BNC Junction Box

The CMSS 300 series BNC junction boxes are multiple channel connecting centers for terminating the outputs of accelerometers or other transducer field wiring. They are normally located in close proximity to the machine to reduce wiring cost and provide convenient access to the vibration signal by a portable data collector/analyzer.

SKF's junction boxes and enclosures have UL 50, UL 508 A, UL 508, NEMA/EEMAC, JIC, CSA and IEC 60529 industry standard ratings and most are made with painted steel, fibreglass or stainless steel.

Both internal and external switch/BNC models are available. Internal models are provided with quick access latches and external models with screw covers and protective caps for the BNC fitting. In harsh environments internal models should be specified. Black and white bezel tagging is provided for channel and switch identification.

The CMSS 300SS NEMA 4X stainless steel enclosure is constructed from 14 gauge 304 stainless steel.
