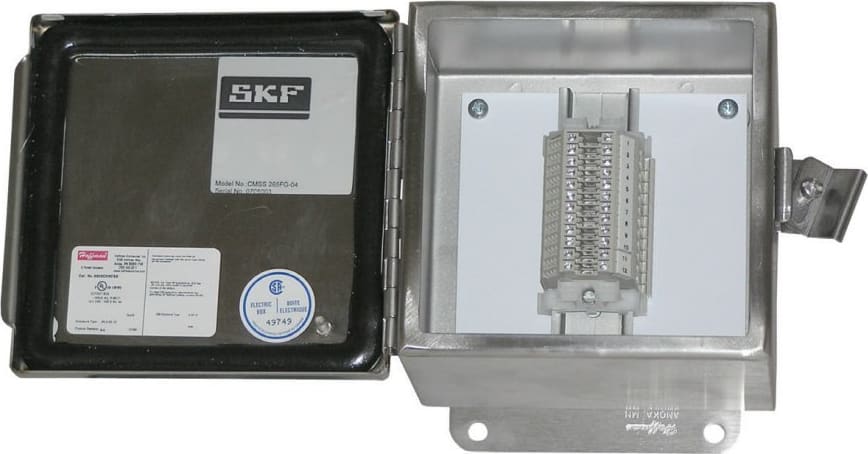

SKF CMSS 265PS-12 Termination Junction Box

The CMSS 265 series termination junction boxes are multiple channel connecting centers for terminating the outputs of accelerometers or other transducer field wiring. Crew clamp, DIN-rail mounted terminals (three inputs per channel, usually signal, common and shield) are provided for the intermediate termination of accelerometers, proximity probes, speed sensors, RTDs and other transducers.

SKF's junction boxes and enclosures have UL 50, UL 508 A, UL 508, NEMA/EEMAC, JIC, CSA and IEC 60529 industry standard ratings and most are made with painted steel, fibreglass or stainless steel.

The CMSS 265PS NEMA 4 enclosure is constructed of 14 gauge mild steel and is ANSI 61 gray polyester powder coated on the all surfaces. A seamless foam in-place gasket assures a watertight and dust-tight seal.
