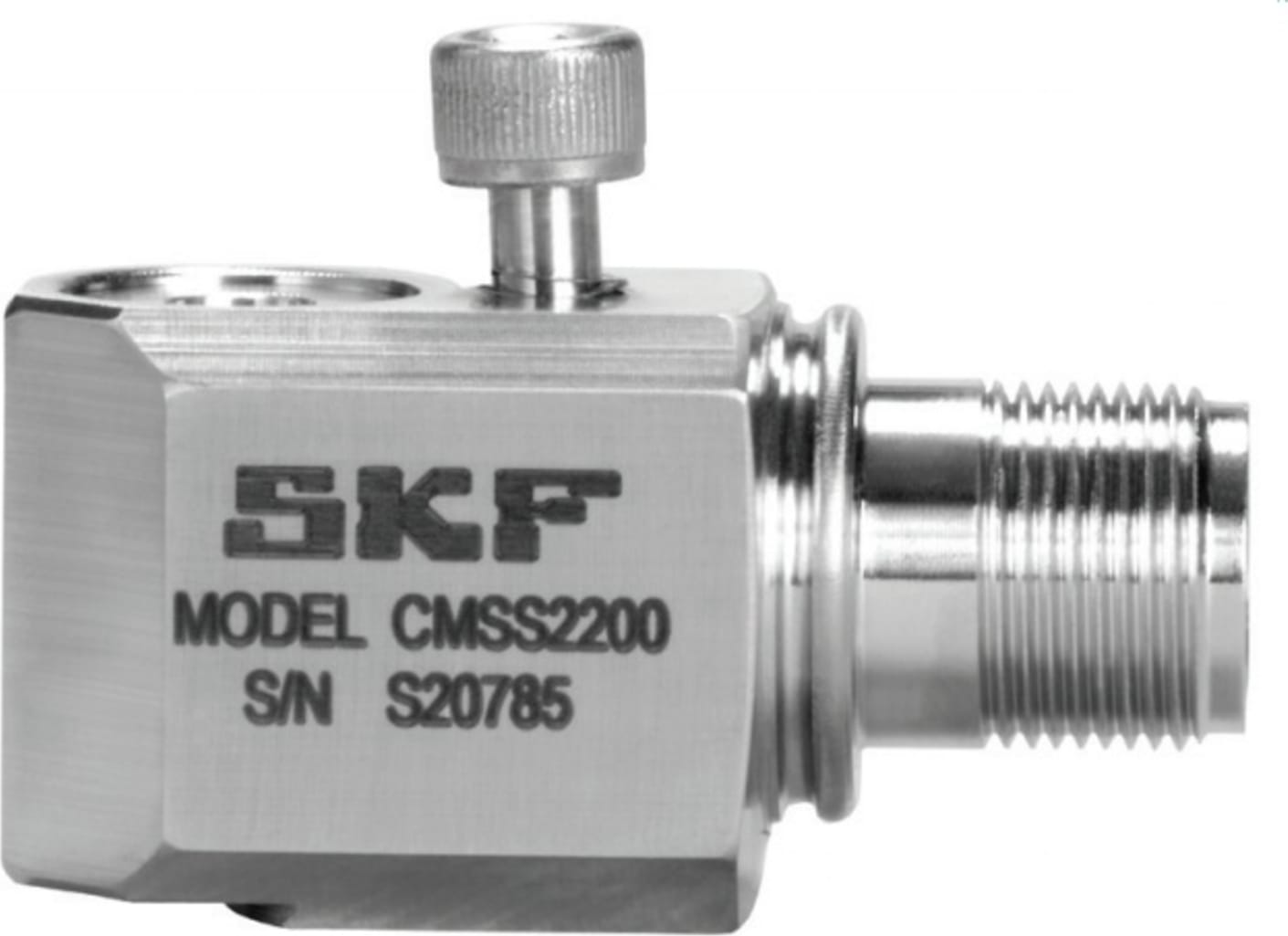

SKF CMSS 2200 Industrial accelerometer

5 (1 Review) | UPC: 7316571280363 | Model: SKF CMSS 2200

Compare

General purpose, low profile, side exit industrial accelerometer

For use with the SKF junction boxes, on-line systems, protection
Systems and the portable data collection Instruments
Rugged, economical and all around general purpose sensor
Sensitivity, 100 mV/g to optimize use in multiple applications
Exceptional bias voltage (BV) stability at elevated temperatures
Designed for exceptional low noise level for low frequencies at elevated temperatures
Meets stringent CE, EMC requirements
Low profile for side industrial accelerometer with captive mounting bolts (1/4-28, M6 × 1.00 or M8 × 1,25) provided
Corrosion resistant and hermetically sealed
Reverse polarity wiring protection

View Product Details

List Price: $902.92

Your Price: $458.42

In Stock:

Free shipping over $99 - Code: FREESHIP
Please note, FREE SHIPPING is only available on items that can ship via standard ground shipping and is only valid within the Contiguous United States. Any items that must ship via freight or to any destination outside of the Contiguous United States will be excluded. - USE CODE FREESHIP at checkout

Valid on Web Price Only!
View Payment Options

Request Quote

Non-Cancellable / Non-Returnable

Recommended for you

SKF CMSS 2200 - General Purpose, Low Profile, Side Exit Industrial Accelerometer

For use with the SKF junction boxes, on-line systems, protection
Systems and the portable data collection Instruments
Rugged, economical and all around general purpose sensor
Sensitivity, 100 mV/g to optimize use in multiple applications
Exceptional bias voltage (BV) stability at elevated temperatures
Designed for exceptional low noise level for low frequencies at elevated temperatures
Meets stringent CE, EMC requirements

Accelerometers sense vibration commonly found in most industrial machinery. Applications for acceleration and velocity sensors include machinery health monitoring of motors, fans, pumps, gearboxes, blowers, machine tool spindles, compressors, chillers, rollers and mixers. Maintenance professionals use accelerometers for predictive maintenance to lower overall cost and increase machinery performance.

The CMSS 2200 with its side exit two pin connector offers a low profile for machinery with limited clearance. The sensor mounts in any orientation.

Environmental
Temperature range	–50 to +120 °C (–60 to +250 °F), operating temperature
Vibration limits	500 g peak
Shock limit	5 000 g peak
Electromagnetic sensitivity, equivalent g, maximum	70 µg/gauss
Sealing	Hermetic
Base strain sensitivity	200 µg/microstrain
CE	According to the generic immunity standard for Industrial Environment EN50082-2
Acceptance criteria	The generated “false equivalent g level” under the above test conditions should be less than 2 mg peak to peak
Dynamic
Sensitivity	100 mV/g
Sensitivity precision	±5% at 25 °C (75 °F)
Acceleration range	80 g peak
Amplitude linearity	1%
Frequency range	±10%; 1,0 to 5 000 Hz, ±3 dB; 0,7 to 10 000 Hz
Resonance frequency	Mounted, minimum 22 kHz
Transverse sensitivity	≤ 5% of axial
Electrical
Power requirements	Voltage source: 18 to 30 V DC, – Constant current diode: 2 to 10 mA DC, recommended 4 mA
Electrical noise	2,0 Hz; 20 µg/√Hz
Output impedance	< 100 Ω
Bias output voltage	12 V DC
Grounding	Case isolated, internal shielding
Physical
Weight	145 g (5.1 oz.)
Case material	316L stainless steel
Mounting	Captive mounting bolts provided; one 1/4-28 thread and one M6 × 1,00 thread
Mounting torque	3,4 Nm (30 in. lbs.)
Connector	Pin A: Signal/Power, – Pin B: Common
Mating connector	CMSS 3106F-10SL-4S or equivalent
Recommended cable	Two conductor shielded, fluorine based polymer jacket, 100 pF/m (30 pF/ft.)

Test Equipment General Attributes
Safety Approval	CE
Product Weight	145 GRAMS (0.320 LBS)
Product Height	2.00 IN
Product Length	5.00 IN
Product Width	3.00 IN
HTS/Schedule B Number	8544.20.0000
ECCN Number	EAR99
Country of Origin	United States
Shipping Height	2.00 IN
Shipping Length	5.00 IN
Shipping Width	3.00 IN
