| Dynamic |
| Sensitivity |
100 mV/g |
| Sensitivity precision |
±10% at 24 °C (75 °F) |
| Sensitivity deviation over full temperature range |
≤ ±10% |
| Acceleration range |
Minimum ±8 V equivalent to 80 g peak; turn-on time to within 10% of final bias is ≤ 1,0 s |
| Amplitude linearity |
≤ 1%, up to full scale |
| Frequency range |
±3 dB: 0.8 Hz to 10.0 kHz |
| Resonance frequency, mounted |
- Nominal 25 kHz or higher
- Controlled resonance amplitude
- +15 dB maximum at resonance |
| Transverse sensitivity |
≤ 5% of axial |
| Temperature response |
See graph |
| Electrical |
| Power requirements |
- Voltage source: 24 V DC nominal, ±20%
- Constant current diode: 2 to 10 mA, recommend 4 mA |
| Electrical noise |
Broadband (2,5 Hz to 25,0 kHz): < 0,6 mg RMS |
| Output impedance |
< 50 Ω |
| Bias output voltage |
- 12.5 to 13.5 V DC for 24 V DC supply over temperature range -50 to +100 °C (-60 to +210 °F)
- 11.0 to 14.0 V DC for 24 V DC supply over temperature range 100 to 120 °C (210 to 250 °F) |
| Grounding |
- Case isolated, internally shielded (Faraday cage)
- The internal Faraday cage is connected to the signal return of the shielded twisted pair
- The internal shield, as well as the stainless steel braid, is connected to the sensor housing |
| Isolation to sensor housing |
> 10 MΩ over full temperature range |
| Over-voltage protection |
Yes |
| Reverse polarity (wiring) protection |
Yes |
| Environmental |
| Temperature range |
-50 to +120 °C (-60 to +250 °F) operating temperature |
| Vibration limit |
500 g peak |
| Shock limit |
1 000 g peak |
| Electromagnetic sensitivity, equivalent g, maximum |
< 100 µg/gauss at 50 to 60 Hz |
| Base strain sensitivity |
200 µg/µstrain |
| CE |
According to the generic immunity standard for Industrial Environment EN 50082-2 - Acceptance criteria: The generated false equivalent g level under the above test conditions should be less than 2 mg measured peak to peak |
| Physical |

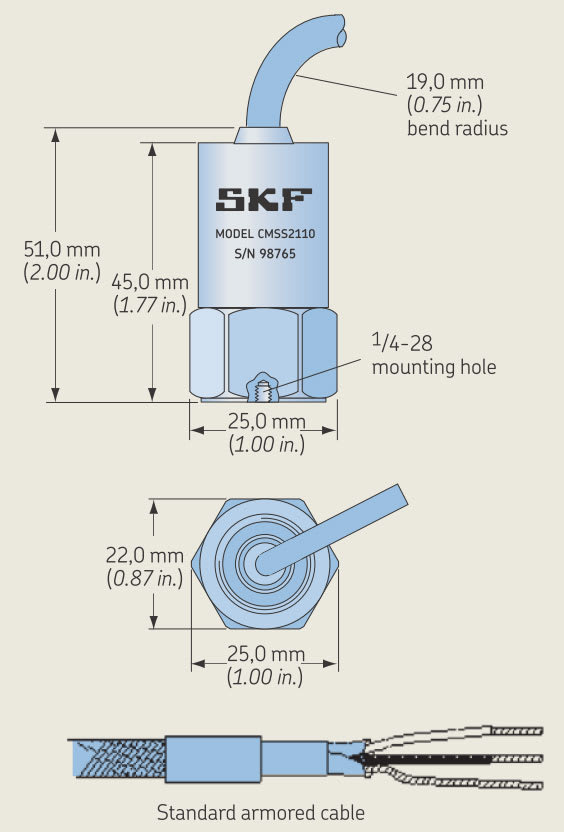

| Dimensions |
See drawing |
| Cable length |
5 m (16.4 ft.) |
| Weight |
350 g (12.4 oz.), including cable |
| Case material |
316L stainless steel |
| Mounting |
- Internal 1/4-28 thread
- M8 × 1.25 and 1/4-28 to 1/4-28 mounting studs provided |
| Mounting torque |
2.9 Nm (24 in. lbs.) |
| Connections |
- Power signal: White
- Common: Black
- Shielding: Drain |
| Cable |
- Integral cable, 5 m (16.4 ft.) long
- Shielded twisted pair; two times AWG 20
- Shield grounded to sensor housing
- Cable armored with 304 stainless steel braid
- Braid also connected to sensor housing
- High temperature cable
- Cable diameter less than 5 mm (0.19 in.) |
| Cable specifications |
2/C 20 AWG FEP/A/M/FEP 10-1254; recommend two wire, twisted, shielded |
