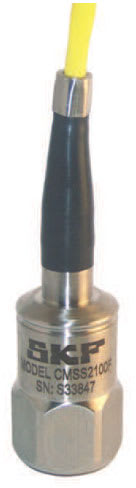

SKF CMSS 2100F - Accelerometer with Integral Cable, Straight Exit (16.5 ft)

0 reviews | UPC: 7316574064939 | Model: SKF CMSS 2100F

Compare

CONDITION MONITORING

16.4 ft integral cable, straight exit
For use with all SKF on-line surveillance systems
Economical, top exit design
Rugged, corrosion-resistant, and hermetically sealed
Case isolation
Meets CE, EMC requirements
Two mounting studs (1/4-28 and M8 x 1,25) provided
ESD protection
Reverse wiring protection

View Product Details

List Price: $1,041.88

Your Price: $513.56

In Stock:

Free shipping over $99 - Code: FREESHIP
Please note, FREE SHIPPING is only available on items that can ship via standard ground shipping and is only valid within the Contiguous United States. Any items that must ship via freight or to any destination outside of the Contiguous United States will be excluded. - USE CODE FREESHIP at checkout

Valid on Web Price Only!
View Payment Options

Request Quote

Recommended for you

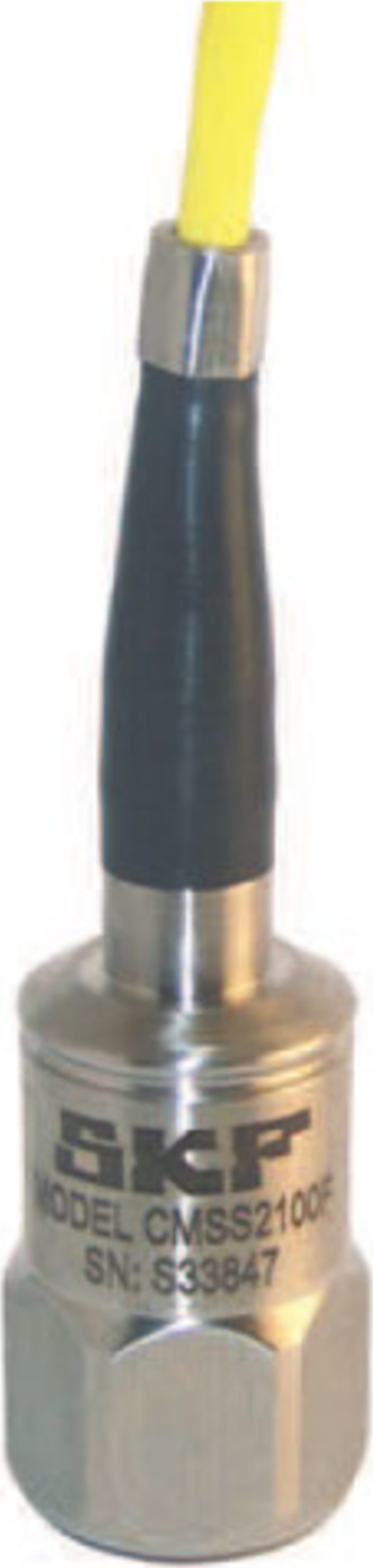

SKF CMSS 2100F - Accelerometer with Integral Cable, Straight Exit (16.5 ft)

16.4 ft integral cable, straight exit
For use with all SKF on-line surveillance systems
Economical, top exit design
Rugged, corrosion resistant and hermetically sealed
Case isolation

The CMSS WIND-100-10 is a compact accelerometer commonly used in the following applications:

Wind turbine gearboxes
Wind turbine generators

The small-size accelerometer is specially configured for unobtrusive mounting on wind turbine drive components, within the relatively protected environment of the turbine’s nacelle. An integral cable is used to eliminate any cause to travel to a remote site to ix a loose connector.

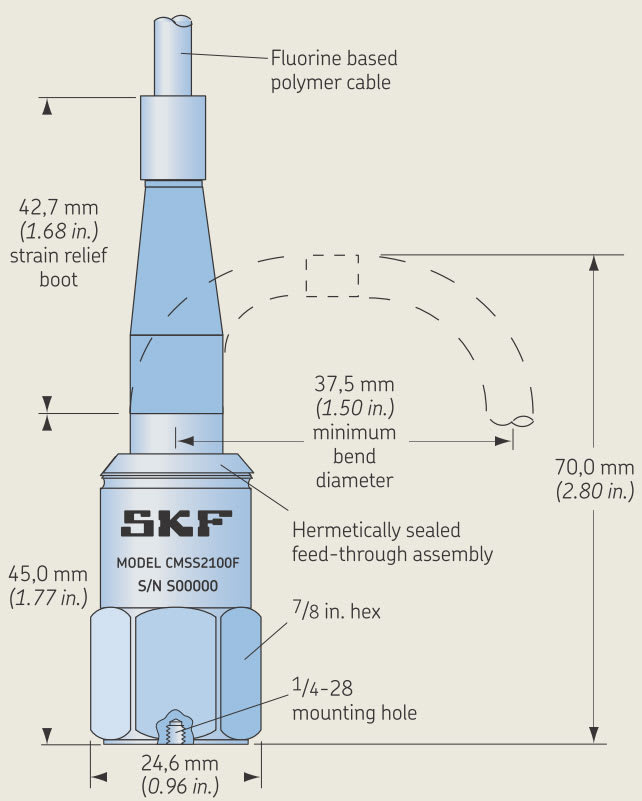

Dimensions

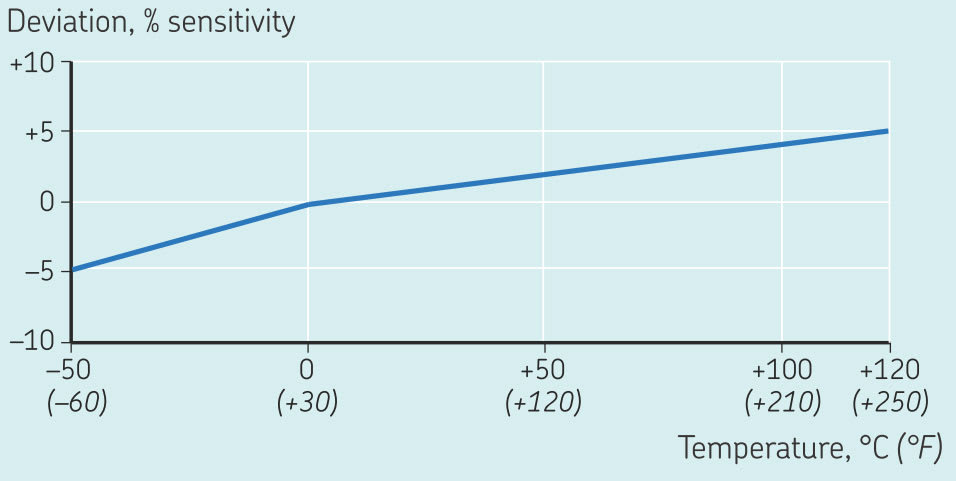

Typical Temperature Response

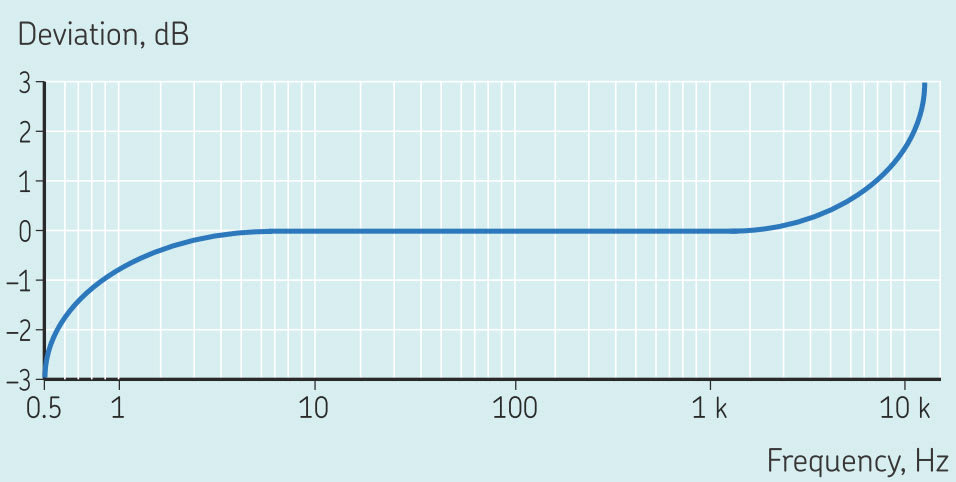

Typical Frequency Response

Dynamic
Sensitivity	100 mV/g
Sensitivity precision	±5% at 24 °C (75 °F)
Acceleration range	80 g peak
Amplitude linearity	1%
Frequency range	- ±5%: 3.0 to 5 000 Hz - ±10%: 1.0 to 9 000 Hz - ±3 dB: 0.5 to 14 000 Hz
Resonance frequency, mounted, nominal	30 kHz
Transverse sensitivity	≤ 5% of axial
Temperature response	See graph
Electrical
Power requirements	- Voltage source: 18 to 30 V DC - Constant current diode: 2 to 10 mA
Electrical noise	- Broadband: 2.5 Hz to 25 kHz: 700 µg - Spectral: 10 Hz: 10 µg/√Hz 100 Hz: 5 µg/√Hz 1 000 Hz: 5 µg/√Hz
Output impedance	< 100 Ω
Bias output voltage	12 V DC
Grounding	Case isolated, internally shielded
Environmental
Temperature range	-50 to +120 °C (-60 to +250 °F) operating temperature
Vibration limit	500 g peak
Shock limit	5 000 g peak
Electromagnetic sensitivity, equivalent g maximum	70 µg/gauss
Sealing	Hermetic
Base strain sensitivity	0,0002 g/µstrain
Hydrostatic pressure	100 psi
CE	According to the generic immunity standard for Industrial Environment EN 50082-2 - Acceptance criteria: The generated false equivalent g level under the above test conditions should be less than 2 mg measured peak to peak
Physical
Dimensions	See drawing
Weight	90 g (3.2 oz.)
Case material	316L stainless steel
Mounting	Internal 1/4-28 thread
Mounting torque	2.9 Nm (24 in. lbs.)
Connections	- Power/Signal: White - Common: Black - Case: Shield
Integral cable	Fluorine based polymer, 5 m (16.4 ft.) blunt cut

To minimize the possibility of signal distortion when driving long cables with high vibration signals, 24 to 30 V DC powering is recommended. The higher level constant current source should be used when driving long cables (please consult SKF).
A maximum current of 6 mA is recommended for operating temperatures in excess of 100 °C (210 °F).

Tech Specs

Test Equipment General Attributes
Unique Features	Meets CE, EMC requirements. ESD protection
Safety Approval	CE
Product Weight	0.19 OUNCES (0.012 LBS)
Product Height	10.00 IN
Product Length	16.4 IN
Product Width	10.00 IN
Shipping Weight	1.86 LBS
Shipping Height	10.00 IN
Shipping Length	3.00 IN
Shipping Width	10.00 IN
