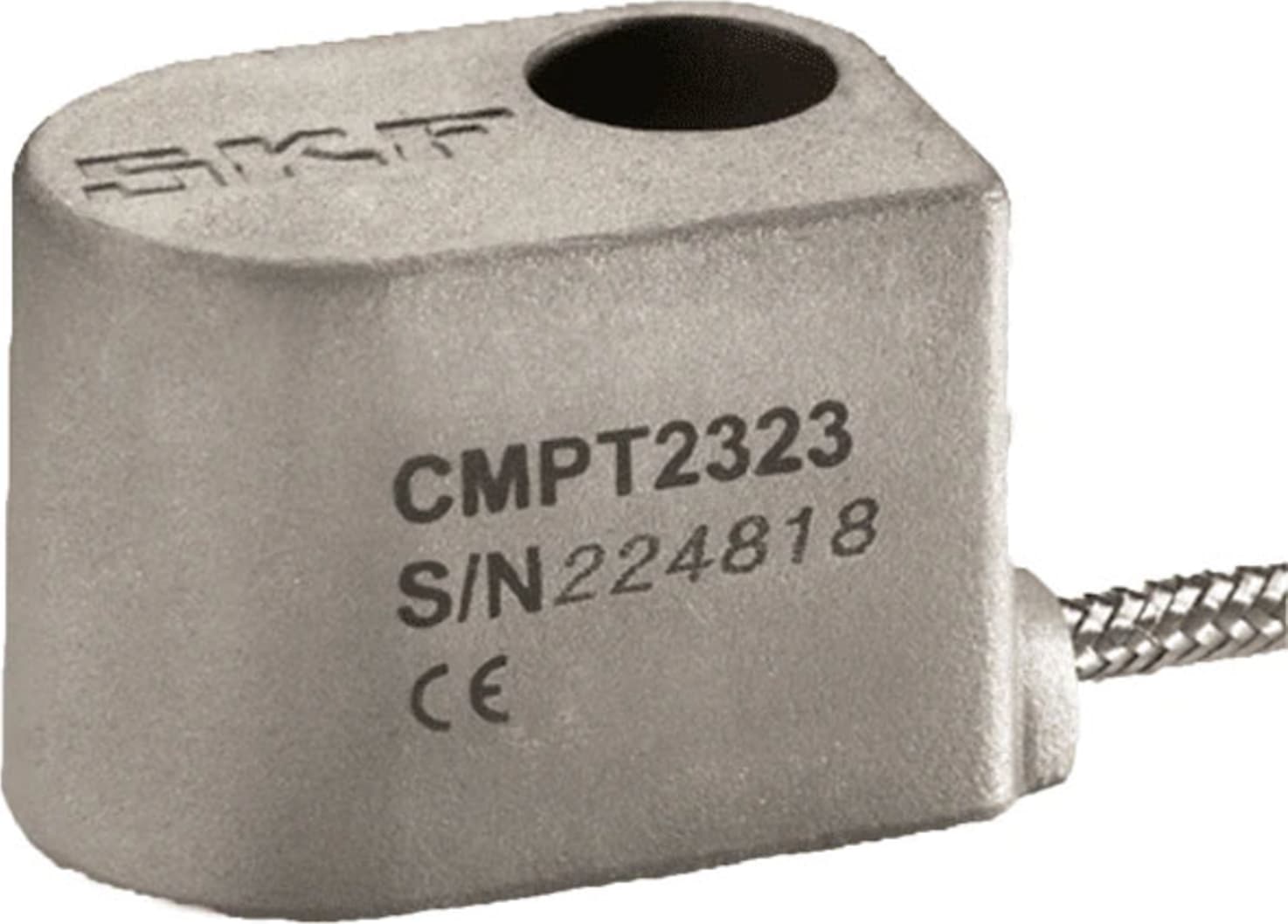

SKF CMPT 2323TX15 - Acceleration and Temperature Sensor, 230 mV/g, with 15 m (50 ft) Integral Braided Cable, Side Exit

0 reviews | UPC: 7316574349142 | Model: SKF CMPT 2323TX15

Compare

CONDITION MONITORING

Acceleration and temperature sensor, 230 mV/g, with 15 m (50 ft) integral braided cable, side exit
For use with all SKF on-line surveillance systems
230 mV/g sensitivity
Acceleration (mV/g) and temperature (mV/°C)
Physically rugged
Meets CE, EMC requirements
Low profile, side exit industrial accelerometer with M6 x 1 and 1/4-28 UNF socket head cap screws provided
5 m (16.4 ft.) integral cable with stainless steel over-braid
Corrosion-resistant and encapsulation sealed
The internal sensor capsule is isolated from the machine ground

View Product Details

List Price: $2,219.47

Your Price: $1,094.01

In Stock:

Free shipping over $99 - Code: FREESHIP
Please note, FREE SHIPPING is only available on items that can ship via standard ground shipping and is only valid within the Contiguous United States. Any items that must ship via freight or to any destination outside of the Contiguous United States will be excluded. - USE CODE FREESHIP at checkout

Valid on Web Price Only!
View Payment Options

Request Quote

Non-Cancellable / Non-Returnable

Recommended for you

SKF CMPT 2323TX15 - Acceleration and Temperature Sensor, 230 mV/g, with 15 m (50 ft) Integral Braided Cable, Side Exit

Acceleration and temperature sensor, 230 mV/g, with 15 m (50 ft) integral braided cable, side exit
For use with all SKF on-line surveillance systems
230 mV/g sensitivity
Acceleration (mV/g) and temperature (mV/°C)
Physically rugged

The CMPT 2323T is a physically rugged accelerometer optimized for use in heavy-duty environments such as the following industries:

Mining
Mineral Processing
Cement

In these industries, dust, mud and lying debris are commonplace, together with low rotational speeds. When used on shakers and screens, the accelerometer must also withstand high levels of continuous and random vibration. The sensor uses an integral cable with stainless over-braid for protection in heavy-duty environments. A higher sensitivity is used for detection of low amplitude signals in slow moving equipment.

Dimensions

Specifications conform to ISA-RP-37.2 (1-95) and are typical values referenced at 24 °C (75 °F), 24 V DC supply, 4 mA constant current and 80 Hz.

Dynamic
Sensitivity	230 mV/g
Sensitivity precision	±10% at 24 °C (75 °F)
Sensitivity deviation over full temperature range	10%, approximately -5% at -50 °C (-60 °F) and +5% at +120 °C (+250 °F)
Acceleration range	70 g peak
Amplitude linearity	< 1%, up to full scale
Frequency range	+/- 3dB: 0 2 Hz to 10 0kHz
Transverse sensitivity	≤ 5% of axial
Temperature Sensitivity	10 mV/°C
Temperature sensor measurement range	0 to 120 °C (30 to 250 °F)
Temperature precision	±1.5 °C (ą2.7 °F)
Resonance frequency, mounted, nominal	18 kHz
Electrical
Power requirements	- Voltage source: 24 V DC nominal, 18 to 30 V DC - Constant current diode: 4 mA at 24 V, 2 to 10 mA is permissible
Electrical noise	< 1 mg RMS broadband 2,5 Hz to 25,0 kHz
Bias output voltage	11,5 V DC, ±10% for 24 V DC supply at 25 °C (77 °F)
Grounding	Case isolated, internally shielded (Faraday cage) - Faraday cage connected to power supply return
Over-voltage protection	Approximately 18 V DC
Reverse polarity (wiring) protection	Yes
Environmental
Temperature range	- Accelerometer measurement temperature range: -50 to +120 °C (-60 to +250 °F) - Maximum operating temperature: 120 °C (250 °F) - Storage temperature: -50 to +150 °C (-60 to +300 °F)
Vibration limit	70 g peak
Shock limit	5 000 g peak
Electromagnetic sensitivity, equivalent g, maximum	< 100 µg/gauss at 50 to 60 Hz
CE	According to the generic immunity standard for Industrial Environment EN 50082-2 - Acceptance criteria: The generated false equivalent g level under the above test conditions should be less than 2 mg measured peak to peak
IEC	529, IP 67 (For climatic conditions, recommend to use conduit/hose over braided cable )
Physical
Dimensions	See drawing
Weight	- Sensor without cable: 210 g (7.4 oz.) - Sensor with cable: 410 g (14.5 oz.)
Case material	304 stainless steel
Mounting	M6 × 1 and 1/4-28 UNF socket head cap screws provided
Mounting torque	6 Nm (50 in. lbs.)
Cable	Integral cable, 5 m (16.4 ft.) length
Wire specification	0.32 mm (AWG 22) stranded tin copper (seven strands at 0.05 mm each)
Connections	- White: ACCEL signal/power - Black: ACCEL signal ground (GND) - Red: TEMP signal high - Blank twisted wire: Screen connected to internal shield

Tech Specs

Test Equipment General Attributes
Unique Features	Meets CE, EMC requirements
Safety Approval	CE
Product Weight	0.90 OUNCES (0.056 LBS) Product Weight Sensor with cable
Product Height	10.00 IN
Product Length	16.4 Ft (196.8 IN)
Product Width	8.00 IN
Shipping Weight	1.99 LBS
Shipping Height	10.00 IN
Shipping Length	2.00 IN
Shipping Width	8.00 IN
