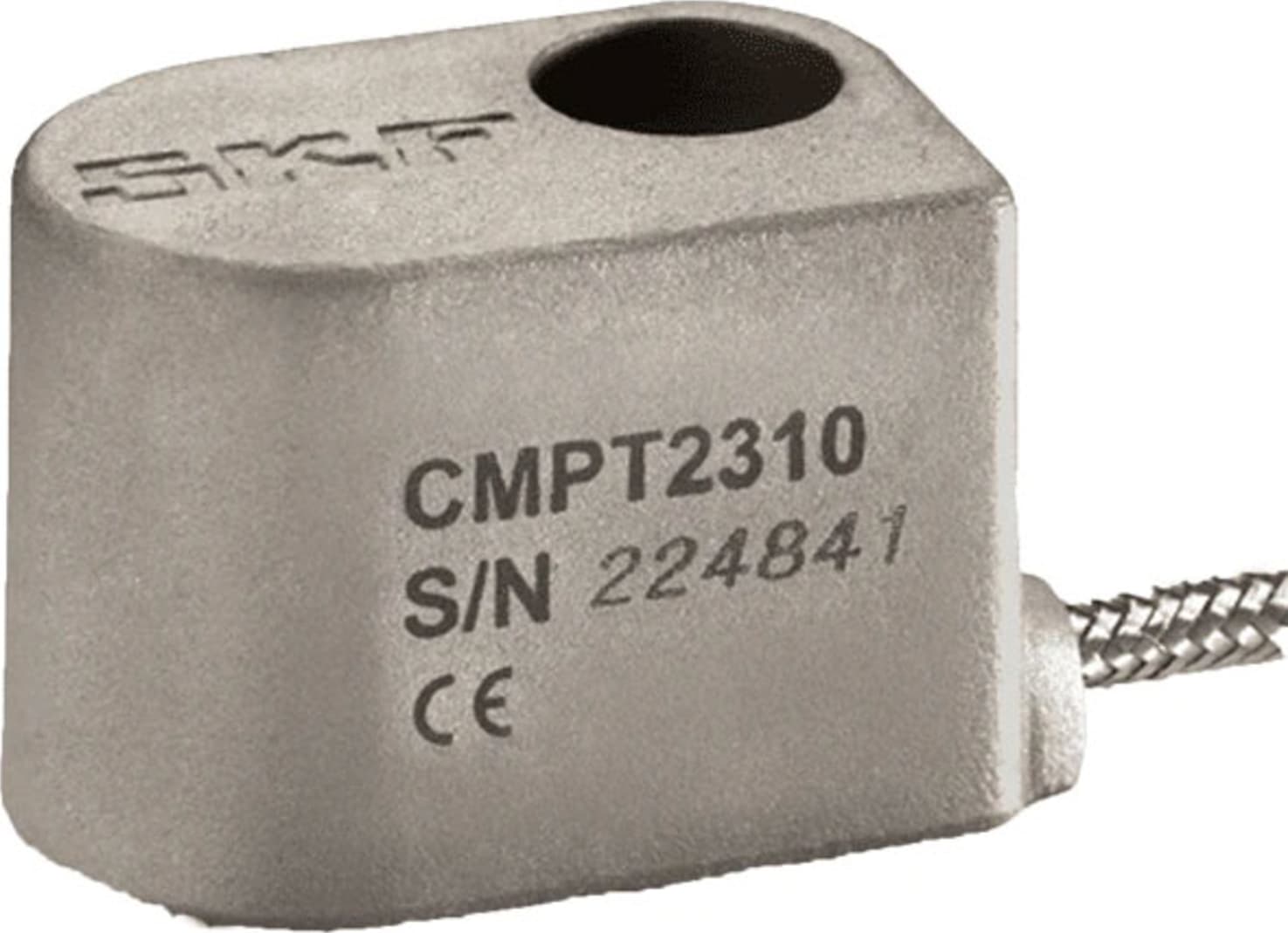

| Dynamic |
| Sensitivity |
100 mV/g |
| Sensitivity precision |
±10% at 24 °C (75 °F) |
| Sensitivity deviation over full temperature range |
10%, approximately -5% at -50 °C (-60 °F) and +5% at +120 °C (+250 °F) |
| Acceleration range |
70 g peak |
| Amplitude linearity |
< 1%, up to full scale |
| Frequency range |
+/- 3dB%: 1 0 Hz to 10 0 kHz |
| Transverse sensitivity |
≤ 5% of axial |
| Resonance frequency, mounted, nominal |
18 kHz |
| Electrical |
| Power requirements |
- Voltage source: 24 V DC nominal, 18 to 30 V DC
- Constant current diode: 4 mA at 24 V, 2 to 10 mA is permissible |
| Electrical noise |
< 1 mg RMS broadband 2,5 Hz to 25,0 kHz |
| Bias output voltage |
11,5 V DC, ±10% for 24 V DC supply at 25 °C (77°F) |
| Grounding |
Case isolated, internally shielded (Faraday cage) - Faraday cage connected to power supply return |
| Over-voltage protection |
Approximately 18 V DC |
| Reverse polarity (wiring) protection |
Yes |
| Environmental |
| Temperature range |
- Accelerometer measurement temperature range: -50 to +120 °C (-60 to +250 °F)
- Maximum operating temperature: 120 °C (250 °F)
- Storage temperature: -50 to +150 °C (-60 to +300 °F) |
| Vibration limit |
70 g peak |
| Shock limit |
5 000 g peak |
| Electromagnetic sensitivity, equivalent g, maximum |
< 100 µg/gauss at 50 to 60 Hz |
| CE |
According to the generic immunity standard for Industrial Environment EN 50082-2 - Acceptance criteria: The generated false equivalent g level under the above test conditions should be less than 2 mg measured peak to peak |
| IEC |
529, IP 67 (For climatic conditions, recommend to use conduit/hose over braided cable ) |
| Physical |
| Dimensions |
See drawing |
| Weight |
- Sensor without cable: 210 g (7.4 oz.)
- Sensor with cable: 410 g (14.5 oz.) |
| Case material |
304 stainless steel |
| Mounting |
M6 x 1 and 1/4-28 UNF socket head cap screws provided |
| Mounting torque |
6 Nm (50 in. lbs.) |
| Cable |
Integral cable, 5 m (16.4 ft.) length |
| Wire speciication |
0,32 mm (AWG 22) stranded tin copper (seven strands at 0,05 mm2 each) |
| Connections |
- White: ACCEL signal/power (connected to constant current source)
- Black: ACCEL signal ground (GND)
- Blank twisted wire: Screen connected to internal shield |
