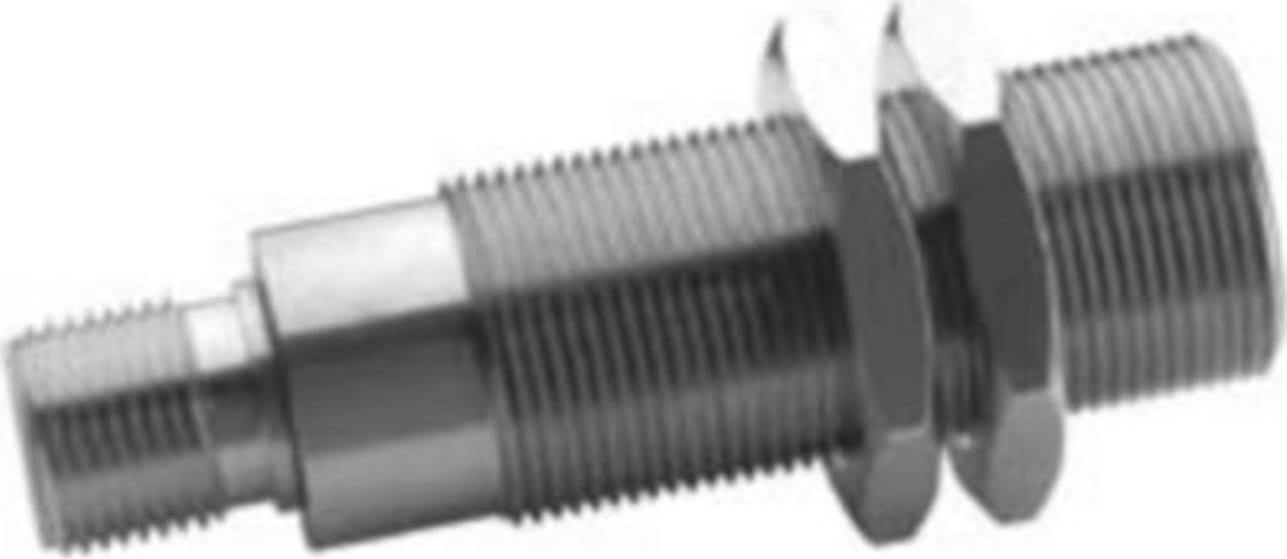

SKF CMCP 245-02 - Accelerometer with Integral Cable, Straight Exit

0 reviews | UPC: 7316572822869 | Model: SKF CMCP 245-02

Compare

CONDITION MONITORING

⛟ Freight Shipping Only

View Product Details

List Price: $1,100.85

Your Price: $542.62

In Stock:

Recommended for you

The CMSS 2100F accelerometer is a good multi-purpose sensor with integral cable for light to medium-duty applications in the following industries:

Common applications include general-purpose machines such as pumps, motors, and fans.

Dynamic
Sensitivity	100 mV/g
Sensitivity precision	±5% at 24 °C (75 °F)
Acceleration range	80 g peak
Amplitude linearity	1%
Frequency range	- ±5%: 3,0 to 5 000 Hz - ±10%: 1,0 to 9 000 Hz - ±3 dB: 0,5 to 14 000 Hz
Resonance frequency, mounted, nominal	30 kHz
Transverse sensitivity	≤ 5% of axial
Temperature response	See graph
Electrical
Power requirements	- Voltage source: 18 to 30 V DC - Constant current diode: 2 to 10 mA
Electrical noise	- Broadband: 2,5 Hz to 25 kHz: 700 µg - Spectral: 10 Hz: 10 µg/√Hz 100 Hz: 5 µg/√Hz 1 000 Hz: 5 µg/√Hz
Output impedance	< 100 Ω
Bias output voltage	12 V DC
Grounding	Case isolated, internally shielded
Environmental
Temperature range	-50 to +120 °C (-60 to +250 °F) operating temperature
Vibration limit	500 g peak
Shock limit	5 000 g peak
Electromagnetic sensitivity, equivalent g maximum	70 µg/gauss
Sealing	Hermetic
Base strain sensitivity	0,0002 g/µstrain
Hydrostatic pressure	100 psi
CE	According to the generic immunity standard for Industrial Environment EN 50082-2 - Acceptance criteria: The generated false equivalent g level under the above test conditions should be less than 2 mg measured peak to peak
Physical
Dimensions	See drawing
Weight	90 g (3.2 oz.)
Case material	316L stainless steel
Mounting	Internal 1/4-28 thread
Mounting torque	2,9 Nm (24 in. lbs.)
Connections	- Power/Signal: White - Common: Black - Case: Shield
Integral cable	Fluorine based polymer, 5 m (16.4 ft.) blunt cut

To minimize the possibility of signal distortion when driving long cables with high vibration signals, 24 to 30 V DC powering is recommended. The higher level constant current source should be used when driving long cables (please consult SKF).
A maximum current of 6 mA is recommended for operating temperatures in excess of 100 °C (210 °F).

Test Equipment General Attributes
Product Weight	0.19 LBS
Product Height	5.00 IN
Product Length	2.00 IN
Product Width	5.00 IN
Shipping Weight	0.31 LBS
Shipping Height	5 IN
Shipping Length	2 IN
Shipping Width	5 IN
