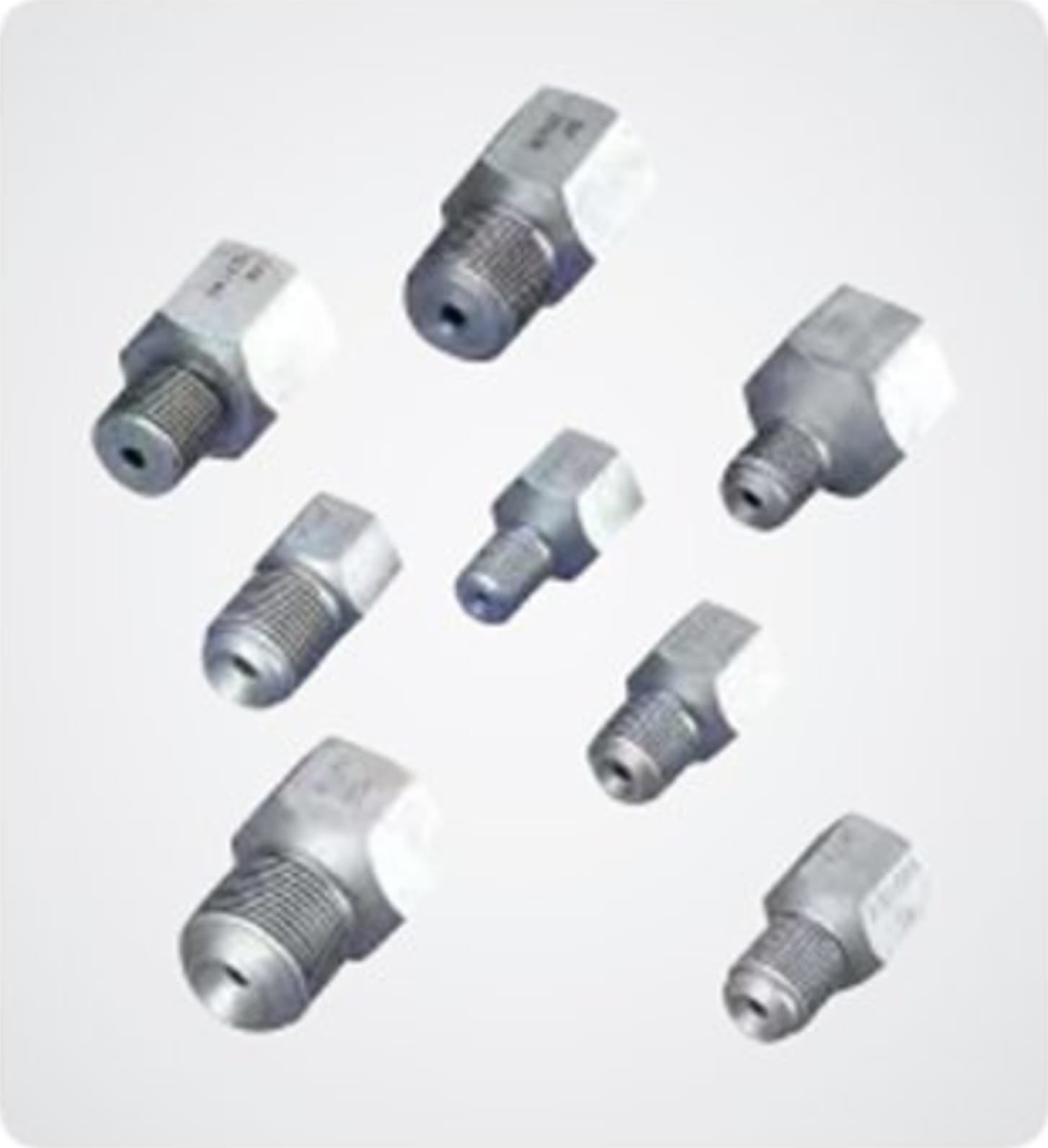

SKF 729146 Connection Nipple

0 reviews | UPC: 7316577127464 | Model: SKF 729146

Compare

Connection Nipple G1/2, G 3/4 300 MPa

View Product Details

List Price: $195.17

Your Price: $104.09

In Stock:

Free shipping over $99 - Code: FREESHIP
Please note, FREE SHIPPING is only available on items that can ship via standard ground shipping and is only valid within the Contiguous United States. Any items that must ship via freight or to any destination outside of the Contiguous United States will be excluded. - USE CODE FREESHIP at checkout

Valid on Web Price Only!
View Payment Options



Product	SKF 729146 Connection Nipple G1/2, G 3/4 300 MPa	SKF 1009030 B Nipple with pipe thread G 1/8, G 3/8, 300 MPa Pressure	SKF 1009030 E Connection Nipple G 1/4, G 3/4, 400 Mpa	SKF 1016402 E Nipple with pipe thread G 1/2, G 1/4, 400 MPa Pressure	SKF 1012783 E Connection Nipple G 3/8 G1/4 Thread, 400 Mpa	SKF 1019950 Nipple with pipe thread G 1/8, G 1/2, 300 MPa Pressure	SKF 1018219 E Nipple with pipe thread G 1/4, G 3/8, 400 MPa Pressure	SKF 1014357 A Nipple with pipe thread G 1/8, G 1/4, 300 MPa	SKF 1008593 E Nipple with pipe thread G 3/8, G 3/4, 400 MPa Pressure	SKF 1077456/100MPA 100MPA (14,500PSI) NIPPLES WITH METRIC (G)M8X1 (G2)M6X1	SKF 228027 E Connection Nipples, G 3/4, G 1/4, 400 Mpa	SKF 729655/150MPA Connection Nipple, NPT Tapered Thread, NPT 3/8 - G 1/4 Thread, 150 MPa W ...	SKF 729106/100MPA Nipples with NPT tapered threads G 1/4, NPT 3/8, 100 Mpa Pressure	SKF 729656/150MPA Nipples with NPT Tapered Threads NPT 3/4", G 1/4, 150MPa, 21 750Psi	SKF 729654/150MPA Nipples with NPT Tapered Threads, 25,4mm, 15mm, 15mm, 42mm, 22mm
Price
In Stock
Compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare

Recommended for you

Nipples with metric and G pipe threads
Threads G	G 1/2
Threads G2	G 3/4
Maximum working pressure	300 Mpa, 43 500 Psi
Metric dimension A	36, 9 mm
Metric dimension G1	17 mm
Metric dimension G3	20 mm
Metric dimension L	50 mm
Metric Width across flats	32 mm
Imperial dimension A	1.45 in.
Imperial dimension G1	0.67 in.
Imperial dimension G3	0.79 in.
Imperial dimension L	1.97 in.
Imperial Width across flats	32 mm

Test Equipment General Attributes
Unique Features	G 1/2 G-type Thread 300 MPa Max. working pressure
Product Weight	0.41 LBS
Product Height	3.15 IN
Product Length	1.82 IN
Product Width	1.58 IN
HTS/Schedule B Number	7307.29.0030
ECCN Number	EAR99
Country of Origin	United States
Shipping Height	3.15 IN
Shipping Length	1.82 IN
Shipping Width	1.58 IN
