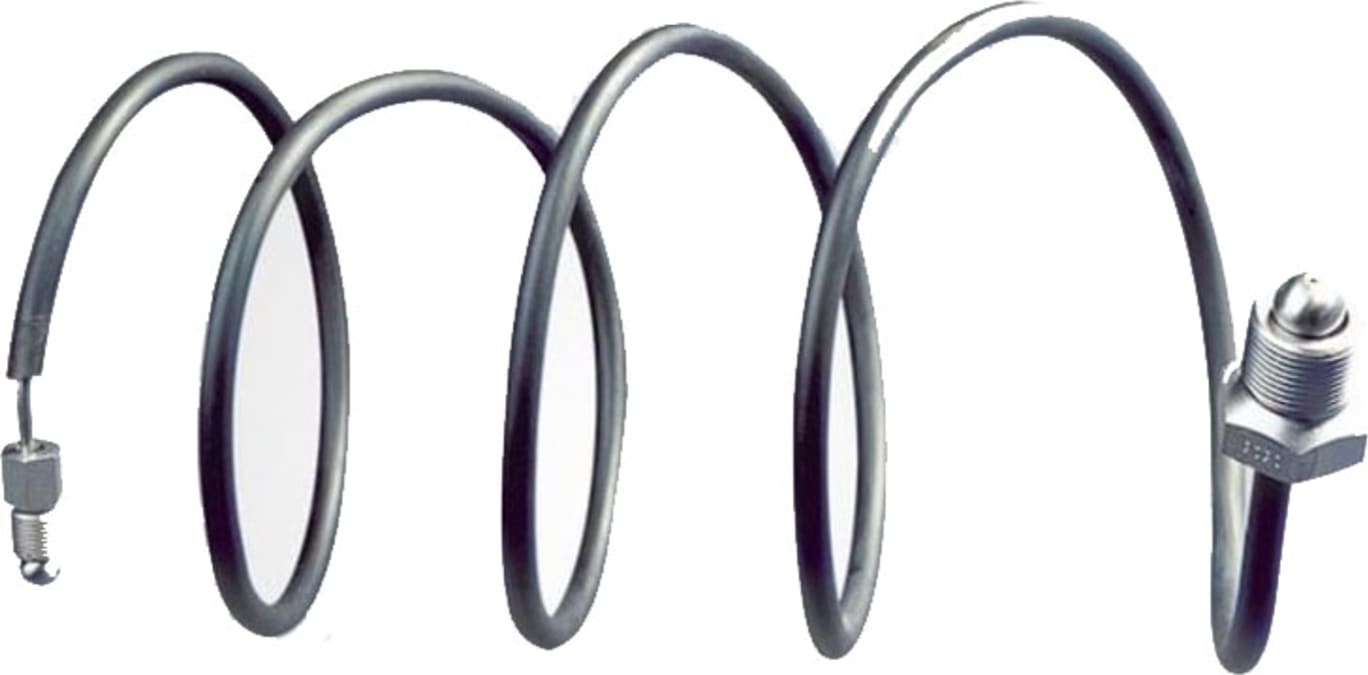

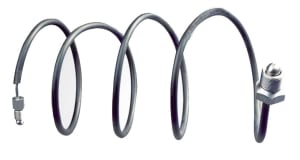

SKF 227957 A/400/4 High pressure pipe, 4000 mm length

• A/400MP High-pressure pipes
• Wide range of pipes
• All pipes are pressure tested to 100 MPa (14 500 psi) over recommended working pressure
• Special lengths (up to 4 000 mm / 157 in) made on request

The range of SKF High-pressure Pipes covers most applications where there is a requirement to transfer oil at high pressure. They consist of a steel pipe with a steel ball fitted to both ends. Two swivelling connection nipples press these balls against the seating of the connecting hole and thus sealing against oil leakage.

High-pressure pipes are available in a 400 MPa execution. High pressure pipes are marked with their maximum working pressure e.g. MAX 400MPa.

The pipe colour also indicates the maximum working pressure. Black pipes can be used up to 300 MPa, whilst grey pipes can be used up to 400 MPa.
