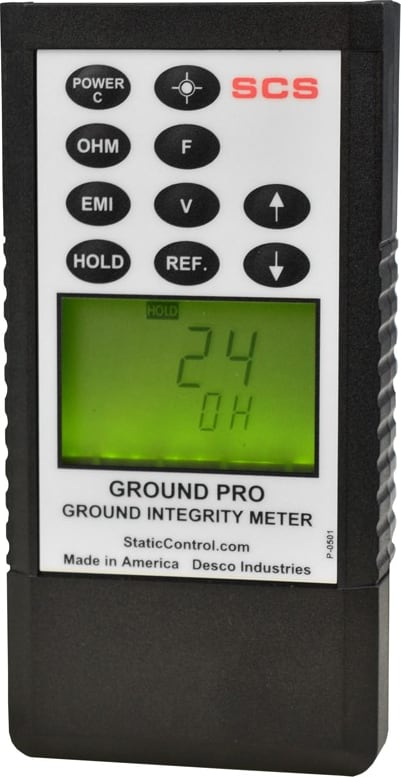

SCS Ground Pro Meter
The SCS CTM051 Ground Pro Meter is a comprehensive instrument that measures the ground connection of your equipment in accordance with Grounding standards ANSI/ESD S6.1 and ANSI/ESD S20.20. In addition to measuring ground impedance, it also measures AC and DC voltage on the ground as well as the presence of high-frequency noise or electromagnetic interference (EMI) on the ground, alerting you to possible functionality problems, such as tool lockups, erratic behavior, and parametric errors.
SCS Ground Pro Meter Features and Attributes:
- Verifies critical grounding parameters of a facility - Measures AC voltage, DC voltage, EMI voltage, and AC impedance
- Provides accurate measurements of ground impedance on a working tool - Meets ANSI/ESD S20.20 requirements for AC impedance.
- Identifies potential EOS generators - Measures maximum millivolt requirement of IPC-A-610
- Auto-zero function for test leads - Factors out the impedance of the test leads for improved measurement accuracy.
- Programmable impedance alarm - Audible alarm sounds when impedance measurement is below the threshold set by an operator
- NIST calibrated with certificate included
- Assembled in the USA with globally sourced materials
