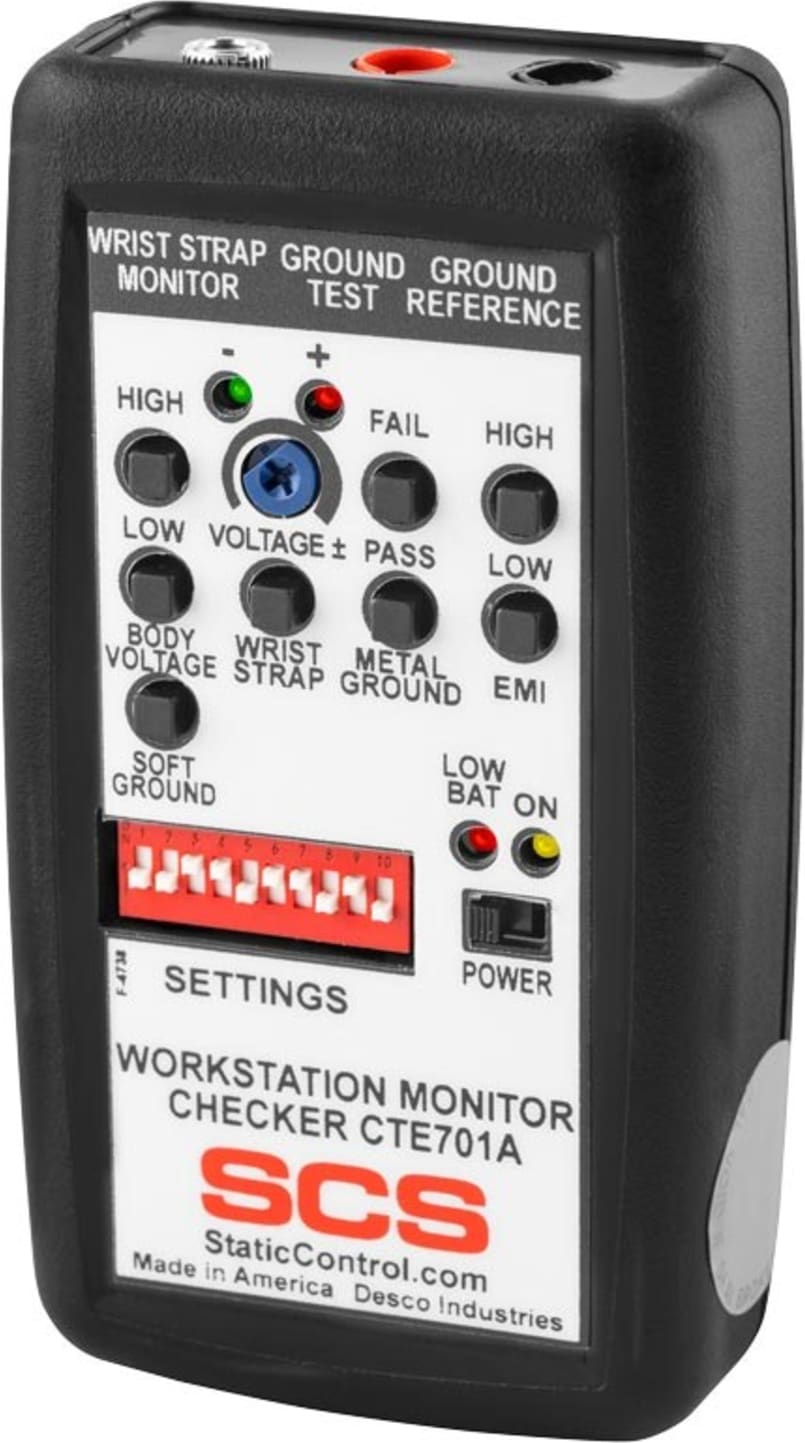

The SCS CTE701 Workstation Monitor Checker verifies the proper operation of the SCS WS Aware Workstation Monitor, SCS Ground Master Equipment Ground Monitor, SCS Iron Man Plus Workstation Monitor, and SCS Ground Man Plus Ground Monitor. The Workstation Monitor Checker simulates resistance, impedance, and voltage signals so that you can see whether the response of your monitors complies with your specifications. It meets the ANSI/ESD S20.20 requirements for compliance verification of continuous monitors. The Workstation Monitor Checker presents certain loads and signals to the monitor that simulate specific parameters of ground connections and wrist straps.

For the verification of the following SCS Continuous Monitors:

• WS Aware Monitors (770067, 770068; CTC061-3-242-WW, CTC062-3-242-WW)
• Ground Master Monitor (770044)
• Iron Man Plus Monitor (Iron Man Plus - CTC331-WW)
• Ground Man Plus Monitor (Ground Man Plus - CTC334-WW)
• Wrist Strap and Ground Monitor (CTC337-WW)
• Wrist Strap and Ground Monitor (773)
