• System continuously monitors (2) operators and (2) metal tools
• Operator and equipment path-to-ground continuous monitor (ANSI/ESD S20.20 per ESD TR1.0-01-01)
• Operator body voltage detection – alert if dangerous voltage to ESD susceptible item is detected
• Digital signal processing technology – small voltage applied when handling sensitive components
• Mini size (0.85in x 2.4in x 2.6in) that uses minimal workspace

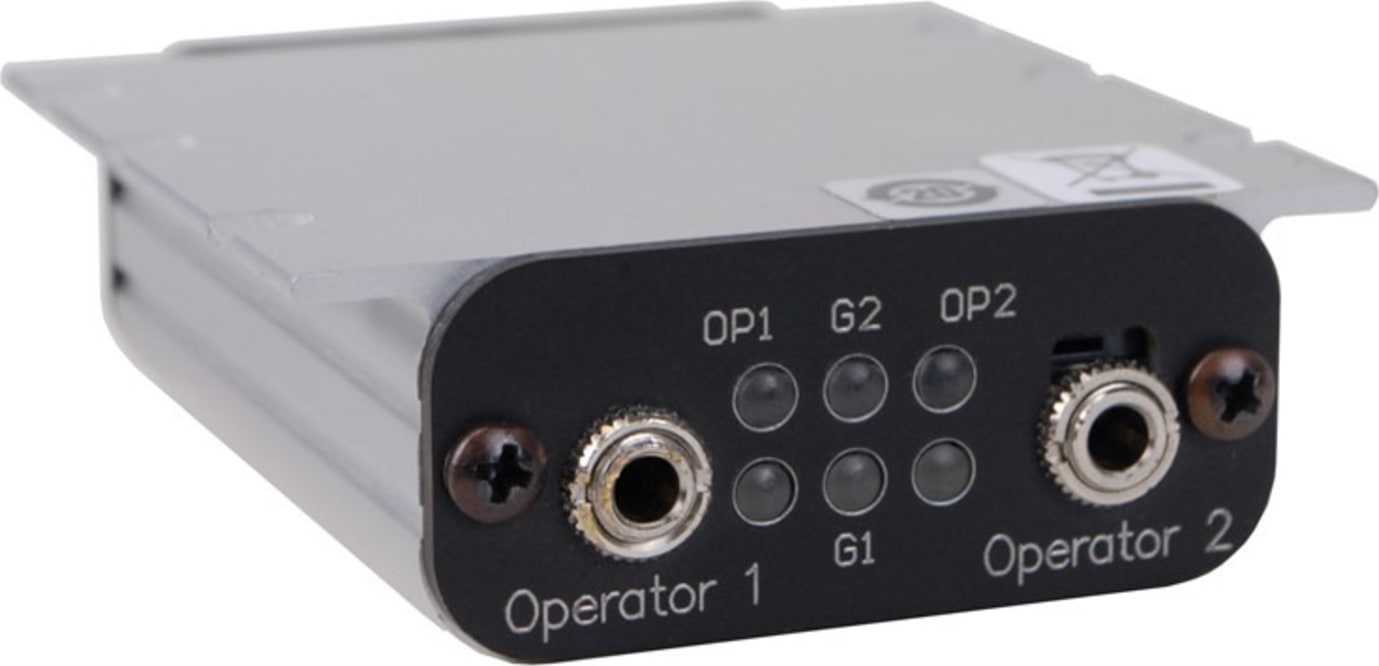

The SCS 773 Wrist Strap and Ground Monitor can be used in work areas or other locations to monitor the ground impedance of metal ground connection in process tools including but not limited to semiconductor, disk drive, flat panel and electronic equipment manufacturing environments. Ground impedance monitoring can be used for up to two points for metal ground, such as within a tool. The Wrist Strap and Ground Monitor can be used to monitor the impedance-to-ground and voltage level of two persons wearing dual-wire wrist straps. The unit incorporates green and red LEDs and an audible alarm, as well as an output logic signal to host equipment.

Ground Impedance Monitor – Continuously monitors for ground impedance on one or two separate channels that are connected to one or two process tools. The alarm level is set the same for all channels.

Output Signal – An output signal is available for connecting to the tool’s computer or PLC. The 5V signal is either logic 1 or 0 for indicating the monitored ground resistance/impedance conditions and for the wrist strap.

Operator Connection – The Wrist Strap and Ground Monitor provide continuous monitoring of operator connected to the monitor via loop resistance check of the operator’s physical presence using a dual wire wrist strap.

The voltage on Person's Wrist Strap Monitor – The Wrist Strap and Ground Monitor has one additional feature that allows continuous monitoring for excessive voltage on each operator.

SCS Wrist Strap and Ground Dual-Wire Monitor Features and Attributes:

• Operator and equipment ground continuous monitor – Continuously monitors the path-to-ground integrity of two operators and two metal tools; meets ANSI/ESD S20.20 in accordance with ESD TR1.0-01-01
• Digital signal processing technology - Applies a low test voltage to the operator (0.10V) for the handling of sensitive components
• Operator body voltage detection – alarms if the operator generates or contacts voltage that would be dangerous to an ESD susceptible item
• Miniature Size (0.85in x 2.4in x 2.6in) - Uses minimal workspace and includes mounting tabs for installation underneath table tops
• NIST calibrated with certificate included
• 100-240V AC power adapter with interchangeable plugs - Works with standard electrical systems in North America, United Kingdom, Japan, Asia and Europe
• Assemble in the USA with globally sourced materials
