Rohde and Schwarz ZVH-K42 - Vector Network Analysis Option for ZVH

Name: Rohde and Schwarz ZVH-K42 - Vector Network Analysis Option for ZVH
Brand: Rohde & Schwarz
SKU: Rohde & SchwarzZVH-K42
Price: 6020.00 USD
Availability: InStock

0 reviews | Catalog: 1309.6846.03 | Model: Rohde & Schwarz ZVH-K42

Compare

Vector Network Analysis, Application (Unregistered License)

Vector network analysis option
For ZVH4 and ZVH8
Transforms the ZVH into a two-port vector network analyzer
Matching and transmission characteristics of filters, amplifiers, etc. can be determined quickly and with high accuracy in the forward and reverse direction with only one test setup
Increased measurement accuracy due to vector system error correction
Measurement of magnitude and phase of S-parameters S11, S21, S12 and S22
Simultaneous display of magnitude and phase in split screen mode
Simultaneous display of four different S-parameters
Smith chart with zoom function

View Product Details

Your Price: $6,020.00

Sign-in for EDU Pricing!

In Stock:

Free shipping over $99 - Code: FREESHIP
Please note, FREE SHIPPING is only available on items that can ship via standard ground shipping and is only valid within the Contiguous United States. Any items that must ship via freight or to any destination outside of the Contiguous United States will be excluded. - USE CODE FREESHIP at checkout

Valid on Web Price Only!
Request a Demo

View Payment Options

Request Quote

Rohde and Schwarz ZVH-K42 - Vector Network Analysis Option for ZVH

Vector network analysis option
For ZVH4 and ZVH8
Transforms the ZVH into a two-port vector network analyzer
Matching and transmission characteristics of filters, amplifiers, etc. can be determined quickly and with high accuracy in the forward and reverse direction with only one test setup

The R&S ZVH-K42 option transforms the R&S ZVH into a two-port vector network analyzer. Matching and transmission characteristics of filters, amplifiers, etc. can be determined quickly and with high accuracy in the forward and reverse direction with only one test setup.

Increased measurement accuracy due to vector system error correction
Measurement of magnitude and phase of S-parameters S11, S21, S12 and S22
Simultaneous display of magnitude and phase in split screen mode
Simultaneous display of four different S-parameters
Smith chart with zoom function
Support of all conventional marker formats
Input of a reference impedance for DUTs with an impedance other than 50 Ω
Electrical length measurement
Determination of group delay

Screen layout of the network analyzer

Result display
Measurement mode
0 dB reference
Status line
- S-matrix
- Calibration status
- Measurement format
Trace window
Network analyzer softkey menu

0

Out of 5

Average Customer Review

Share your thoughts with other customers

Write a Review

Real people, here to help you.

Get Connected

Join the community and find out what we're up to, experience live product releases, webinars and more!

Buy from people, not just the internet™



Product	Rohde & Schwarz ZVH-K42 Vector Network Analysis, Application (Unregistered License)	Rohde & Schwarz ZVH-K1 Spectrum analysis measurement, application (unregistered license)	Rohde & Schwarz ZVH-K14 Spectrogram Measurement, Application (Unregistered License)	Rohde & Schwarz ZVH-K19 Channel Power Meter (Unregistered License)	Rohde & Schwarz ZVH-K39 Transmission Measurement, Application (Unregistered License)	Rohde & Schwarz ZVH-K40 Remote Control via USB or LAN, Application (Unregistered License)	Rohde & Schwarz ZVH-K45 Vector Voltmeter Measurement, Application (Unregistered License)	Rohde & Schwarz ZVH-K9 Power Meter Measurement, Application; R and S FSH-Power Sensors or ...	Rohde & Schwarz ZVH-K29 Pulse Measurements with Power Sensor Option
Price
In Stock
Compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare

Rohde and Schwarz ZVH-K42 Specification
Reflection measurement
Directivity	100 kHz to 3 GHz (nom.)	> 43 dB (nom.)	> 43 dB (nom.)
	3 GHz to 3.6 GHz	> 37 dB (nom.)	> 37 dB (nom.)
	3.6 GHz to 6 GHz	-	> 37 dB (nom.)
	6 GHz to 8 GHz	-	> 31 dB (nom.)
Display modes		S₁₁, return loss (dB), VSWR, one-port cable loss
Display modes	vector network analysis (R&S®ZVH-K42)	S₁₁, S₂₂, magnitude, phase, magnitude + phase, Smith chart, VSWR, reflection coefficient, mρ, one-port cable loss, electrical length, group delay
Transmission measurement
Dynamic range (S₂₁, S₁₂)	100 kHz to 300 kHz	> 50 dB (nom.)	> 50 dB (nom.)
	300 kHz to 2.5 GHz	> 80 dB, typ. 100 dB	> 80 dB, typ. 100 dB
	2.5 GHz to 3.6 GHz	> 70 dB, typ. 90 dB	> 70 dB, typ. 90 dB
	3.6 GHz to 6 GHz	-	> 70 dB, typ. 90 dB
	6 GHz to 8 GHz	-	> 50 dB (nom.)
Display modes	vector network analysis (R&S®ZVH-K42)	S₂₁, S₁₂, magnitude (loss, gain), phase, magnitude + phase, electrical length, group delay

Test Equipment General Attributes
ECCN Number	FREI-INLAND
Country of Origin	Qatar

How Can We Help You?

Questions?

Log in to Your Account

Not a member yet? It's FREE!

Top Categories

Rohde and Schwarz ZVH-K42 - Vector Network Analysis Option for ZVH

Items in This Series

Recommended for you

Rohde and Schwarz ZVH-K42 - Vector Network Analysis Option for ZVH

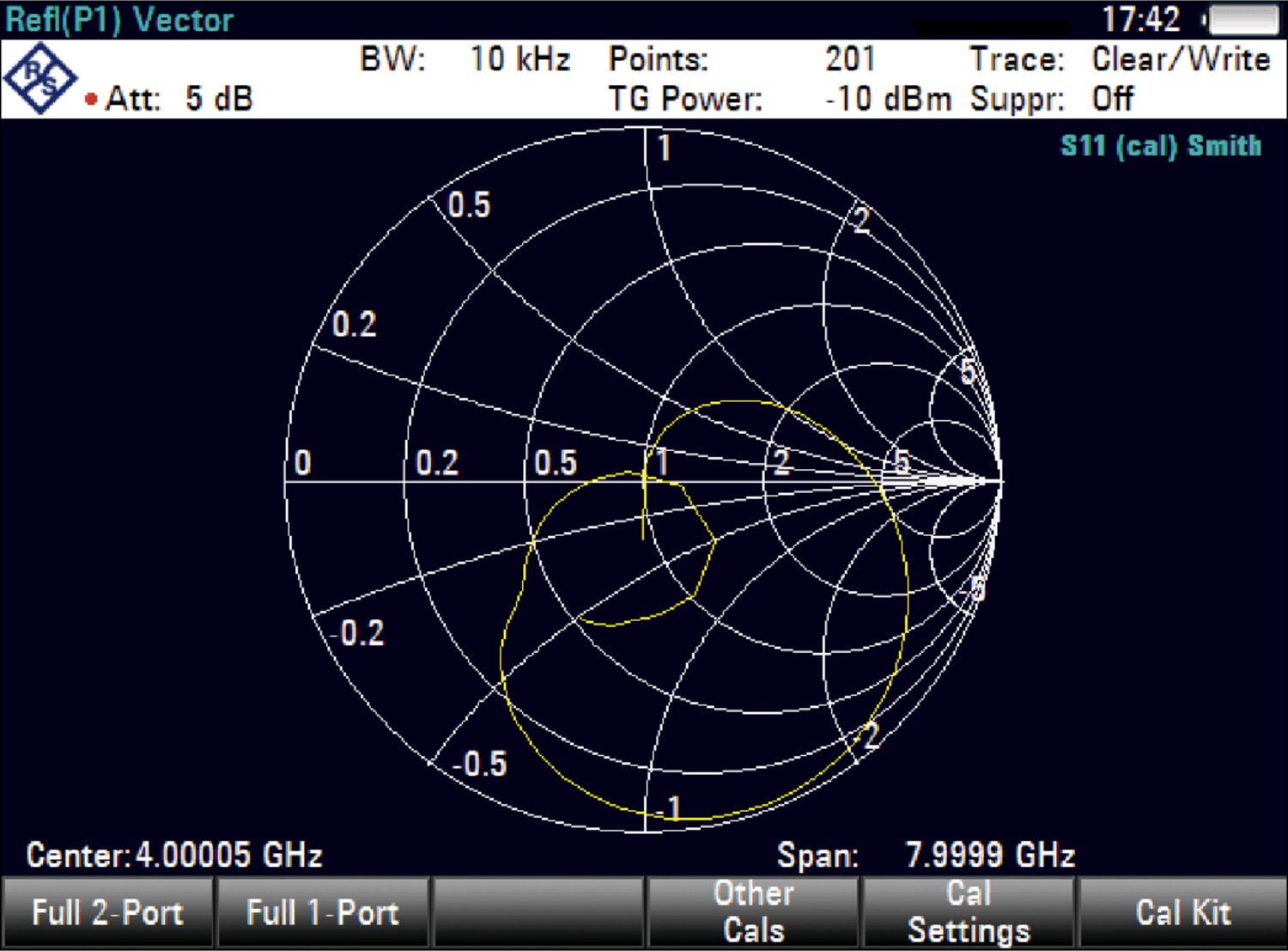

Screen layout of the network analyzer
