Rohde and Schwarz ZVH-K1 - Spectrum Analysis Application Option for ZVH

Name: Rohde and Schwarz ZVH-K1 - Spectrum Analysis Application Option for ZVH
Brand: Rohde & Schwarz
SKU: Rohde & SchwarzZVH-K1
Price: 6400.00 USD
Availability: InStock

0 reviews | Catalog: 1309.6823.03 | Model: Rohde & Schwarz ZVH-K1

Compare

Spectrum analysis measurement, application (unregistered license)

Spectrum analysis application option
For use with ZVH4 and ZVH8
Equips the ZVH for spectrum analysis and offers many measurement functions

View Product Details

Your Price: $6,400.00

Sign-in for EDU Pricing!

In Stock:

Free shipping over $99
Please note, FREE SHIPPING is only available on items that can ship via standard ground shipping and is only valid within the Contiguous United States. Any items that must ship via freight or to any destination outside of the Contiguous United States will be excluded.
Request a Demo

View Payment Options

Request Quote

Items in This Series



Product	Rohde & Schwarz ZVH-K1 Spectrum analysis measurement, application (unregistered license)	Rohde & Schwarz ZVH-K14 Spectrogram Measurement, Application (Unregistered License)	Rohde & Schwarz ZVH-K19 Channel Power Meter (Unregistered License)	Rohde & Schwarz ZVH-K39 Transmission Measurement, Application (Unregistered License)	Rohde & Schwarz ZVH-K40 Remote Control via USB or LAN, Application (Unregistered License)	Rohde & Schwarz ZVH-K42 Vector Network Analysis, Application (Unregistered License)	Rohde & Schwarz ZVH-K45 Vector Voltmeter Measurement, Application (Unregistered License)	Rohde & Schwarz ZVH-K9 Power Meter Measurement, Application; R and S FSH-Power Sensors or ...	Rohde & Schwarz ZVH-K29 Pulse Measurements with Power Sensor Option
Price
In Stock
Compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare

Recommended for you

Rohde and Schwarz ZVH-K1 - Spectrum Analysis Application Option for ZVH

Spectrum analysis application option
For use with ZVH4 and ZVH8
Equips the ZVH for spectrum analysis and offers many measurement functions

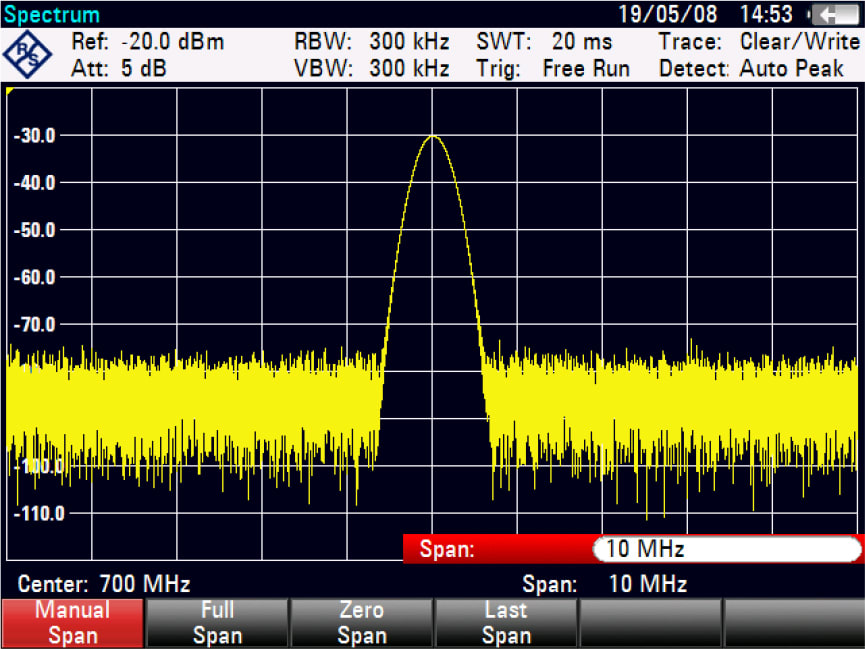

The R&S ZVH-K1 option equips the R&S ZVH for spectrum analysis and offers the following measurement functions:

Channel power
Occupied bandwidth
Power on pulsed TDMA signals
Adjacent channel power (ACLR)
Spurious emissions (spectrum emission mask)
Measurements of the modulation spectrum on pulsed signals with gated sweep
Field strength with directional or isotropic antenna
Measurements of signal distortions caused by harmonics
AM modulation depth measurements
Frequency counter
Noise marker
AM/FM audio frequency demodulator

Spectrum Analysis
Frequency
Frequency range	R&S ® ZVH4	100 kHz to 3.6 GHz
Frequency range	R&S ® ZVH8	100 kHz to 8 GHz
Frequency readout
Marker resolution		0.1 Hz
Accuracy		± (marker frequency × reference accuracy + 10 % × resolution bandwidth + ½ (span/(sweep points - 1) + 1 Hz)
Number of sweep (trace) points		631
Marker tuning frequency step size		span/630
Frequency counter resolution		0.1 Hz
Count accuracy	S/N > 25 dB	± (frequency × reference accuracy + ½ (last digit))
Frequency span		0 Hz, 10 Hz to 3.6/8 GHz
Maximum span deviation		±1 %
Spectral purity SSB phase noise		f = 500 MHz
Carrier offset	30 kHz	< -95 dBc (1 Hz), -105 dBc (1 Hz) (typ.)
	100 kHz	< -100 dBc (1 Hz), -110 dBc (1 Hz) (typ.)
	1 MHz	< -120 dBc (1 Hz), -127 dBc (1 Hz) (typ.)
Sweep time
Sweep time	span = 0 Hz	100 µs to 1000 s
	10 Hz ≤ span ≤ 600 MHz	20 ms to 1000 s
	span > 600 MHz	(20 ms × span/600 MHz) to 1000 s
Accuracy	span = 0 Hz	±1 %
Accuracy	span ≥ 10 Hz	±3 %
Bandwidths
Resolution bandwidths
Range	-3 dB bandwidth	1 Hz to 3 MHz in 1/3 sequence
Bandwidth uncertainty	1 Hz ≤ RBW ≤ 300 kHz	< 5 % (nom.)
Bandwidth uncertainty	RBW > 300 kHz	< 10 % (nom.)
Selectivity 60 dB:3 dB	Gaussian type filters	< 5 (nom.)
Video filters
	-3 dB bandwidth	1 Hz to 3 MHz in 1/3 sequence
