0 reviews | Catalog: 1323.2067.02 | Model: Rohde & Schwarz ZNL6-B1
extends the functionality of the R and S ZNL6 with a spectrum analysis function up to 6 GHz (retrofittable in R and S service)
Your Price: $9,455.00
Sign-in for EDU Pricing!
Thank you for your interest! Complete the form below and one of our support engineers will contact you directly to coordinate your product demonstration.
Name
Email Address
Phone Number
Which state are you located in?
Thank you!
We've received your request and will be in touch soon.
🤭 Oops there was an error processing your request. Please contact us by phone, chat or email to set-up your demo.
We accept purchase orders and all major credit cards. We also provide financing via Klarna at checkout for qualifying purchases.
Have a question or need to apply for payment terms?
Contact us.
Have a question? Ask an expert.
Different modes of operation turn the R&S ZNL vector network analyzer into a versatile multipurpose instrument. The B1 hardware option extends the base unit with a fully integrated spectrum analyzer on a dedicated hardware board. There is no need to reboot the instrument in order to switch between different modes.
This option provides dedicated hardware boards, delivering performance comparable to that of pure spectrum analyzers in the economy and midrange classes. The R&S ZNL equipped with the spectrum analyzer hardware features a phase noise of typ. -108 dBc (1 Hz) at 10 kHz offset, a third-order intercept point of typ. +20 dBm, and a displayed average noise level (DANL) of typ. -150 dBm.

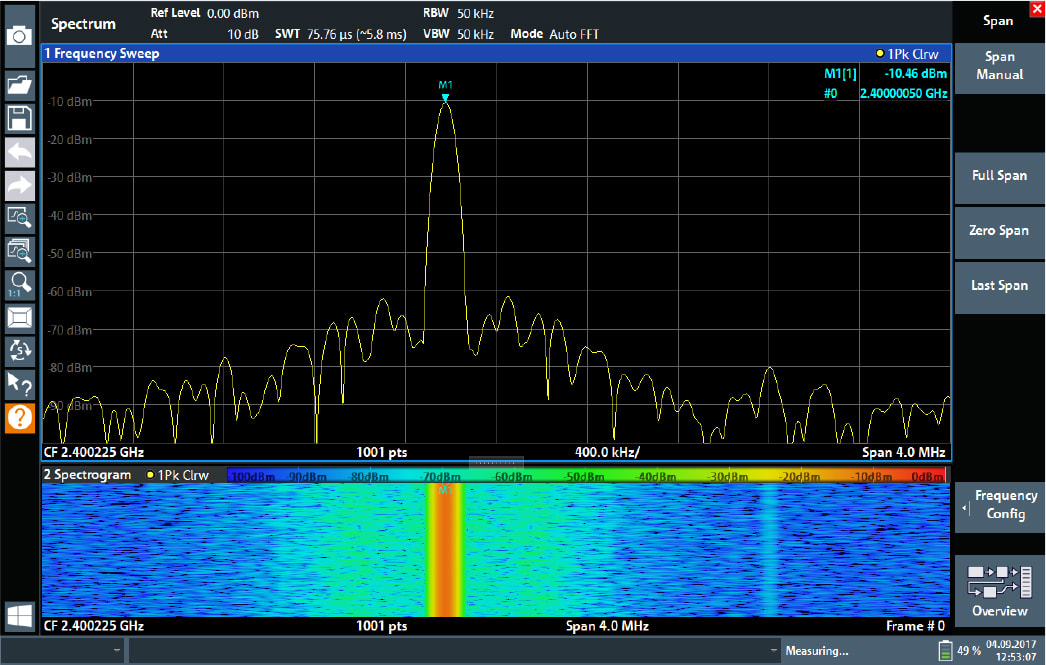

In the spectrum analyzer mode, the instrument provides functions corresponding to those of a conventional spectrum analyzer. The analyzer measures the frequency spectrum of the RF input signal over the selected frequency range with the selected resolution and sweep time. Alternatively, it displays the waveform of the video signal for a fixed frequency.
The spectrum analyzer function includes an I/Q analyzer, which is the standard function for digital signal analysis. This application provides measurement and display functions for I/Q data. The captured I/Q data can be transferred to third-party software tools (e.g. MATLAB or Python) for further analysis. The 40 MHz analysis bandwidth option (R&S FPL1-B40) allows single-carrier signals with up to 40 MHz bandwidth to be analyzed and demodulated.

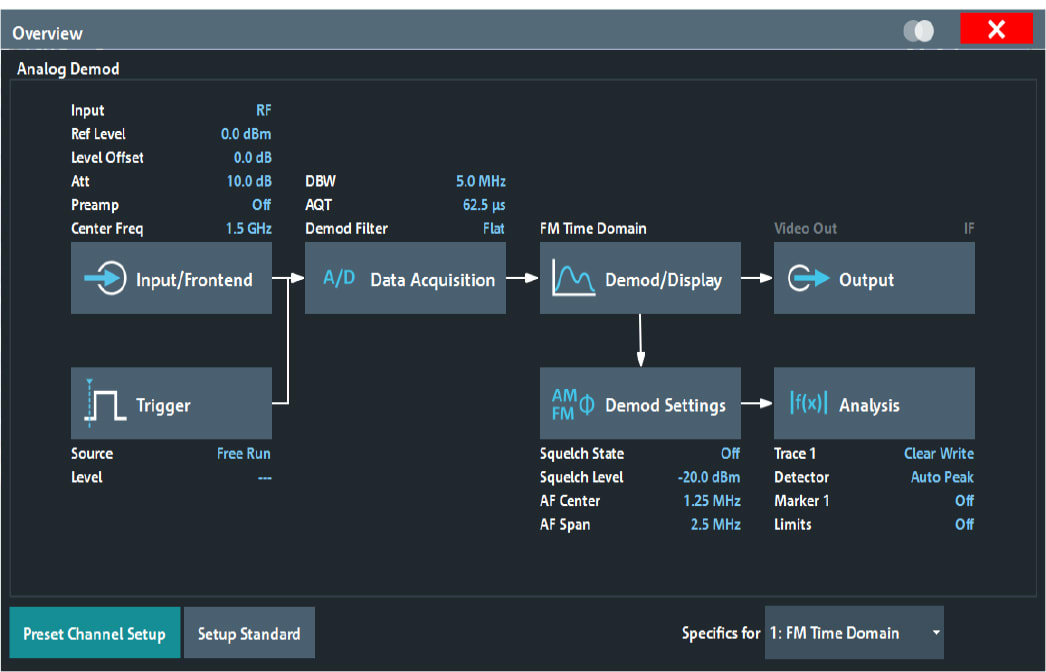

The R&S FPL1-K7 option adds analog demodulation capabilities to the R&S ZNL. It determines the characteristics of amplitude, frequency and phase modulated signals and also measures other components such as residual FM and synchronous modulation. Typical applications of the R&S FPL1-K7 include:
The R&S ZNL equipped with the -B1 option can analyze and demodulate digitally modulated single-carrier signals with up to 40 MHz analysis bandwidth. The R&S ZNL receives and digitizes the signal, which is then analyzed by the R&S VSE vector signal explorer software with the R&S VSE-K70 and/or R&S VSE-K106 option. The software runs directly on the R&S ZNL or an external PC.
